Taipan 100R5 Reusable Hose Fitting JIC Female 90° Elbow
Store/Reusable Fittings for Hydraulic Hose Straight, 90° & 45° Elbow Field Fit/'Trucker' 100R5 Field Fit Reusables
SKU DF04JF0790-21MM
AU$22.85
On Sale
was AU$28.56 Save 20%
Size / Thread
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Taipan 100R5 Reusable Hose Fitting JIC Female 90° Elbow
Store/Reusable Fittings for Hydraulic Hose Straight, 90° & 45° Elbow Field Fit/'Trucker' 100R5 Field Fit Reusables
Product Details
Brand: TAIPAN
Weight: 0.10 kg

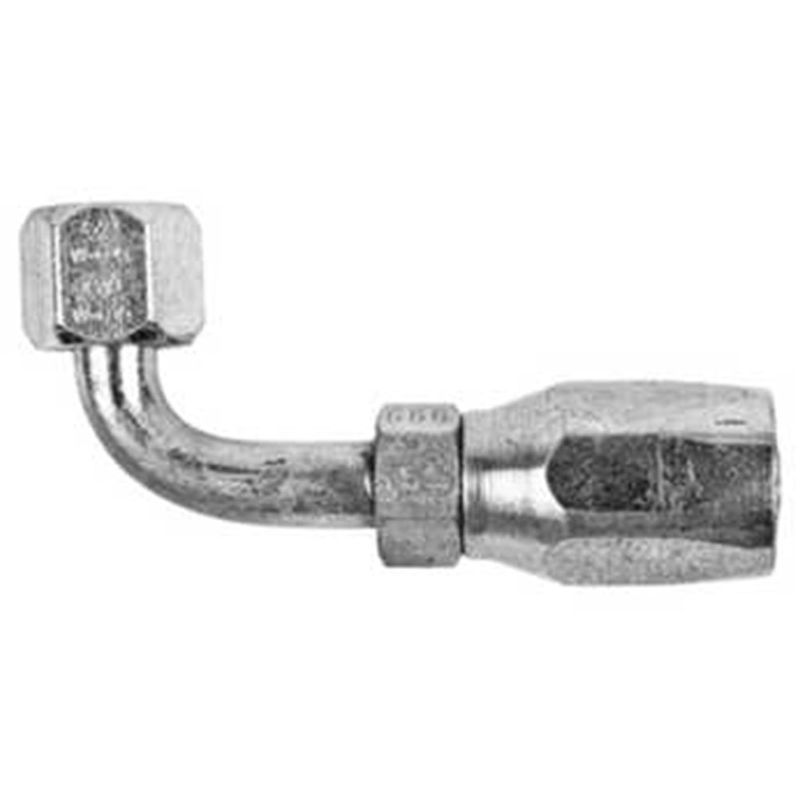

Taipan 100R5 Reusable Hose Fitting JIC Female 90° Elbow
Fix truck and marine hose on the spot: Taipan's complete reusable fittings for SAE 100R5 hi-temp hose screw straight onto the hose with two spanners - no crimper, no workshop. Every size from 3/16" to 1-7/8", in JIC, SAE and ORFS female plus NPT male, with 45° and 90° elbows.
Use the dropdown to choose your hose size and thread end.
Suits: SAE 100R5 truck and marine hose - engines, transmissions, air lines and hot oil circuits.
Sizes & Part Numbers
| Size / Thread | SKU |
|---|---|
| Hose Tail - (04) 3/16" x JIC Female - (07) 7/16" - 90° (DL 21mm) | DF04JF0790-21MM |
| Hose Tail - (06) 5/16" x JIC Female - (09) 9/16" - 90° (DL 23mm) | DF06JF0990-23MM |
| Hose Tail - (08) 13/32" x JIC Female - (12) 3/4" - 90° (DL 31mm) | DF08JF1290-31MM |
| Hose Tail - (08) 13/32" x JIC Female - (14) 7/8" - 90° (DL 34mm) | DF08JF1490-34MM |
| Hose Tail - (10) 1/2" x JIC Female - (14) 7/8" - 90° (DL 34mm) | DF10JF1490-34MM |
| Hose Tail - (12) 5/8" x JIC Female - (17) 1 1/16" - 90° (DL 53mm) | DF12JF1790-53MM |
| Hose Tail - (16) 7/8" x JIC Female - (21) 1 5/16" - 90° (DL 70mm) | DF16JF2190-70MM |
| Hose Tail - (20) 1-1/8" x JIC Female - (26) 1 5/8" - 90° (DL 85mm) | DF20JF2690-85MM |
| Hose Tail - (24) 1-3/8" x JIC Female - (30) 1 7/8" - 90° (DL 110mm) | DF24JF3090-110MM |
| Hose Tail - (32) 1-7/8" x JIC Female - (40) 2 1/2" - 90° (DL 136mm) | DF32JF4090-136MM |
Technicians Advice
These are complete units with the reusable socket built in - no separate ferrule needed. Cut the hose square, oil the nipple thread, wind the socket on anti-clockwise until it bottoms, then screw the nipple home. Reusable means exactly that: unscrew and re-use the fitting when the hose retires.
Official Datasheets
📄 Taipan Accessories Catalogue
The matching hose is on our 100R5 High Temp Hose listing. Brennan-pattern R5 reusables are on the Ayrtec R5 listing.
Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.
Need a size you can't see here? Call us on 1300 146 737 or email sales@mhfgc.com.au.
