Swivel Foot Mount for AG Hydraulic Cylinder Rods, 1-1/4" and 1-1/2" UNF Thread

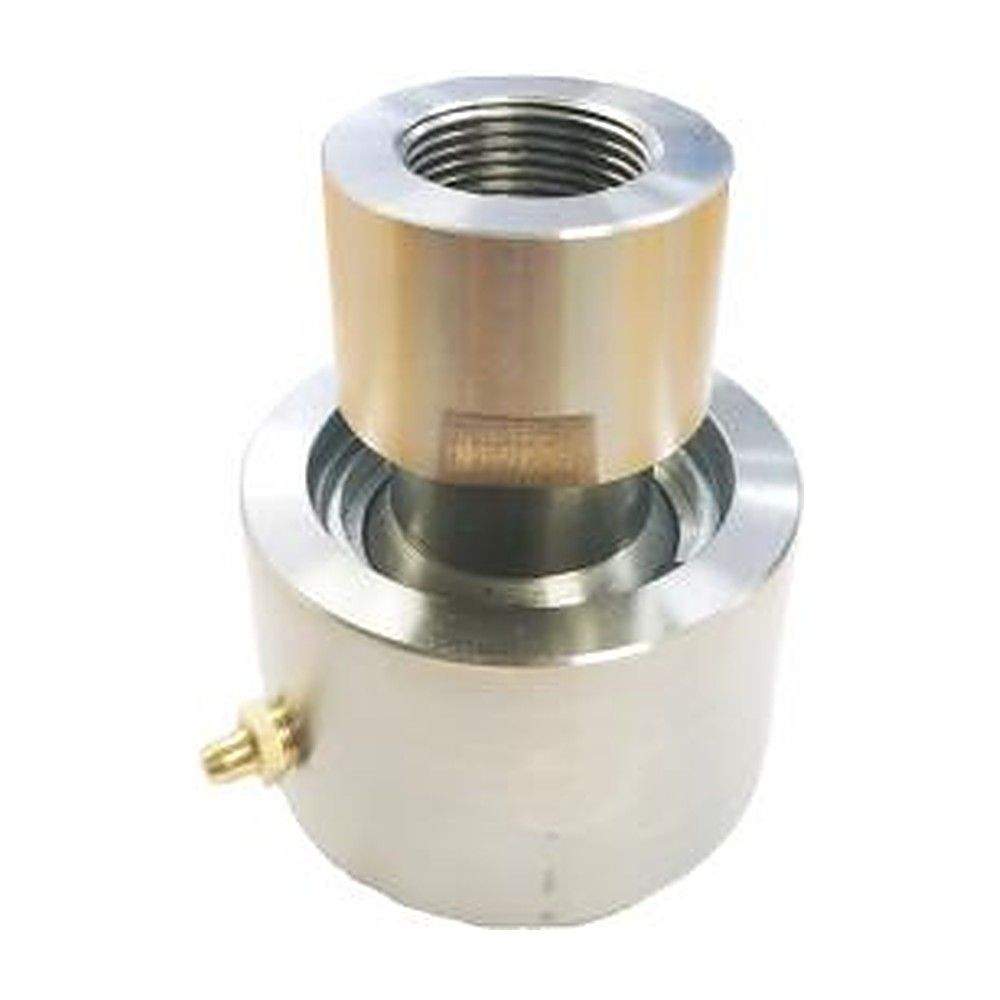

A ball swivel that screws onto the rod in place of the clevis. Weld a foot plate of your own size to the bottom and the ball lets the plate sit flat on uneven ground. It is the part you want for stabiliser legs, outriggers, jacking legs and anything that pushes down onto dirt or a slope.

Ways to buy this part:

• Two rod threads off the shelf.
• Foot plate not supplied. You weld on the size and shape your job needs.
• Call us for other threads.

Pick your thread

What is in the box

• 1 x swivel foot mount, supplied as parts, not assembled.
• 1 x grease nipple.
• No grub screw or insert. Foot plate not included.

Specifications

How to choose

• Match the rod thread: 1-1/4" UNF for 2" to 4" bores, 1-1/2" UNF for 5" bores.
• Size your foot plate for the ground. Soft ground needs a bigger plate to stop the leg sinking.
• See the dimension drawing in the photos before you design the plate.

Technicians Advice

Weld the foot plate to the lower half with the ball assembly out of it, then let it cool before you put it together. Heat near the ball and the grease will cook and the seat can distort. Tack it square, weld it in short runs and keep the plate flat. Once it is together, pack it with grease. A swivel foot is not meant to take side load while the cylinder is extending, so keep the leg near vertical when it takes the weight.

Complete your setup

Express shipping Australia-wide. We dispatch to every state and territory, plus regional and remote sites.

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au. Real technicians, real answers.
