Steel Male Clevis Plate for AG Cylinders from 1.5 inch - 5inch Bores

Steel Male Clevis Plate for AG Cylinders from 1.5" - 5" Bores

Store/Cylinders and Rams for Hydraulics/Cylinder Safety & Accessories

SKU MCP

AU$111.95

🔥 EOFY SALE!

Size

HC075 Each

HC100 Each (+AU$22.00)

HC125 Each (+AU$141.00)

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

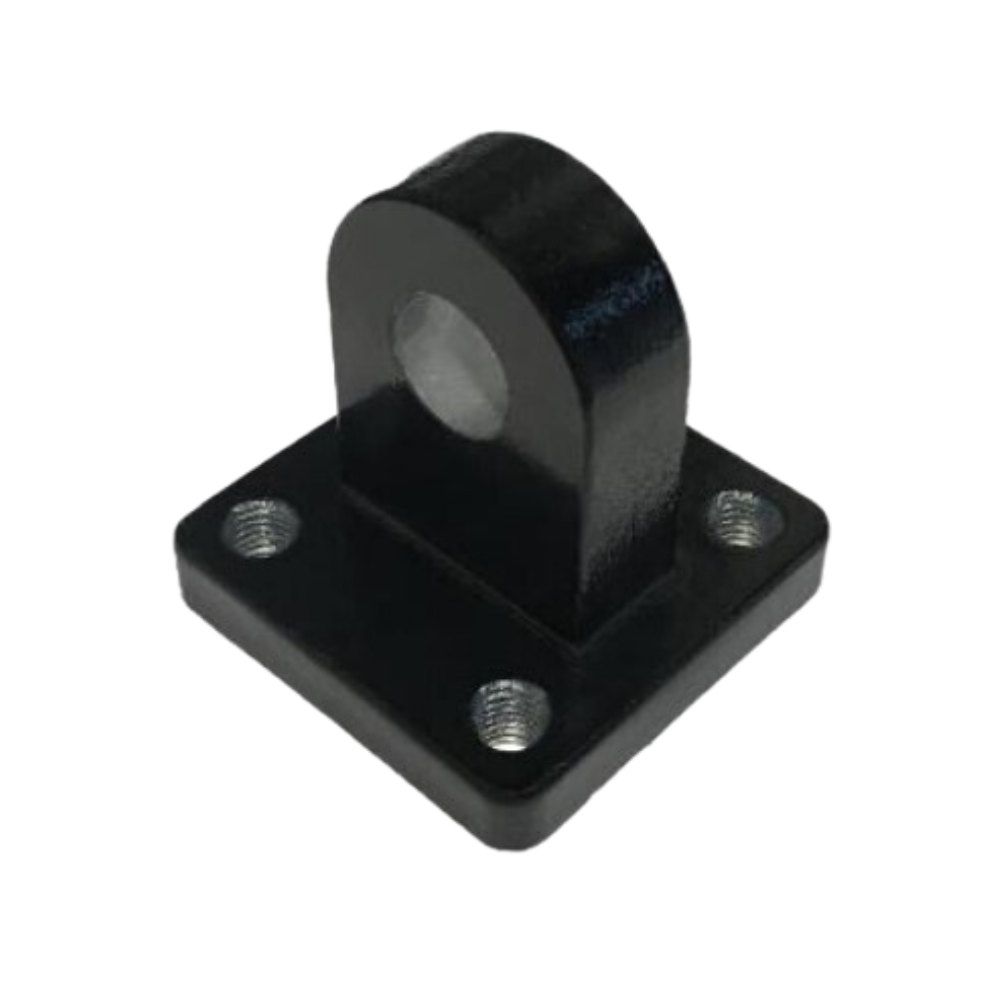

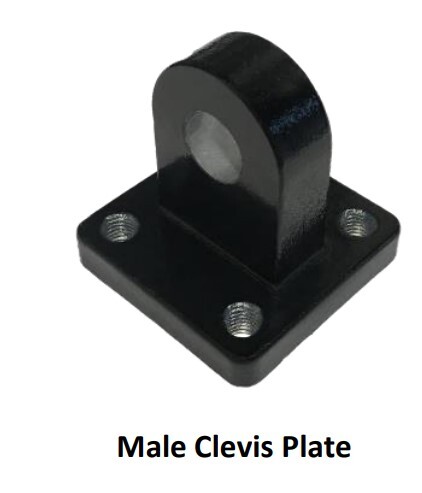

Steel Male Clevis Plate for AG Cylinders from 1.5" - 5" Bores

Store/Cylinders and Rams for Hydraulics/Cylinder Safety & Accessories

Product Details

These Steel Male clevis plates will allow you to easily bolt down (or weld on) & mount your AG style cylinders to transfer the loads to a piece of machinery.
They suit various bore sizes & we have them to suit 3/4", 1" & 1.1/4" pin sizes. Price is per end. To set up as per photo, you will require two. Cylinder in photo is not included, just to illustrate usage. These suit both our TAG & AG ranges of AG cylinders.

HC 75 = 3/4" PIN

HC 100 = 1" PIN

HC 125 = 1.1/4" PIN

Male Clevis Plate not supplied with mounting screws or pins.

It is manufactured from Cast Steel and can be welded.

Check Maximum Force chart. Hydraulic forces are extreme. The lower force number of the two applies.
