STUCCHI VD Series Screw Together Couplers ISO 14541

Store/Couplers Quick Connect for Oil/Water/Quick Connect Poppet & Screw-Together Couplers

Product Details

Brand: AHF

Weight: 2.00 kg

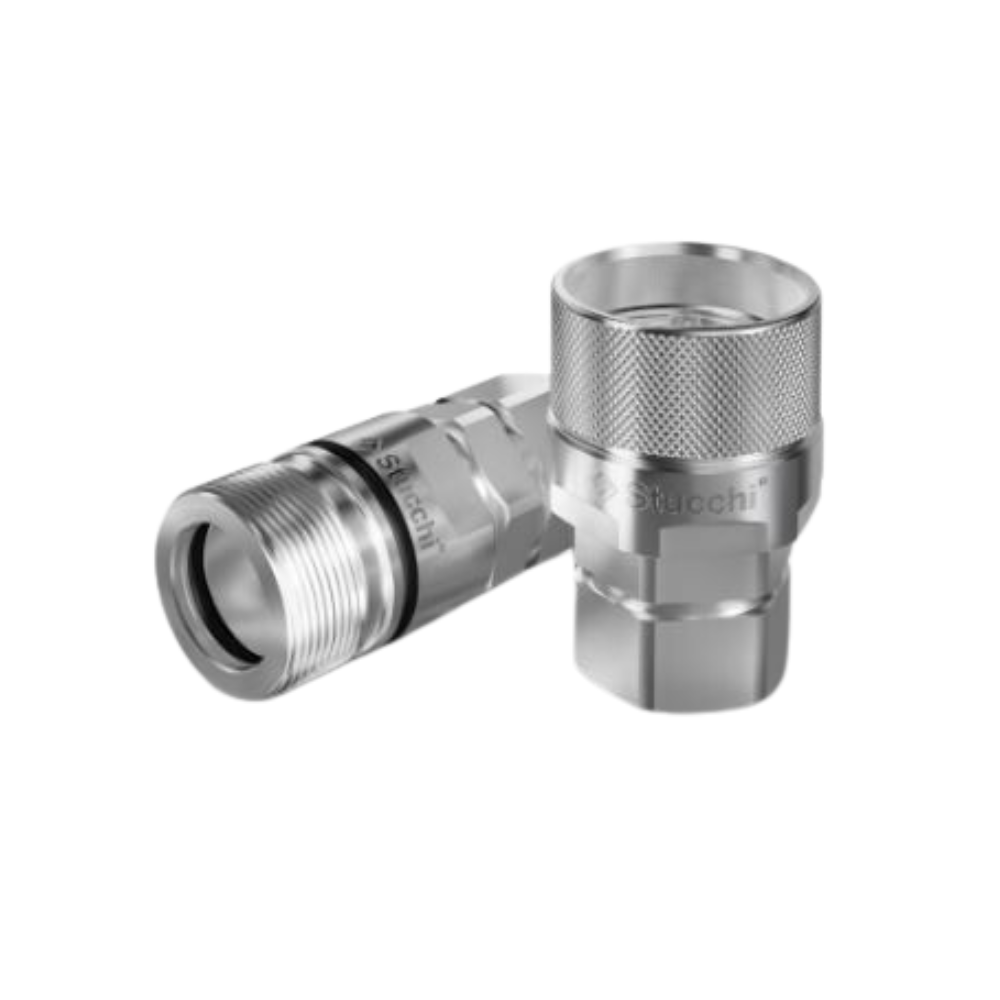

STUCCHI VD Series Screw Together Couplers

The VD series is a steel screw together coupling

available in sizes 1/4” to 1-1/2”. Price is for 1 x Female, 1 X Male, Suitable for heavy duty applications where the mechanical advantage of the screw thread is required. This series is often found on European mobile equipment. Many metric threads available. Connect with up to 100barresidual pressure in one side only.

Ever had trouble reconnecting your attachment to a machine because of residual system pressure, or the attachment has been left in the sun all day and has built up pressure due to heat

Conform to ISO 14541

Compatible Parker QHPA, Faster CVV, Ryco R120,

TCH65

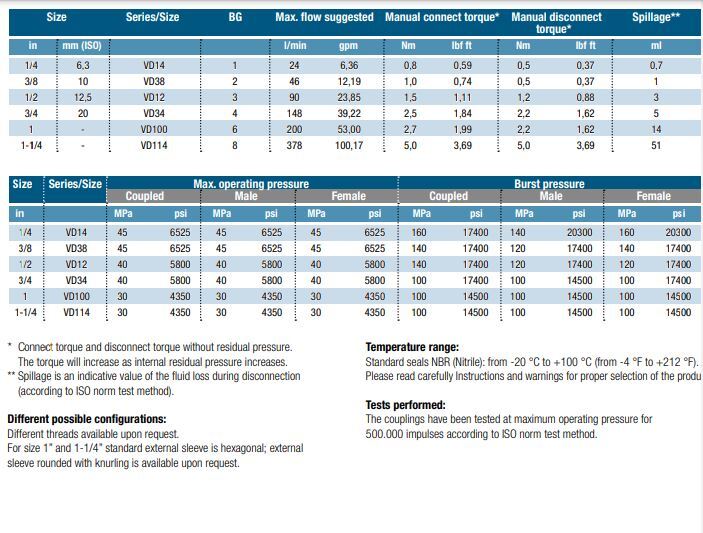

IMPORTANT! Do not exceed maximum flows!

BENEFITS

• Connection is allowed with residual pressure in one side of the coupling

(max 10 MPa in one side).

• The poppet valve with elastomer seal provides maximum sealing of the

couplings when disconnected.

• Shape of internal parts is designed to reduce turbulence and pressure drop.

• The modular design allows for broad range of port configurations.

• External o-ring indicates if the product is fully connected, prevent accidental

disconnection and protect coupling against dirt.

• Male body sealing surface protected by the threaded sleeve.

• High resistance to pressure impulses.

• Compact design.

• Simple to use.

HOW TO USE

• Before to connect, clean the mating surface of the couplings to avoid dirt

inclusion in the circuit.

• To connect insert the male coupling in the female coupling, screw the sleeve

till its positive stop, do not push together the couplings, screw only.

• The use of tools for the second part of the connection can be necessary if

there is high residual pressure in the circuit.

• Check that the external O-ring is fully covered.

• To disconnect unscrew totally the sleeve from the female coupling.
