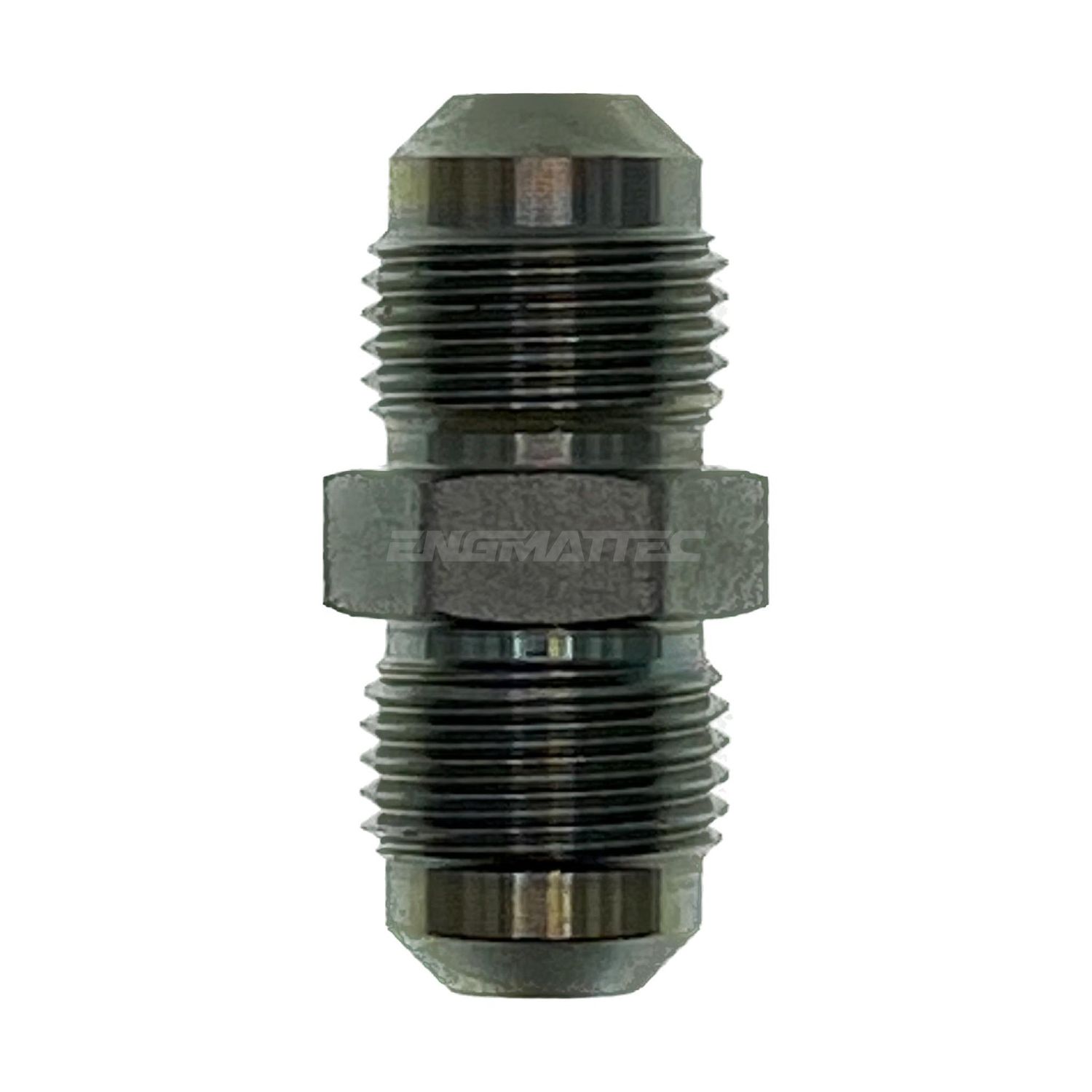

SAE 45° Flare Male x SAE 45° Flare Male Straight Adaptor

SAE 45° flare both ends. Used on refrigeration, LPG, fuel and older automotive lines where the shallower 45° cone is the standard rather than the 37° JIC.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• SAE 45° Flare Male – SAE J512 45° flare. It seals metal-to-metal on the 45° cone, which is shallower than a JIC 37°.

How to Choose

• A 45° and a 37° look near enough the same in the hand. Hold the two cones nose to nose and the difference shows.
• A 45° male pulled into a 37° female will hold for a while then fret the seat and fail.
• The flare does the sealing, so nothing goes on the thread.

Technicians Advice

The 45° seat is shallow and soft and does not tolerate being nipped up hard. Wind it to a firm feel and stop. Once a 45° seat is bruised or scored it will never seal properly again, so replace the fitting rather than trying to lap it in.

Where You’ll Find It

• SAE 45° Flare Male – Refrigeration, LPG and some light automotive and agricultural lines.

Cross-Reference

• SAE 45° Flare Male – SAE J512 45° flare. Shallower cone than JIC 37° and must not be mixed with it.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L	H1	Material	Finish
SAM-SAM-1010	38mm	17mm	Mild steel	Plated finish

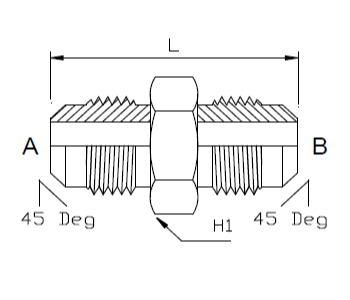

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
