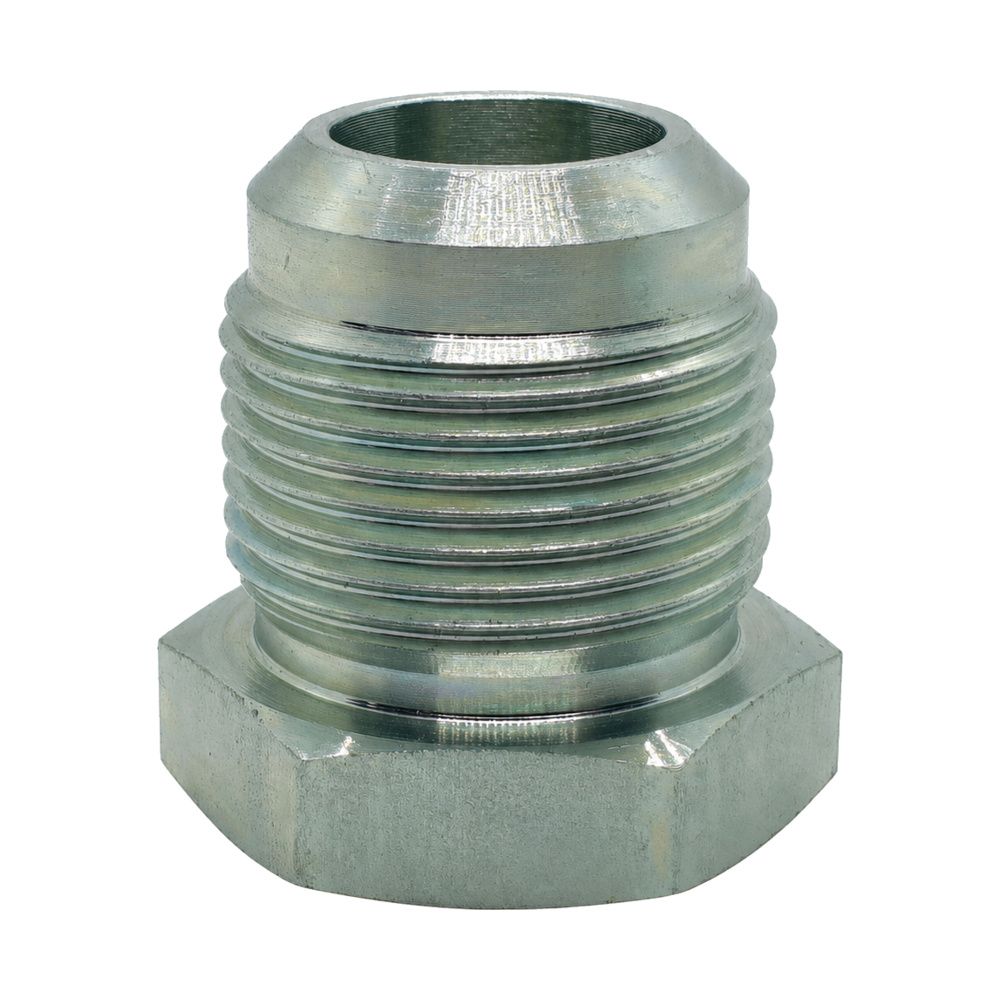

SAE 45° Flare Male Blanking Plug

An SAE 45° flare plug for blanking connections on refrigeration, LPG, fuel and older automotive lines.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• SAE 45° Flare Male – SAE J512 45° flare. It seals metal-to-metal on the 45° cone, which is shallower than a JIC 37°.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• A 45° flare and a 37° JIC look near enough identical. Put the two cones nose to nose to tell them apart.
• The flare seals, not the thread, so nothing goes on the thread.

Technicians Advice

The 45° seat is shallow and soft. Wind it to a firm feel and stop, and if the seat is marked replace the plug rather than trying to make it seal, because a bruised 45° cone never comes good.

Where You’ll Find It

• SAE 45° Flare Male – Refrigeration, LPG and some light automotive and agricultural lines.

Cross-Reference

• SAE 45° Flare Male – SAE J512 45° flare. Shallower cone than JIC 37° and must not be mixed with it.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	L	H	Material	Finish
SAM-10	5/8" SAE	22mm	16mm	Mild steel	Plated finish
SAM-17	1.1/16" SAE	34mm	30mm	Mild steel	Plated finish

Key: L overall length, H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
