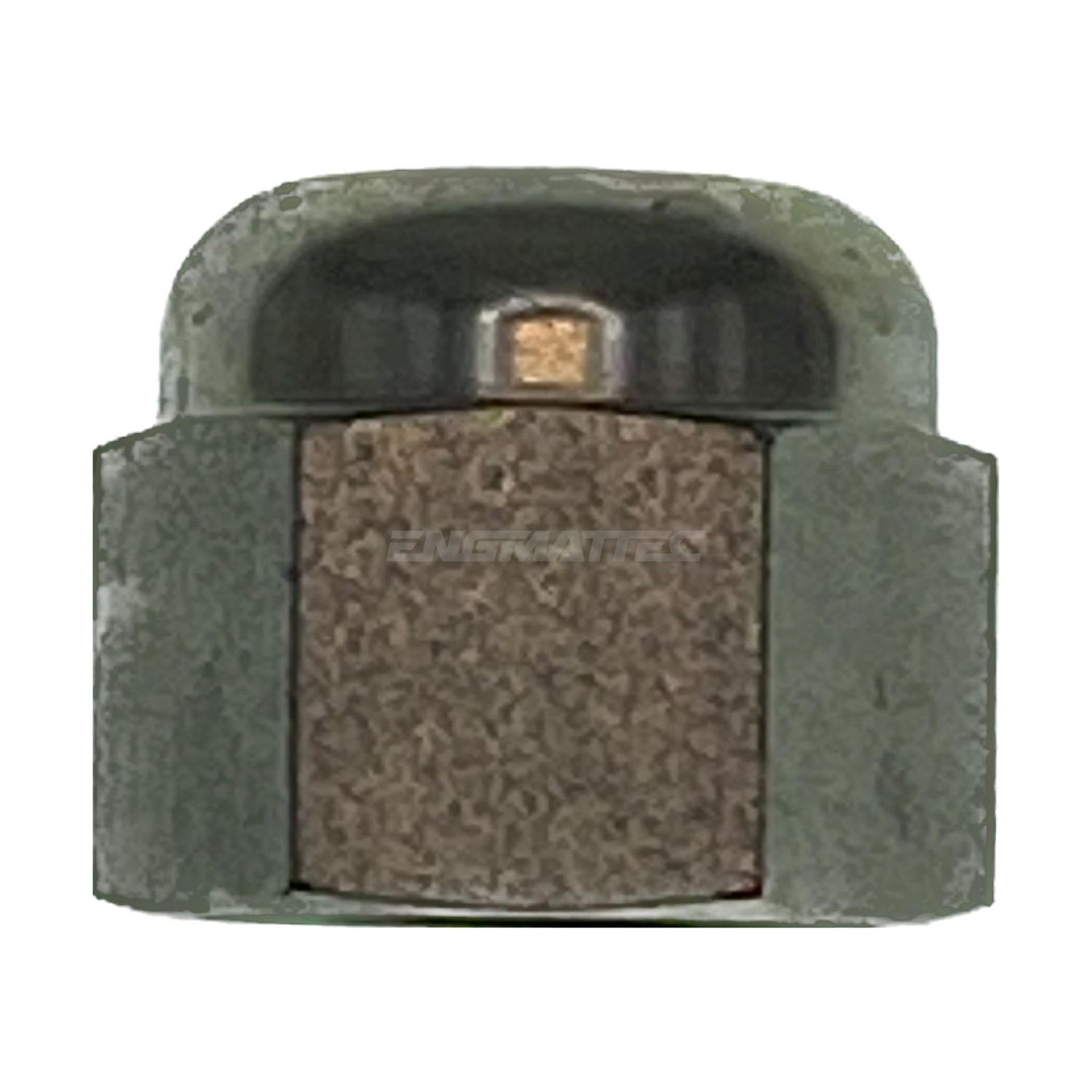

SAE 45° Flare Female Cap

An SAE 45° flare cap for covering an exposed 45° male end on refrigeration, LPG, fuel and older automotive lines.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• SAE 45° Flare Female – SAE J512 45° flare. It seals on the mating 45° cone and must not be paired with a JIC 37° fitting.

How to Choose

• A cap is female and covers a male end. A plug is male and blocks a female port. Check which the open connection is before you order.
• A 45° and a 37° look alike. Nose the two cones together if you are unsure which you have.
• The flare seals, not the thread.

Technicians Advice

Wind it to a firm feel and no more. The 45° seat is shallow and soft, and a cap done up hard can mark the very cone you are trying to protect.

Where You’ll Find It

• SAE 45° Flare Female – Female side of 45° flare lines on refrigeration and light automotive work.

Cross-Reference

• SAE 45° Flare Female – SAE J512 45° flare.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	L	H	Material	Finish
SAF-10	5/8" SAE	–	20.6mm	Mild steel	Plated finish
SAF-17	1.1/16" SAE	34mm	30mm	Mild steel	Plated finish

Key: L overall length, H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
