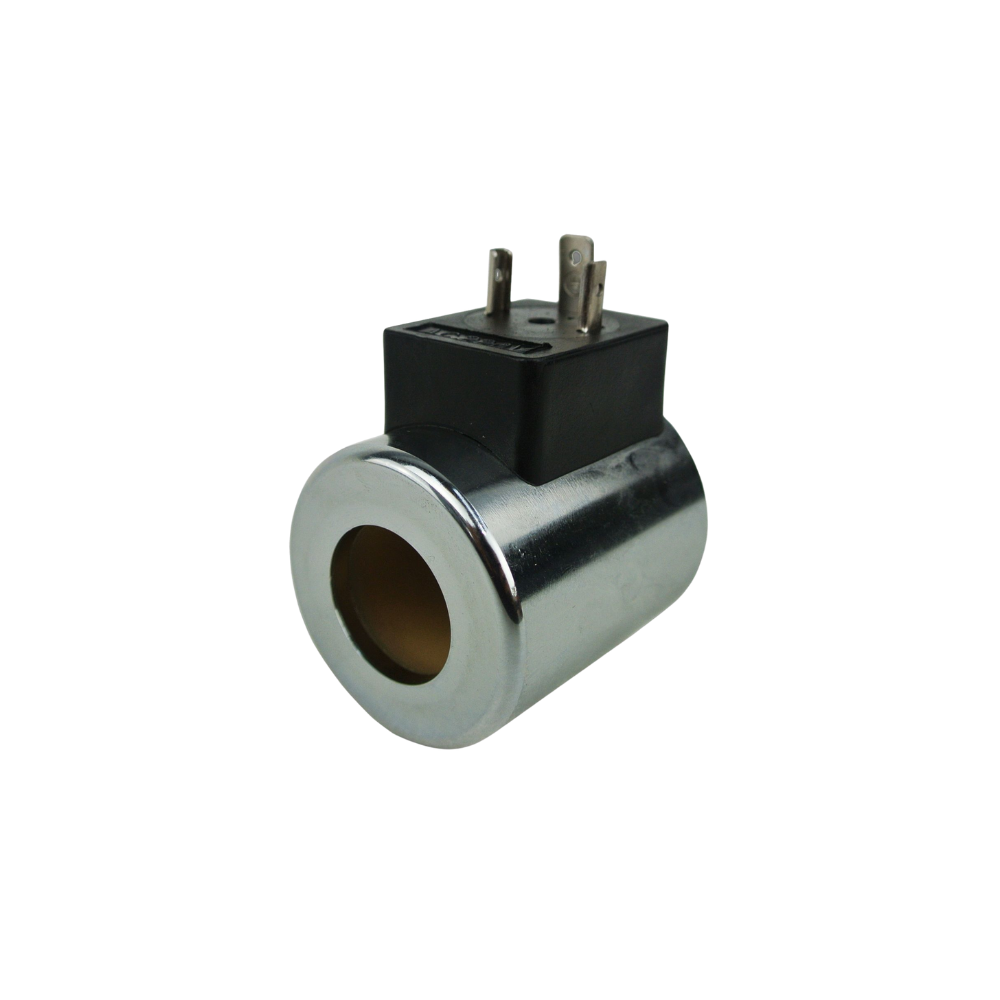

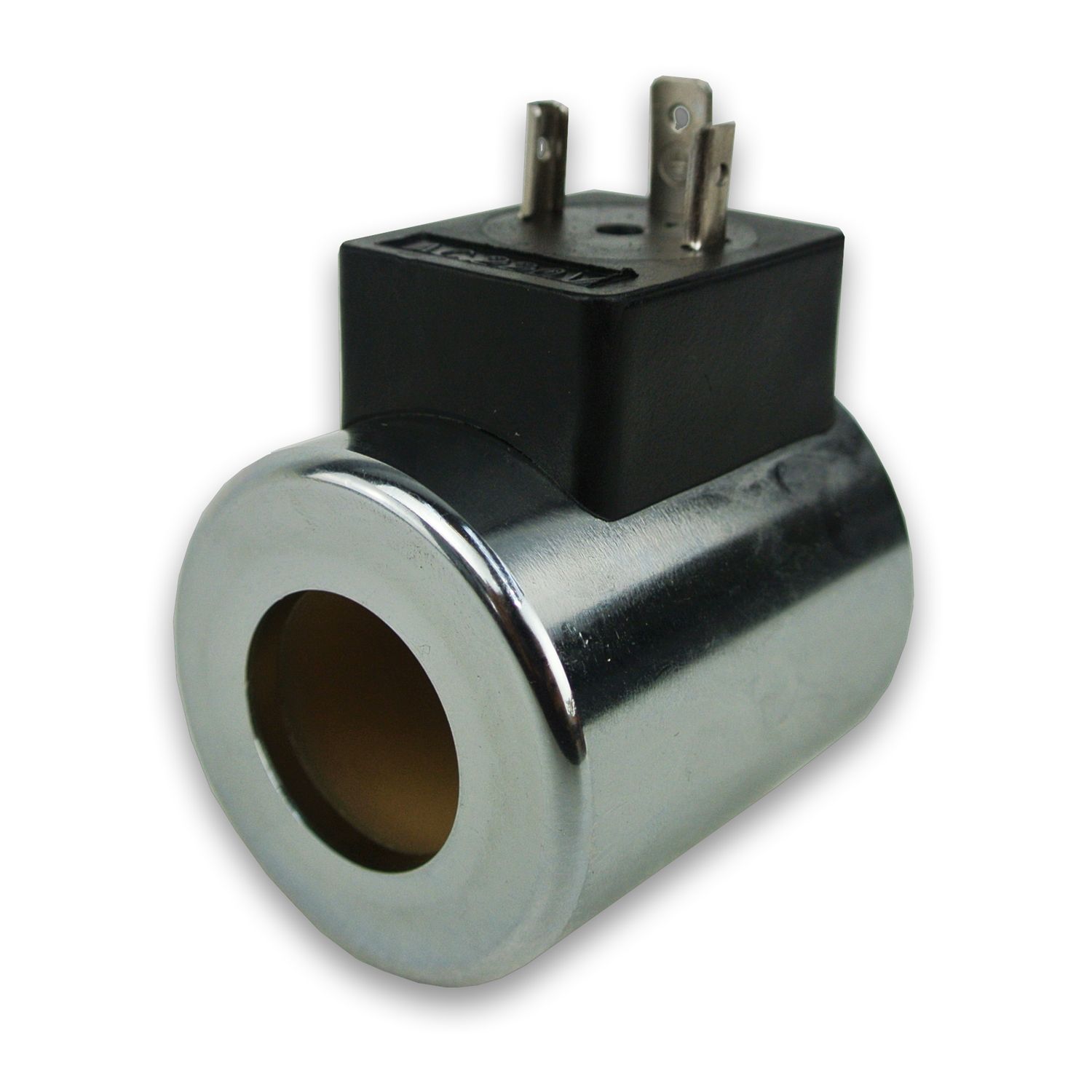

Solenoid Coil CETOP 5 (NG10) - 12V 24V 110V 240V - Suits 4WE10 Valves

Replacement solenoid coils for CETOP 5 / NG10 directional control valves (4WE10 pattern) - the big brother of the CETOP 3 coil, used on higher-flow banks and power units.

Use the dropdown to choose your coil. All prices include GST.

Suits: CETOP 5 (NG10) solenoid valves with a 31.4mm armature tube - 4WE10, Rexroth WE10 pattern and most NG10 valves. DIN 43650-A connector.

Sizes & Part Numbers

How to Identify Your Coil or Plug

• Measure the hole: 31.4mm = CETOP 5 (this listing). 23mm = CETOP 3 - see our CETOP 3 listing.
• Coil length 63.2mm, outside diameter 74.0mm.
• Voltage: for 110V/240V AC supply use the 99V/198V DC coil with a rectifier DIN plug.

Technicians Advice

If a 3-position valve stops centring, check BOTH coils before condemning the valve - a shorted coil can back-feed. Measure coil resistance: a 12V DC coil should read roughly 4-8 ohms; open circuit means dead coil, near-zero means shorted. Fit the DIN plug gasket - most coil failures start as water ingress at the plug.

Official Datasheets

📄 DIN Plugs & Connectors

Please note: as electrical items, solenoid coils and DIN plugs are non-returnable once supplied per our terms & conditions. Use the identification guide above or call us on 1300 146 737 before ordering if unsure.
