Pump Side Coupling Halves for SAE Pumps - Keyed and Splined
SKU SGEA01H09019FG
AU$26.36
Bulk pricing available for quantities of 5 units or more
Pump / Shaft / Series
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 5 items | AU$25.04 | 5% off |
| 10 items | AU$23.72 | 10% off |
| 25 items | AU$23.06 | 13% off |
| 50 items | AU$22.41 | 15% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Pump Side Coupling Halves for SAE Pumps - Keyed and Splined
Product Details
Weight: 0.34 kg

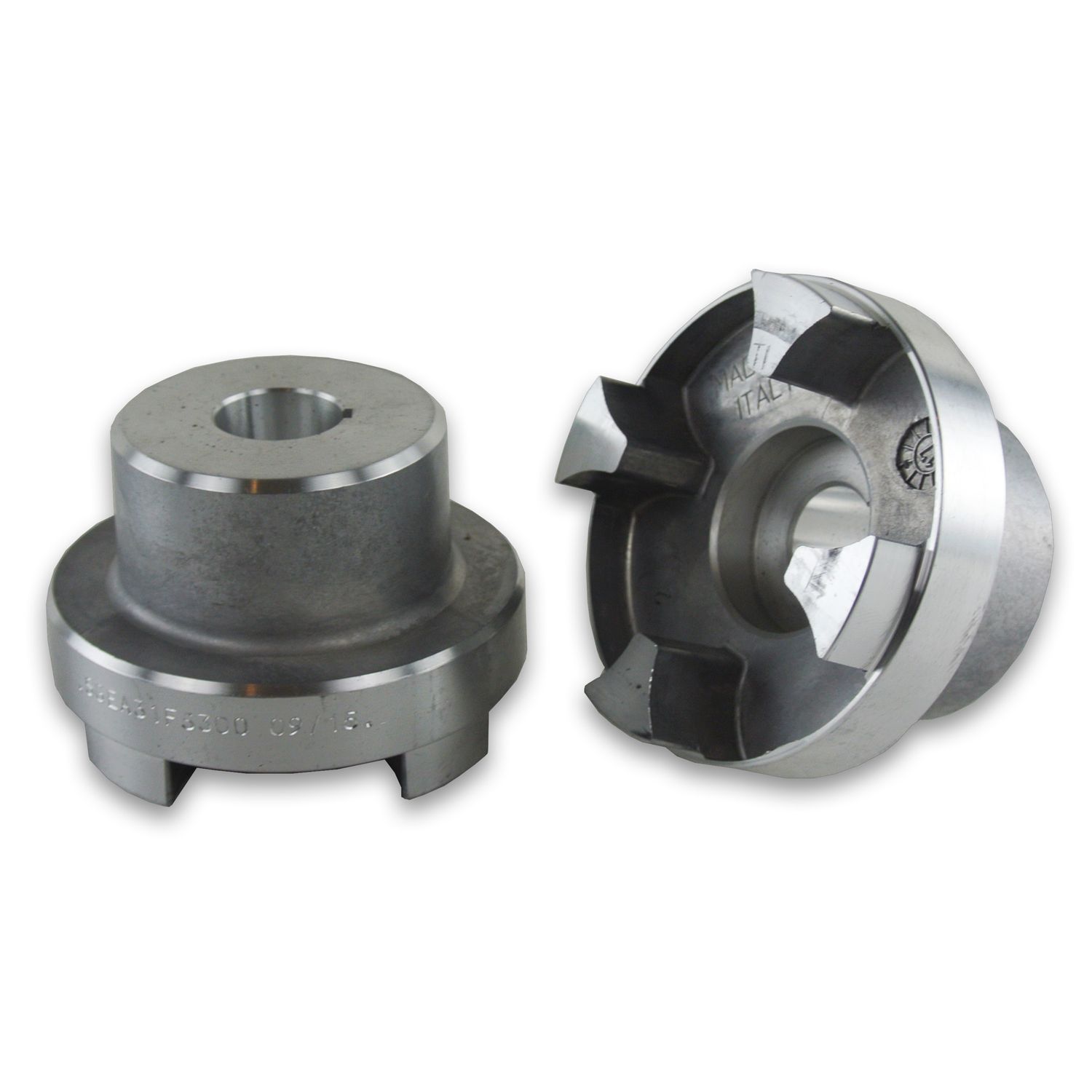

Pump Side Coupling Halves - SAE Pumps (Keyed & Splined)
The half that fits your SAE-shaft pump - keyed and splined bores, aluminium and cast iron, series 0 to 6.
Remember - a complete drive needs four parts: bellhousing + motor-side half + pump-side half + rubber element. This listing covers one of them; the others are linked below.
Use the dropdown to choose. All prices include GST.
Suits: SAE AA, A, B & C pumps with keyed shafts 1/2in-1-1/4in or splined shafts 9T to 15T.
Sizes & Part Numbers
| Pump / Shaft | SKU |
|---|---|
| SAE AA (Group 1) - 1/2in Keyed - Series 0 | SGEA01H09019FG |
| SAE A - 5/8in Keyed - Series 0 | SGEA01H06019FG |
| SAE AA (Group 1) - 1/2in Keyed - Series 2 | SGEA21H09023FG |
| SAE A - 5/8in Keyed - Series 2 | SGEA21H06023FG |
| SAE A - 5/8in Keyed Long - Series 2 | SGEA21L00050FG |
| SAE A - 3/4in Keyed - Series 2 | SGEA21G01050FG |
| SAE B - 7/8in Keyed - Series 2 | SGEA21G020502EFG |
| 16mm Keyed - Series 2 | SGEA21C020502HFG |
| SAE A - 5/8in Keyed - Series 3 | SGEA31L00040FG |
| SAE AA - 3/4in Keyed - Series 3 | SGEA31G01040FG |
| SAE B - 7/8in Keyed - Series 3 | SGEA31G020502EFG |
| 16mm Keyed - Series 3 | SGEA31C03040FG |
| SAE A - 9T Spline - Series 4 Cast | SGEG40PD0540 |
| SAE A/B - 11T Spline - Series 4 Cast | SGEG40PD0635 |
| SAE B - 13T Spline - Series 4 Cast | SGEG40PD0835 |
| SAE A - 10T Spline - Series 4 Cast | SGEG40PD3640 |
| SAE B-B - 15T Spline - Series 4 Cast | SGEG40PD0930 |
| SAE B - 7/8in Keyed - Series 5 | SGEA51G020502EFG |
| SAE B - 1in Keyed - Series 5 | SGEA51G040502FFG |
| SAE C - 1-1/4in Keyed - Series 5 | SGEA51G060502G |
| SAE B - 13T Spline 50L - Series 6 Cast | SGEG60PD08050 |
| SAE B - 7/8in Keyed - Series 6 Cast | SGEG60G020702E |
| SAE B - 13T Spline 60L - Series 6 Cast | SGEG60PD08070 |
| SAE C - 1-1/4in Keyed - Series 6 Cast | SGEG60G060652G |
| SAE C - 14T Spline 65L - Series 6 Cast | SGEG60PD02065 |
| SAE C - 14T Spline 50L - Series 6 Cast | SGEG60PD02050 |
| SAE A - 5/8in Keyed - 65 Series | ND65QD10 |
How to Choose
- SAE pump size (AA/A/B/C) and shaft type: keyed (measure diameter) or splined (count the teeth: 9T 5/8in, 11T 3/4in, 13T 7/8in, 14T 1-1/4in, 15T 1in).
- Series must match your motor-side half and element.
Technicians Advice
Splined hubs: grease with moly paste before fitting - dry splines fret and strip under reversing loads. Keyed hubs get the grub screw ON the key with thread-locker. Check spline engagement is at least 1x shaft diameter. Series by torque as per the motor-side listing.
Official Datasheets
Complete Your Drive
⭐ Complete Drive Kits - One Pick⚙ Bellhousings DIN⚙ Bellhousings SAE⚙ Engine Bellhousings⚙ Motor Side Halves⚙ Pump Side DIN⚙ Pump Side SAE⚙ Elements⚙ Flywheel Couplings⚙ Accessories
Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.
Not sure which combination you need? Call us on 1300 146 737 or email sales@mhfgc.com.au with your motor and pump details - we will spec the full drive for you.
