Pump Side Coupling Halves for DIN Gear Pumps Group 05 1 2 3

Store/Engines Petrol / Diesel/Bell Housings and Drive Couplers for Engines Pumps Gearboxes

SKU SGEA01FS05M

AU$8.91

Bulk pricing available for quantities of 5 units or more

Pump Group / Shaft / Series

Please choose

In stock

Quantity:

Buy more, save more

Quantity	Price per item	Discount
5 items	AU$8.46	5% off
10 items	AU$8.02	10% off
25 items	AU$7.80	12% off
50 items	AU$7.57	15% off

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

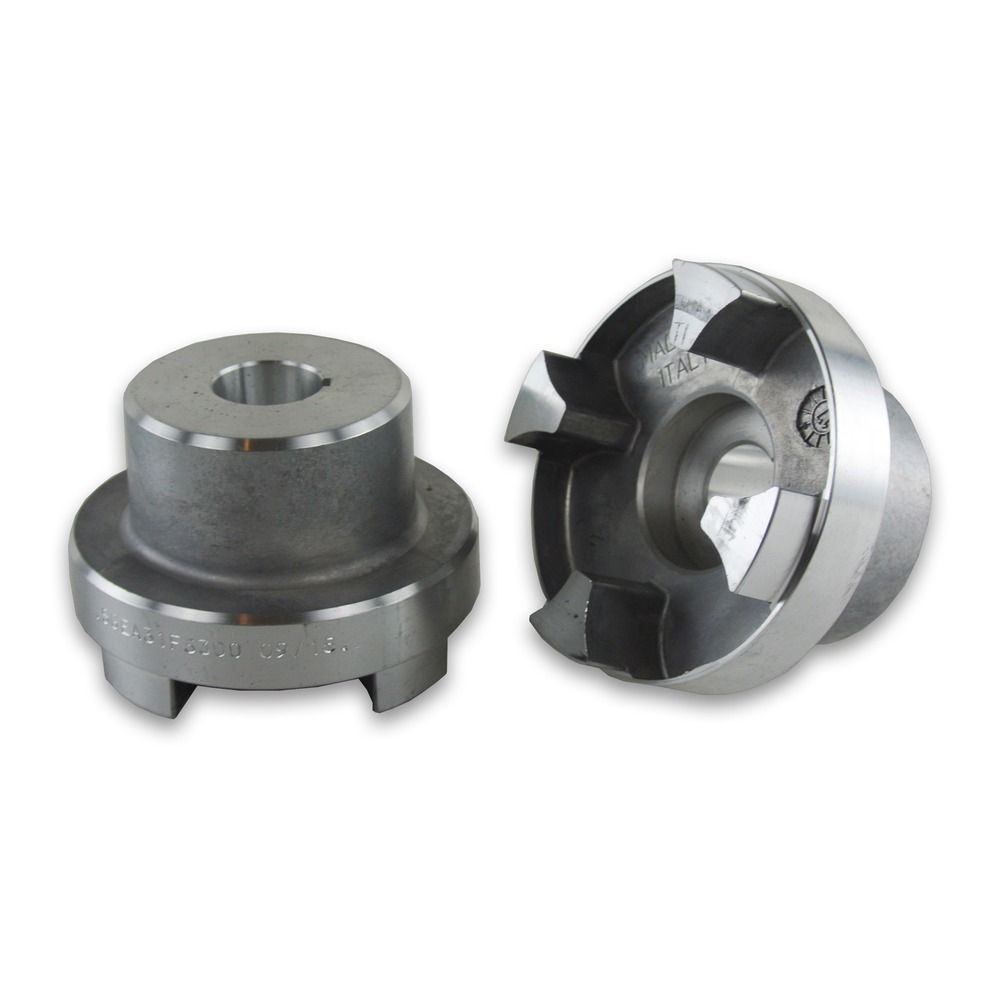

Pump Side Coupling Halves for DIN Gear Pumps Group 05 1 2 3

Store/Engines Petrol / Diesel/Bell Housings and Drive Couplers for Engines Pumps Gearboxes

Product Details

Weight: 0.32 kg

Pump Side Coupling Halves - DIN Gear Pumps

The half that fits your DIN gear pump shaft - Groups 05 to 3, taper shafts, aluminium and cast iron, series 0 to 6.

Remember - a complete drive needs four parts: bellhousing + motor-side half + pump-side half + rubber element. This listing covers one of them; the others are linked below.

Use the dropdown to choose. All prices include GST.

Suits: DIN gear pumps Group 05, 1, 2 & 3 with 1:8 or 1:5 taper shafts.

Sizes & Part Numbers

Pump / Shaft	SKU
Group 05 - 6mm Shaft - Series 0	SGEA01FS05M
Group 05 - 7mm Shaft - Series 0	SGEA01FS05C
Group 1 - 1:8 Taper - Series 0	SGEA01FS100
Group 1 - 1:8 Taper - Series 2	SGEA21FS100
Group 2 - 1:5 Taper - Series 2	SGEA21FSZFR
Group 2 - 1:8 Taper - Series 2	SGEA21FS200
Group 3 - 1:8 Taper - Series 2	SGEA21FS300
Group 2 - 1:5 Taper - Series 3	SGEA31FSZFR
Group 2 - 1:8 Taper - Series 3	SGEA31FS200
Group 3 - 1:8 Taper - Series 3	SGEA31FS300
Group 2 - 1:8 Taper - Series 5	SGEA51FS200
Group 3 - 1:8 Taper - Series 5	SGEA51FS300
Group 3 - 1:8 Taper - Series 6 Cast	SGEG60FS300
Group 1 - 1:8 Taper - 48 Series	ND48PU1P
Group 1 - 1:8 Taper - 65 Series	ND65PU1P
Group 2 - 1:8 Taper - 65 Series	ND65P2

How to Choose

Pump group (05/1/2/3) from the pump spec.
Shaft: most DIN gear pumps are 1:8 taper; European Vivoil-pattern Group 2 can be 1:5 taper - measure or check the pump datasheet.
Series must match your motor-side half and element.

Technicians Advice

Taper halves must seat DRY on a clean taper - no grease, or the hub walks and shears the key. Torque the shaft nut properly (Group 2 taper nut approx 60-80Nm) and re-check after the first hour of running. The dual-key 1:8 Group 2 halves fit both 3.2mm and 4mm key pumps.

Official Datasheets

📄 Pump Side DIN Spec Sheet

Complete Your Drive

⭐ Complete Drive Kits - One Pick ⚙ Bellhousings DIN ⚙ Bellhousings SAE ⚙ Engine Bellhousings ⚙ Motor Side Halves ⚙ Pump Side DIN ⚙ Pump Side SAE ⚙ Elements ⚙ Flywheel Couplings ⚙ Accessories

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Not sure which combination you need? Call us on 1300 146 737 or email sales@mhfgc.com.au with your motor and pump details - we will spec the full drive for you.
