Plastic Hydraulic Caps - BSP, JIC and ORFS

Push-on plastic caps for covering male ends and hose tails while a machine is apart, in transit or in storage. Dust protection, not pressure sealing.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• BSP Swivel Female – BSPP to ISO 228 with a 60° internal cone seat. It seals on the cone and swivels, so it needs no tape or sealant.

How to Choose

• Protective only. They keep dirt off the sealing face and stop the hose draining. They will not hold pressure.
• Sized for BSP, JIC and ORFS male ends. Pick by the end you are covering.
• Buy a range and keep them in the truck. They cost less than a filter and save far more.

Technicians Advice

The point of a cap is protecting the sealing face, not just stopping drips. A JIC cone or an ORFS flat face that gets dragged along a tray while uncapped is the leak you will be chasing next week.

Where You’ll Find It

• BSP Swivel Female – Hose ends across Australian-built assemblies, and anywhere a joint has to be broken and remade repeatedly.
• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.
• ORFS Swivel Female – Hose ends on modern high-pressure plant where a cone joint would fret loose under vibration.

Cross-Reference

• BSP Swivel Female – BSPP body to ISO 228 with a 60° cone seat. Commonly called a BSP swivel or BSP female cone seat.
• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.
• ORFS Swivel Female – SAE J1453 / ISO 8434-3 O-ring face seal. Parker series Seal-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

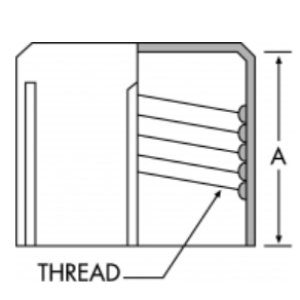

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	Size	A	Material	Finish
PCB-04	–	14.8mm	Mild steel	Plated finish
PCB-06	–	15.5mm	Mild steel	Plated finish
PCJ-07	–	11.94mm	Mild steel	Plated finish
PCB-08	–	21.2mm	Mild steel	Plated finish
PCJ-09	–	13.46mm	Mild steel	Plated finish
PCO-11	11/16" ORFS	–	Mild steel	Plated finish
PCB-12	–	22.0mm	Mild steel	Plated finish
PCJ-12	–	14.48mm	Mild steel	Plated finish
PCO-13	13/16" ORFS	–	Mild steel	Plated finish
PCJ-14	–	17.27mm	Mild steel	Plated finish
PCB-16	–	26mm	Mild steel	Plated finish
PCJ-17	–	19.05mm	Mild steel	Plated finish
PCO-19	1.3/16" ORFS	–	Mild steel	Plated finish
PCJ-21	–	21.34mm	Mild steel	Plated finish
PCO-23	1.7/16" ORFS	–	Mild steel	Plated finish

Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
