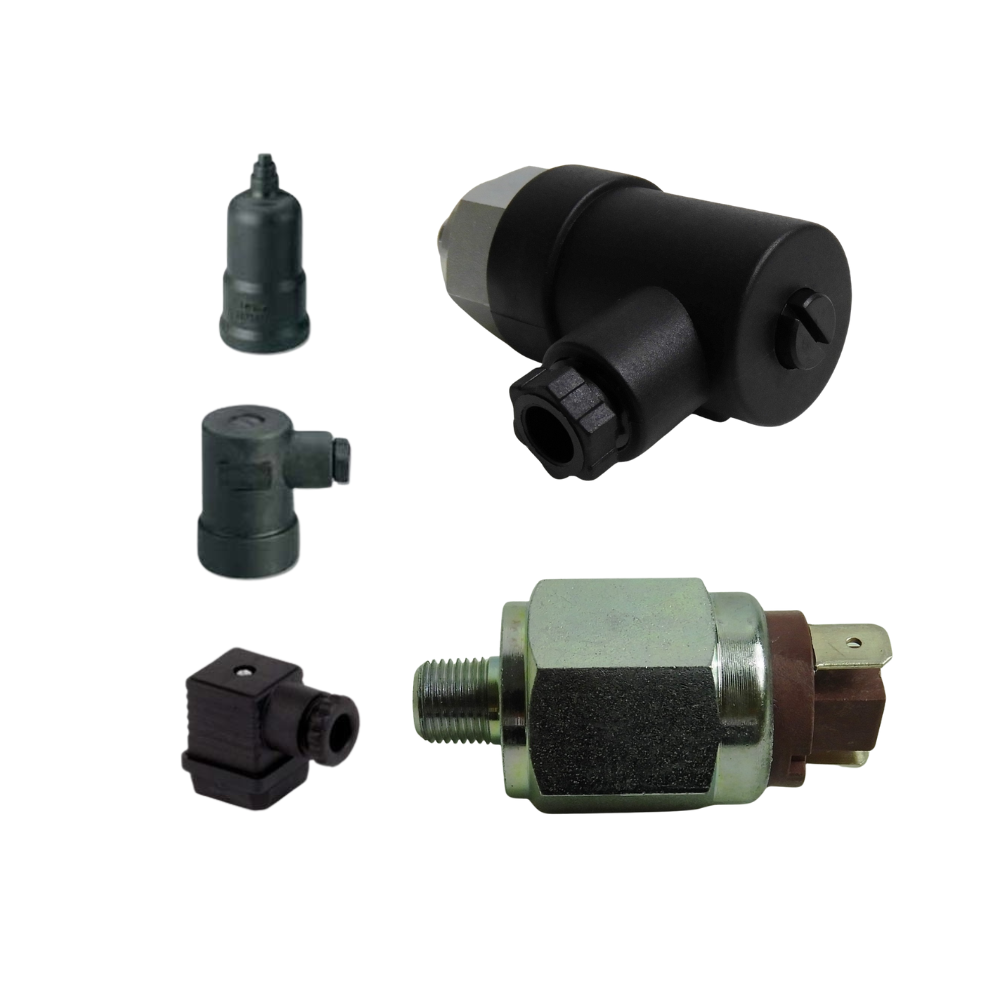

PRESSURE SWITCH HYDRAULIC, 1/8" VARIOUS PRESSURE RANGE

Store/Valves for Controlling and Directing Oil Flow and Pressure/Flow Control Valves

Product Details

Weight: 0.20 kg

Manufacturer: EUROSWITCH

These are commonly used to turn on/off a hydraulic system at the correct pressure. These are available to use on either 12 v or 24 v , <48 V & are available in normally open (NO) or normally closed NC. The Pressure range is adjustable using a knob. The thread is male 1/8" Bspt These are quality items made in Europe. .

Normally open, the contact is open, ie. there is no flow of current in the absence of pressure. When pressure setting is reached, contacts close.

Normally closed; Contacts are closed & the signal is present on the external contacts. When the set pressure is reached, the electrical contact rises & interrupts the signal

Pressure Rating = .01 bar to 300 bar
Size = 1/8" Bspt male

Need another size or type? just call us on 0755631982

***DISCLAIMER***

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
