Name: Orbital Motor BMR/BMSY
Brand: Hydraulic.Online
SKU: DCF
Price: 243.0 AUD
Availability: InStock

Orbital Motor BMR/BMSY Valves Crossline Relief or Counter Balance or Shuttle

Store/Motors Gear Geroler Orbital Radial

Product Details

Brand: Hydraulic.Online

Weight: 3.00 kg

CROSS LINE RELIEF OR COUNTER BALANCE VALVES OR SHUTTLE VALVE TO SUIT;

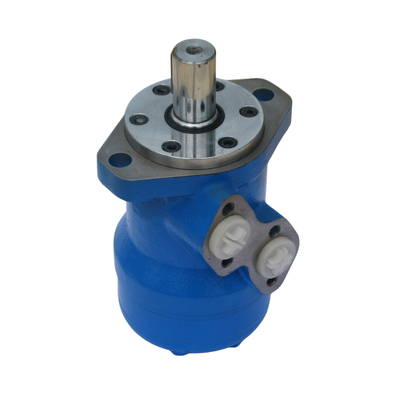

BMP/BMR/BMSY SERIES GEROLER MOTOR

Select ONE option only

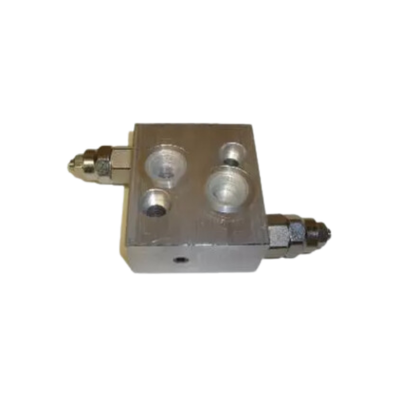

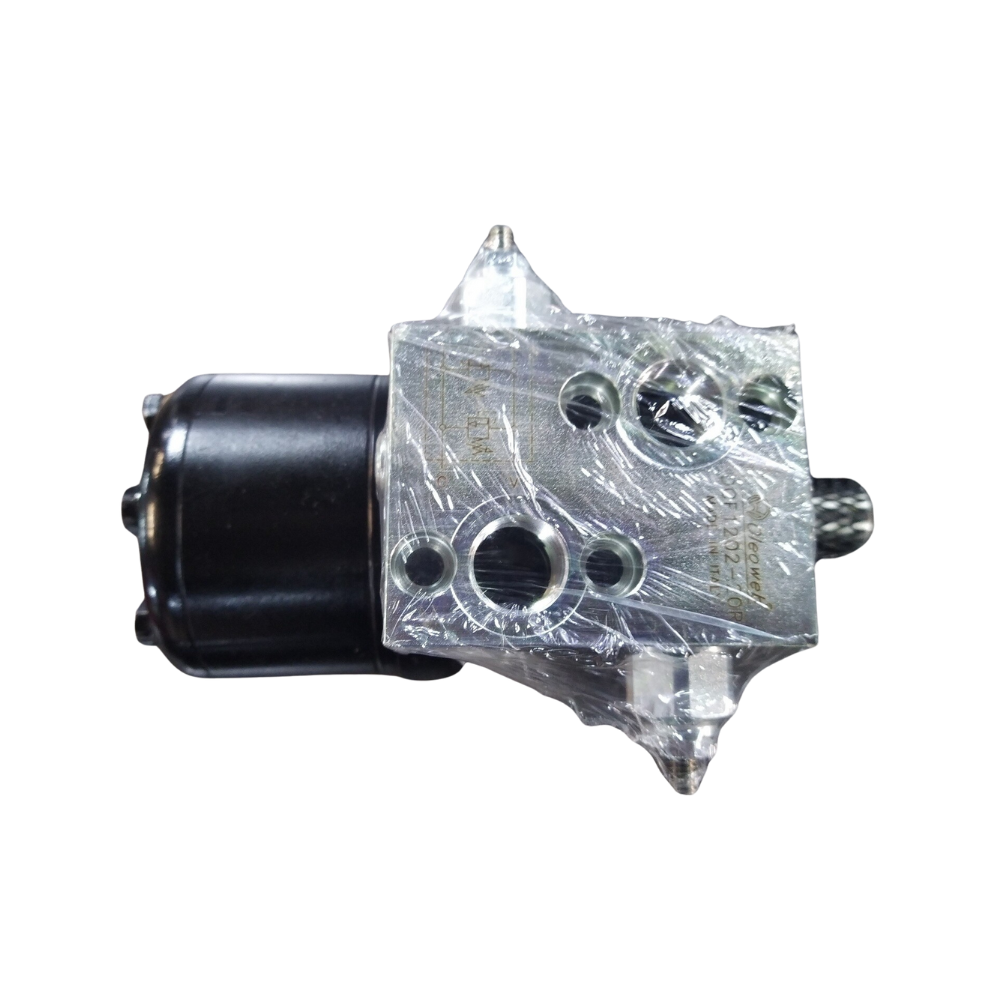

These are a 'Bolt on' unit designed only to fit our BMP / BMR & BMSY orbital motors. Simply bolt on & porting size remains the same size. Cross line relief is ideal for Slashers etc, where if the motors rotation is obstructed, the relief is able to instantly allow oil pressure to bypass, therefore avoiding damage to equipment. These valves have two adjustments for both directions, so it is possible to set one direction at a different relief pressure.
Pressure ranges available.

10-110 Bar

20-210 Bar STANDARD

70-350 Bar

The counter balance valve is ideal for applications such as winching or craning. It can be adjusted to allow loads, ie fishing nets, crane loads, to only travel out at a controlled speed even if there are heavy forces involved. Without these, fishing nets etc can pull out at a uncontrolled rate. The counter balance valve has the two adjustments for both directions.

These valves all come with 1/2" BSP threaded ports (1/4" case drain counter balance valve only).

Bolts required, (not supplied)

Cross Line Relief, MAX FLOW 40 Lpm

BMP / BMR = M8 x 40mm Cap Screw

BMSY = M10 x 40mm Cap Screw

Counter balance valves, MAX FLOW 60 Lpm

BMP / BMR = M8 x 50mm Cap Screw 70-250 Bar range

BMSY = M8 x 80mm Cap Screw 100-350 bar range

We are a functioning hydraulic service center, so feel free to ring or message us for prices on hydraulic adapters etc. If you are unsure about identifying your pump, please clean & send a photo of the numbers & letters stamped in the body of all pumps. We will try to interpret this for you.

OUR EMAIL IS – sales@hydraulic.online

0755631982

***DISCLAIMER***

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
