ORFS Tube Nuts
Product Details
Brand: Ayrtec
Weight: 0.08 kg

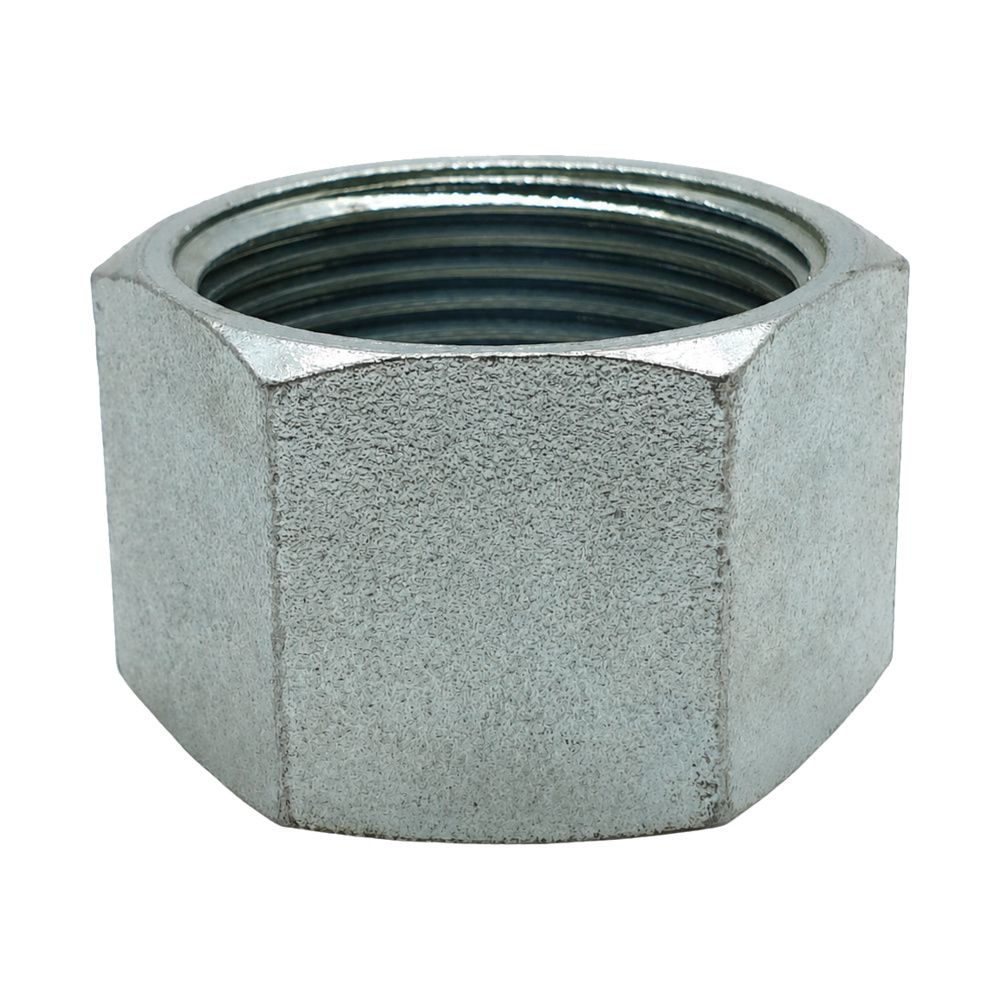

ORFS Tube Nuts
Replacement tube nuts for O-ring face seal tube assemblies. Clamps the flanged tube end against the mating face.
Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.
Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long
Thread Standards
- ORFS Tube Nut – the nut half of an O-ring face seal tube connection. It carries no seal itself – it clamps the flanged tube end against the mating face where the O-ring does the sealing.
How to Choose
- This is a spare part, sold on its own so a damaged one does not mean replacing the whole assembly.
- The nut carries no seal. The O-ring in the mating face does the sealing.
- Check whether the assembly is standard or light series before ordering.
Technicians Advice
A damaged nut does not mean a new tube. If the flange on the tube end is sound and the face is unmarked, a new nut puts the assembly straight back into service.
Where You’ll Find It
- ORFS Tube Nut – ORFS tube runs on late-model machinery, and repairs where the nut has been damaged but the tube is sound.
Cross-Reference
- ORFS Tube Nut – SAE J1453 O-ring face seal tube nut. Sold separately so a damaged nut does not mean a new tube.
Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.
Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
📐Dimensions & thread sizes – every size in this range
← Swipe the table sideways to see every measurement →
| Part code | Hex | Material | Finish |
|---|---|---|---|
| OTN-09 | 17.5mm | Mild steel | Plated finish |
| OTN-11 | 20.6mm | Mild steel | Plated finish |
| OTN-13 | 23.8mm | Mild steel | Plated finish |
| OTN-16 | 28.6mm | Mild steel | Plated finish |
| OTN-19 | 34.9mm | Mild steel | Plated finish |
| OTN-23 | 41.3mm | Mild steel | Plated finish |
| OTN-27 | 47.6mm | Mild steel | Plated finish |
| OTN-32 | 57.2mm | Mild steel | Plated finish |
Key: Hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
