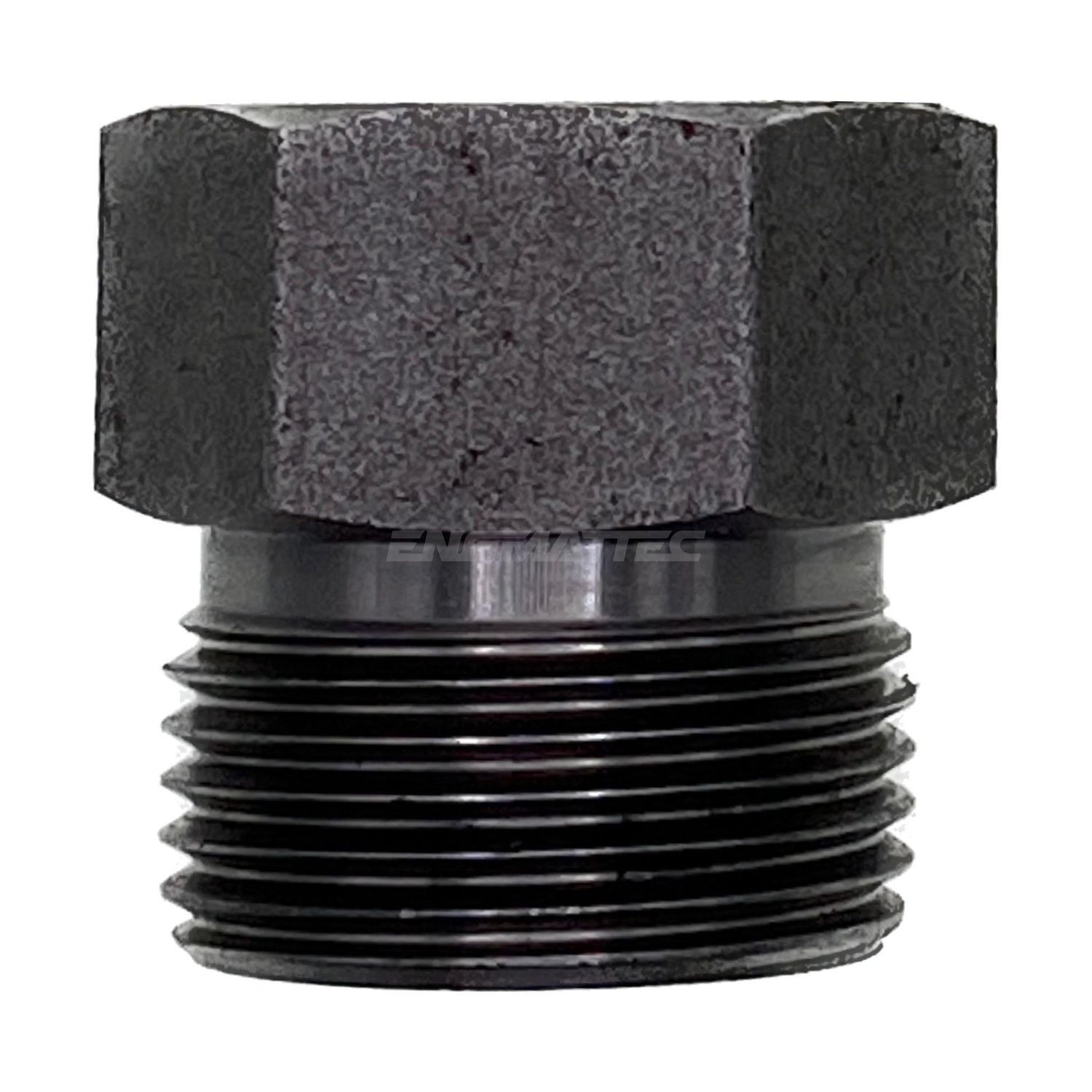

ORFS Male x Tubeweld Female Straight Weld-On Adaptor

An ORFS male one end and a plain weld socket the other. Puts a flat-face connection onto fabricated tube on late-model machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• ORFS Male – SAE J1453 O-ring face seal. It seals on an O-ring sitting in the flat face groove, never on the thread.
• Tubeweld Female (weld-on socket) – plain-bore socket sized to a tube OD, joined by welding rather than a thread. It has no seal of its own – the weld is the joint, so the tube must be clean, square and correctly prepared.

How to Choose

• Sized by tube outside diameter, not by thread. Measure the tube with vernier calipers rather than going by what the old fitting says.
• The ORFS end seals on an O-ring in the flat face. Nothing on the thread.
• Remove the O-ring before welding and fit a new one after.

Technicians Advice

Take the O-ring out before you weld. It will be destroyed by the heat, and a melted ring in the groove is worse than no ring because it looks like it is doing something.

Where You’ll Find It

• ORFS Male – High-pressure, high-vibration circuits on late-model excavators, drill rigs, crushers and forestry gear.
• Tubeweld Female (weld-on socket) – fabricated tube runs on machinery builds, tank and reservoir plumbing, and repairs where a threaded connection is not wanted or there is no room for one.

Cross-Reference

• ORFS Male – SAE J1453 / ISO 8434-3 O-ring face seal. Parker call this series Seal-Lok. Also written ORFS or flat face.
• Tubeweld Female (weld-on socket) – Weld-on socket, also called a weld nipple, weld boss or tubeweld end. Sized by tube outside diameter, not by thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
ORM-TWF-0904	9/16" JIC	1/4" Tube	22mm	15.9mm	Mild steel	Plated finish
ORM-TWF-0906	9/16" JIC	3/8" Tube	22mm	15.9mm	Mild steel	Plated finish
ORM-TWF-1106	11/16" JIC	3/8" Tube	23mm	19.1mm	Mild steel	Plated finish
ORM-TWF-1308	13/16" JIC	1/2" Tube	25mm	22.2mm	Mild steel	Plated finish
ORM-TWF-1610	1" JIC	5/8" Tube	27mm	27.0mm	Mild steel	Plated finish
ORM-TWF-1912	1.3/16" JIC	3/4" Tube	34mm	31.8mm	Mild steel	Plated finish
ORM-TWF-1916	1.3/16" JIC	1" Tube	35mm	31.8mm	Mild steel	Plated finish
ORM-TWF-2316	1.7/16" JIC	1" Tube	39mm	38.1mm	Mild steel	Plated finish
ORM-TWF-2320	1.7/16" JIC	1.1/4" Tube	39mm	38.1mm	Mild steel	Plated finish
ORM-TWF-2324	1.7/16" JIC	1.1/2" Tube	39mm	44.5mm	Mild steel	Plated finish
ORM-TWF-3232	2" JIC	2" Tube	39mm	54.0mm	Mild steel	Plated finish

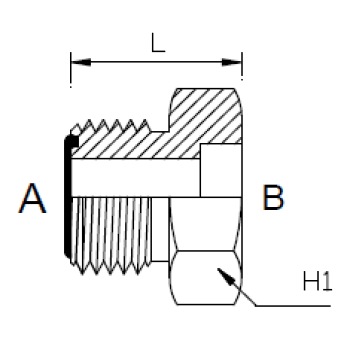

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
