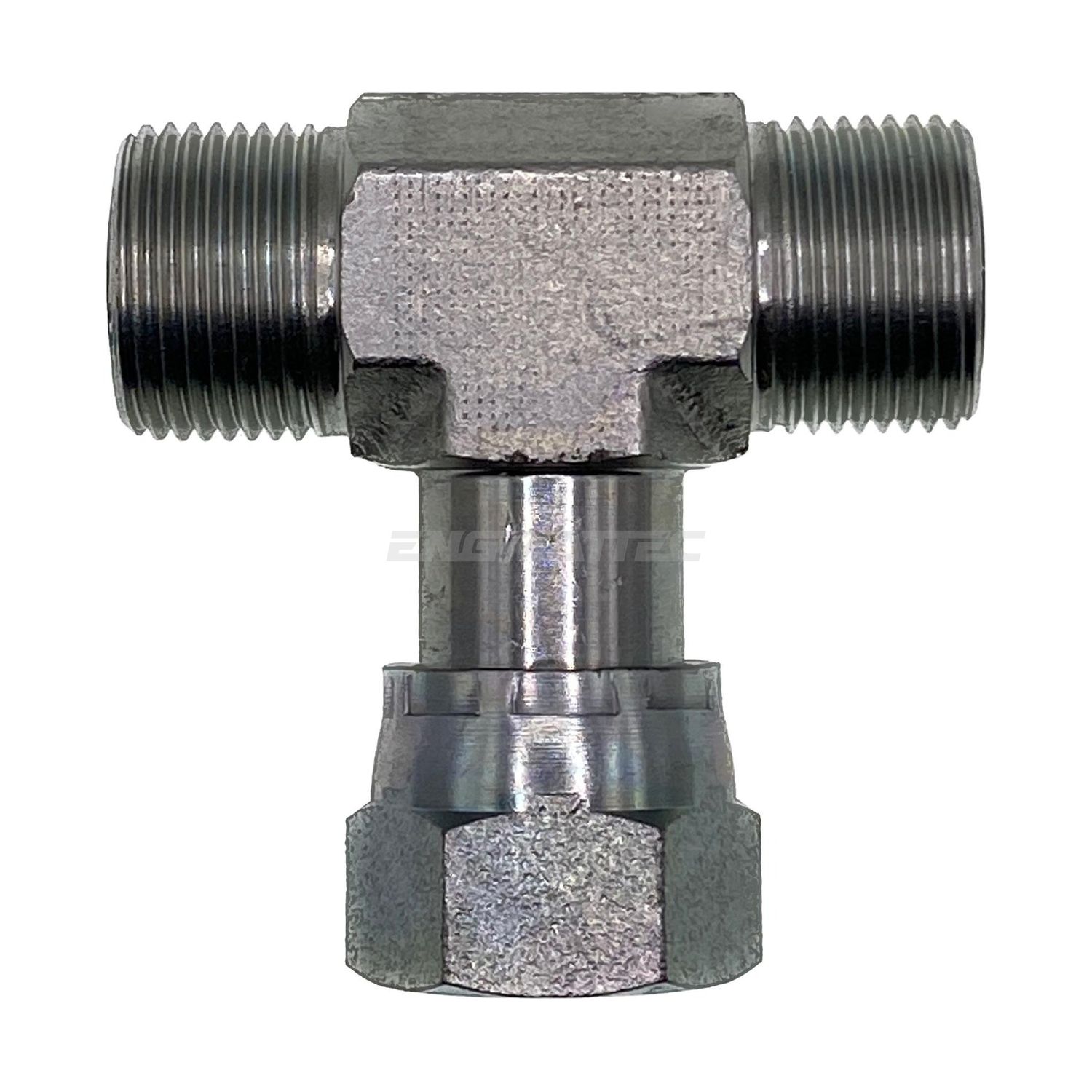

ORFS Male x Male x ORFS Swivel Female Tee

Two ORFS male ports and one ORFS swivel female. Lets a hose come off the tee without being wound up as it is tightened.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• ORFS Male – SAE J1453 O-ring face seal. It seals on an O-ring sitting in the flat face groove, never on the thread.
• ORFS Swivel Female – SAE J1453 O-ring face seal. It clamps down onto the male flat face O-ring and swivels for alignment.

How to Choose

• The swivel female turns as you tighten, so the hose on that leg is never twisted.
• All three ports seal on an O-ring in a flat face. No sealant anywhere.
• Work to the dash size on the hose rather than the thread size.

Technicians Advice

Three soft seals in one part. Check every groove and ring on the bench, and fit the swivel leg last so the hose can be routed properly before it is pulled up.

Where You’ll Find It

• ORFS Male – High-pressure, high-vibration circuits on late-model excavators, drill rigs, crushers and forestry gear.
• ORFS Swivel Female – Hose ends on modern high-pressure plant where a cone joint would fret loose under vibration.

Cross-Reference

• ORFS Male – SAE J1453 / ISO 8434-3 O-ring face seal. Parker call this series Seal-Lok. Also written ORFS or flat face.
• ORFS Swivel Female – SAE J1453 / ISO 8434-3 O-ring face seal. Parker series Seal-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	H	S1	Material	Finish
ORM-ORM-ORF-090909	17.5mm	14.3mm	Mild steel	Plated finish
ORM-ORM-ORF-111111	20.6mm	20.6mm	Mild steel	Plated finish
ORM-ORM-ORF-131313	23.8mm	23.8mm	Mild steel	Plated finish
ORM-ORM-ORF-161616	28.6mm	28.6mm	Mild steel	Plated finish
ORM-ORM-ORF-191919	34.9mm	31.2mm	Mild steel	Plated finish
ORM-ORM-ORF-232323	41.3mm	36.5mm	Mild steel	Plated finish
ORM-ORM-ORF-272727	47.6mm	41.3mm	Mild steel	Plated finish
ORM-ORM-ORF-323232	57.2mm	47.6mm	Mild steel	Plated finish

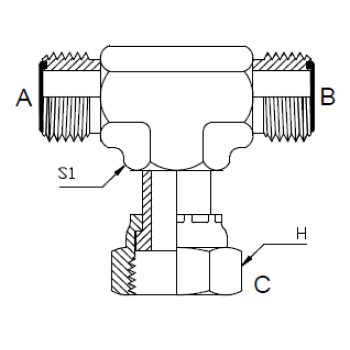

Key: H centre to face, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
