ORFS Swivel Female x UNO O-Ring Boss Male Straight Adaptor

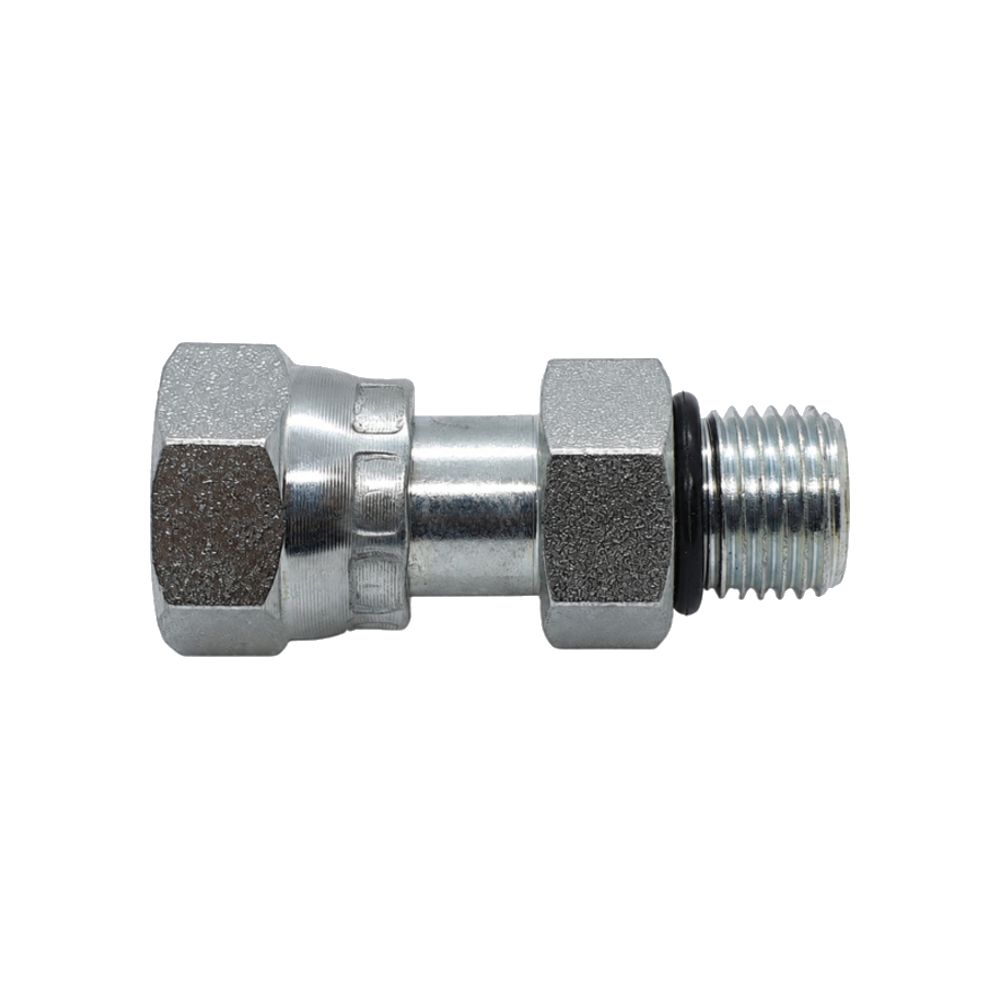

O-ring face seal swivel female one end, SAE O-ring boss male the other. Two soft-sealed ends, which is the pairing most late-model American machinery is built around.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: 90 ° Hydraulic Adaptors How They Work and the Importance of O'Rings

Thread Standards

• ORFS Swivel Female – SAE J1453 O-ring face seal. It clamps down onto the male flat face O-ring and swivels for alignment.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. It seals on an O-ring squeezed against the port spotface, not on the thread.

How to Choose

• Neither end seals on the thread. No tape, no sealant, either side.
• The UNO end wants a clean port spotface, the ORFS end a clean face groove. Two things to check, not one.
• The two ends carry different O-ring sizes. Keep the spares sorted rather than working out of one tin.

Technicians Advice

A good fitting to standardise on for high-vibration mounts, because nothing on it can shake loose or fret. Just remember two soft seals means two things to check when something weeps, and the answer is almost never more torque.

Where You’ll Find It

• ORFS Swivel Female – Hose ends on modern high-pressure plant where a cone joint would fret loose under vibration.
• SAE O-Ring Boss Male (UNO/UNF) – Cylinder end caps, pump and valve bosses on US-built plant. Common on Australian-assembled cylinders too, where it is usually called UNO.

Cross-Reference

• ORFS Swivel Female – SAE J1453 / ISO 8434-3 O-ring face seal. Parker series Seal-Lok.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. Also written ORB, SAE ORB or UNO. Thread form is UN/UNF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
ORF-UNM-1109	9/16" UNO	11/16" ORFS	40mm	20.6mm	19.0mm	Mild steel	Plated finish
ORF-UNM-1312	3/4" UNO	13/16" ORFS	49mm	23.8mm	22.2mm	Mild steel	Plated finish
ORF-UNM-1917	1.1/16" UNO	1.3/16" ORFS	60mm	34.9mm	31.8mm	Mild steel	Plated finish

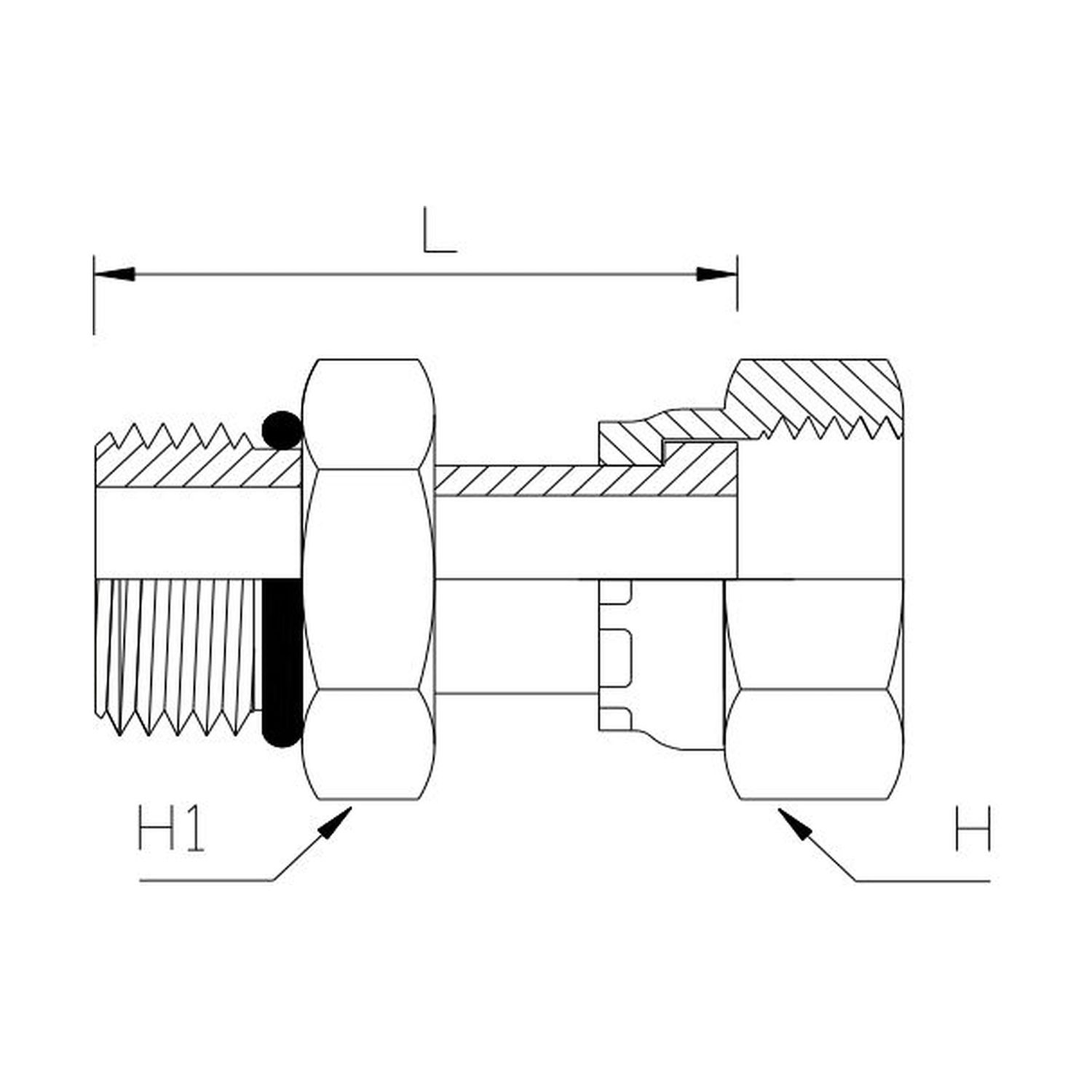

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
