ORFS Swivel Female Cap

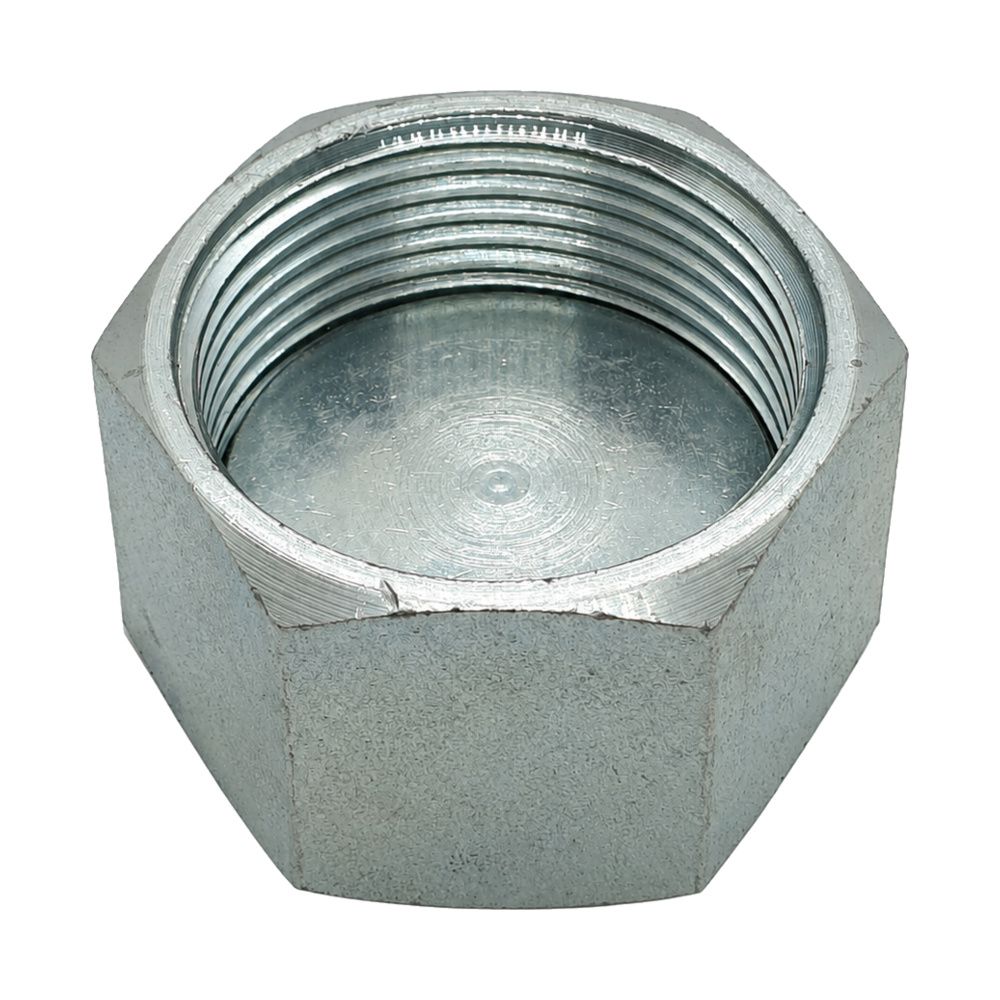

An ORFS swivel female cap for covering an exposed flat-face male end on late-model machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• ORFS Swivel Female – SAE J1453 O-ring face seal. It clamps down onto the male flat face O-ring and swivels for alignment.

How to Choose

• A cap is female and covers a male end. A plug is male and blocks a female port. Check which the open connection is before you order.
• Seals on the O-ring in the mating flat face. Nothing on the thread.
• Check the male face and the ring before you cap it, because a nicked face will not seal when the hose goes back on either.

Technicians Advice

Capping an ORFS end also protects the sealing face from being knocked about while the machine is apart, which matters more on a face seal than on a cone. A dinged flat face is scrap.

Where You’ll Find It

• ORFS Swivel Female – Hose ends on modern high-pressure plant where a cone joint would fret loose under vibration.

Cross-Reference

• ORFS Swivel Female – SAE J1453 / ISO 8434-3 O-ring face seal. Parker series Seal-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	H	Material	Finish
ORF-09	9/16" ORFS	17.5mm	Mild steel	Plated finish
ORF-11	11/16" ORFS	20.6mm	Mild steel	Plated finish
ORF-13	13/16" ORFS	23.8mm	Mild steel	Plated finish
ORF-16	1" ORFS	28.6mm	Mild steel	Plated finish
ORF-19	1.3/16" ORFS	34.9mm	Mild steel	Plated finish
ORF-23	1.7/16" ORFS	41.3mm	Mild steel	Plated finish
ORF-27	1.11/16" ORFS	47.6mm	Mild steel	Plated finish
ORF-32	2" ORFS	57.2mm	Mild steel	Plated finish

Key: H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
