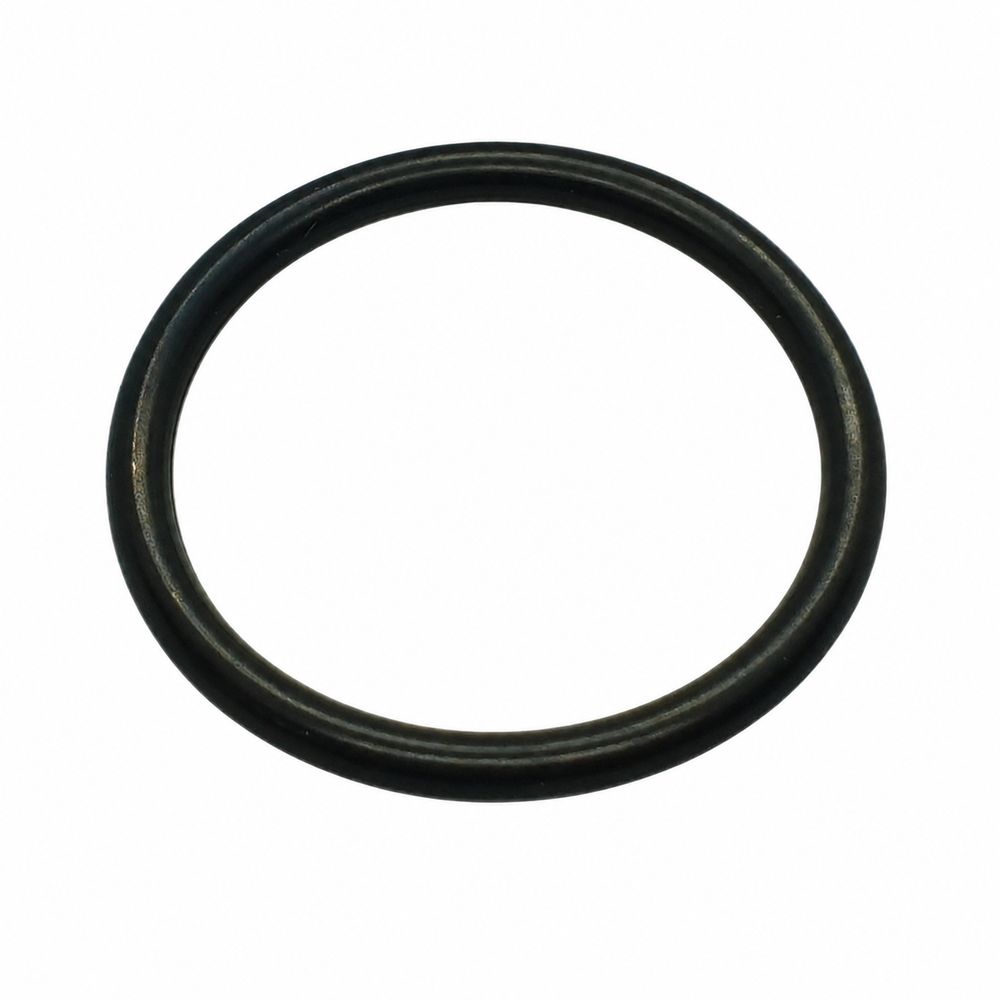

O-Rings UNO 7/16" to 2-1/2"

Boss O-rings for UNO / O-ring boss (ORB) ports – the ring seats in the chamfer at the top of the port as the fitting shoulders down. 11 sizes from 7/16" to 2-1/2". Pick your size below and it is on its way.

Ways to buy:

• Off the shelf – 11 UNO sizes from 7/16" to 2-1/2" in the picker below.
• Need UNO adaptors as well? See our UNO adaptor listings.

Pick your size

What is in the box

One O-ring per unit price. Quantity pricing applies automatically at 5, 10, 25 and 50 units.

Specifications

How to choose

• Size is the UN/UNF thread of the fitting – 7/16"-20 takes the 7/16" ring, 3/4"-16 takes the 3/4" ring.
• UNO ports are common on US-built gear – pumps, valve blocks and cylinder ports.
• Adjustable (long-nut) fittings use the same ring but add a back-up washer – inspect it while you are in there.
• Not sure if the port is UNO or JIC? UNO seals at the port face with this ring; JIC seals on the 37° cone.

Technicians Advice

On adjustable UNO fittings, set your elbow orientation FIRST, then hold the fitting and pull the locknut down onto the washer and ring – winding the fitting after the nut is tight rolls the ring out of the chamfer and it will leak from day one. Oil the ring, run the fitting in until the ring touches, orient, then lock. If the port chamfer edge is nicked from a previous blow-out, dress it or the new ring will follow the old one.
