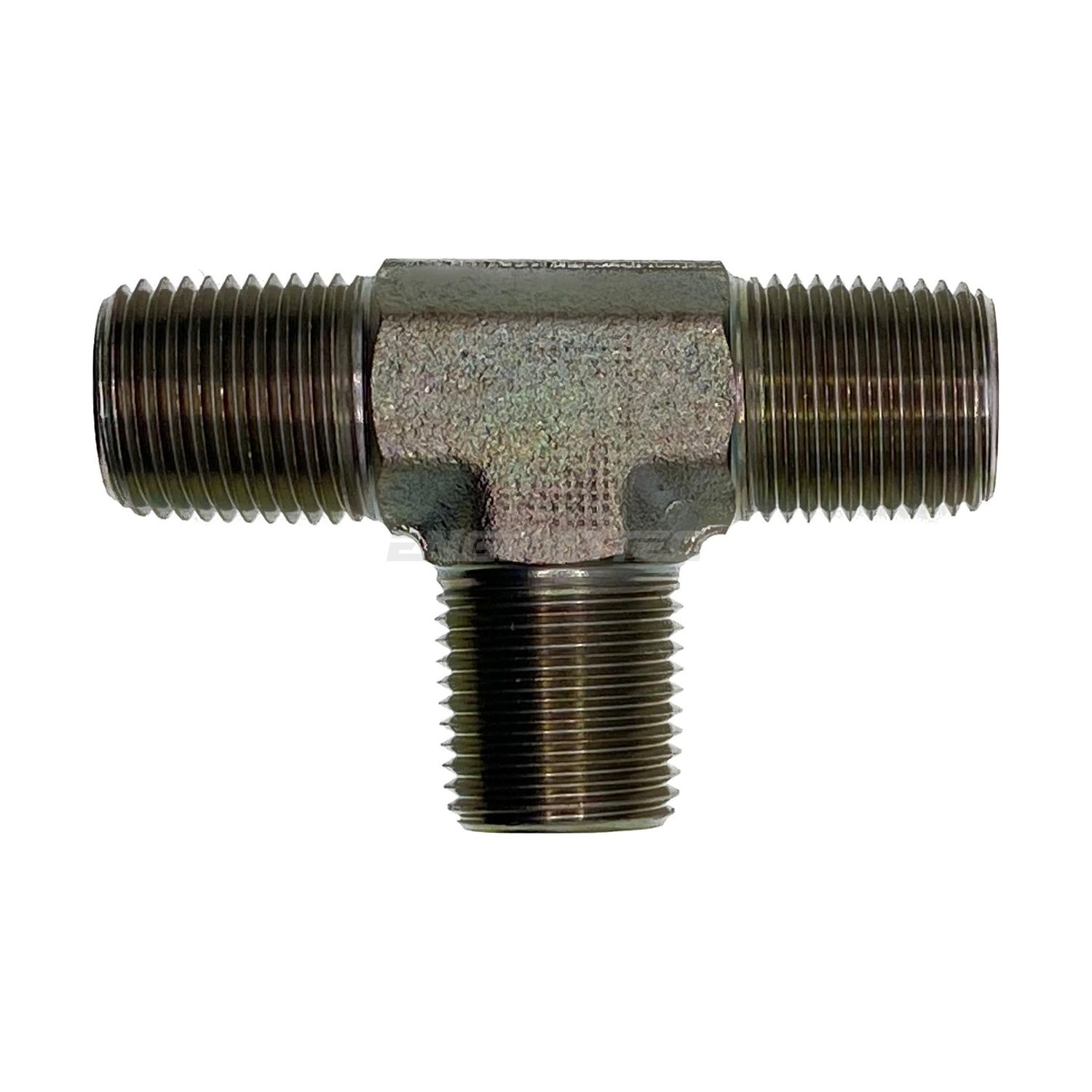

NPT Tapered Male Equal Tee

Three NPT tapered male ports. The American pipe-thread tee, found on pumps, filter heads, gauge blocks and cylinder ports.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.

How to Choose

• All three ports are the same size and thread, so it does not matter which way the tee goes in.
• Every joint seals on the thread, so all three need sealant.
• NPT is 60° and BSPT is 55°. They start together and chew out, so identify every mating part.

Technicians Advice

Most NPT weeps come from over-tightening, not under. Hand tight plus two or three turns at each port and stop. On a tee that is three chances to crack something with a long bar.

Where You’ll Find It

• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.

Cross-Reference

• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	S1	Material	Finish
NTM-NTM-NTM-020202	11.1mm	Mild steel	Plated finish
NTM-NTM-NTM-040404	14.3mm	Mild steel	Plated finish
NTM-NTM-NTM-060606	19.1mm	Mild steel	Plated finish
NTM-NTM-NTM-080808	22.2m	Mild steel	Plated finish
NTM-NTM-NTM-121212	27.0m	Mild steel	Plated finish
NTM-NTM-NTM-161616	33.3m	Mild steel	Plated finish
NTM-NTM-NTM-323232	63mm	Mild steel	Plated finish

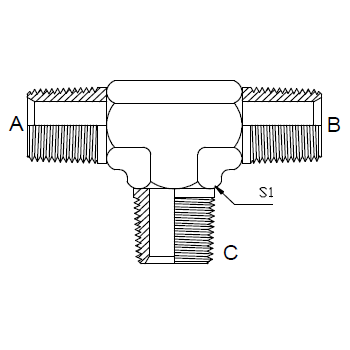

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
