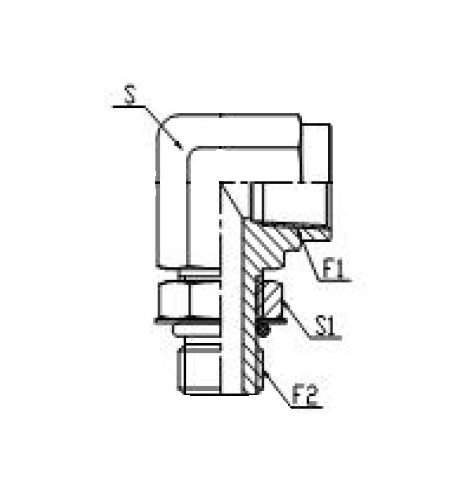

NPT Tapered Female x SAE O-Ring Boss Male 90° Compact Elbow

O-ring boss into the port, NPT female out to pipework, turned 90°. Lets American pipe plumbing come hard off an SAE boss without an adaptor stack.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: 90 ° Hydraulic Adaptors How They Work and the Importance of O'Rings

Thread Standards

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread. It seals on the thread and needs tape or sealant every time.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. It seals on an O-ring squeezed against the port spotface, not on the thread.

How to Choose

• The ORB end seals on an O-ring against a spotface. It will not seal in a tapered port.
• The NPT female needs tape or sealant. The ORB end must stay dry.
• Whatever screws into the female must be NPT male, not BSPT.

Technicians Advice

One end tapered, one end straight, and they want opposite treatment. Sealant in the female, clean oil on the boss O-ring, nothing else. If the boss end seeps it is a pinched O-ring, and more torque only makes it worse.

Where You’ll Find It

• NPT Tapered Female – Female side of American pipework, adaptor blocks and gauge manifolds.
• SAE O-Ring Boss Male (UNO/UNF) – Cylinder end caps, pump and valve bosses on US-built plant. Common on Australian-assembled cylinders too, where it is usually called UNO.

Cross-Reference

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. Also written ORB, SAE ORB or UNO. Thread form is UN/UNF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
