NPT Tapered Female x NPSM Swivel Female 90° Compact Elbow

Tapered NPT female one end, straight-thread NPSM swivel the other, at 90°. The two threads look almost identical and behave completely differently, which is the whole point of this fitting.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread. It seals on the thread and needs tape or sealant every time.
• NPSM Swivel Female – ANSI B1.20.1 straight pipe thread with a 60° internal cone. It seals on the cone seat rather than the thread, so it must not be taped.

How to Choose

• NPT female is tapered and seals on the thread. NPSM female is straight and seals on a 60° cone. Same pitch, different job.
• Tape the NPT end only. Taping the NPSM end holds the cone off its seat.
• Check which one you actually need - the pitch matching means the wrong one will still screw together.

Technicians Advice

If you only remember one thing about this fitting, it is that tape goes in the tapered end and nowhere near the swivel. A weeping NPSM swivel that has been taped is the single most common fault we see on gauge and filter plumbing.

Where You’ll Find It

• NPT Tapered Female – Female side of American pipework, adaptor blocks and gauge manifolds.
• NPSM Swivel Female – Gauges, filter heads, sensors and return lines where the joint has to come apart regularly.

Cross-Reference

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread.
• NPSM Swivel Female – ANSI B1.20.1 straight pipe thread with a 60° internal seat. Written NPSM, sometimes called an NPT swivel.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	S	S1	Material	Finish
NTF-NSF-90C-0808	1/2" NPT	1/2" NPT	1/2" NPT	1/2" NPT	27.0mm	25.4mm	Mild steel	Plated finish
NTF-NSF-90C-1212	3/4" NPT	3/4" NPT	3/4" NPT	3/4" NPT	33.3mm	31.8mm	Mild steel	Plated finish

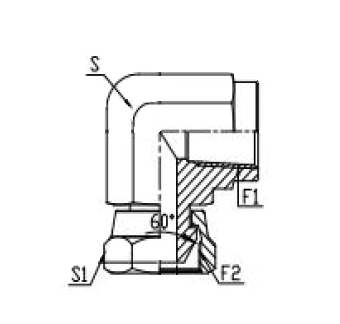

Key: S hex across flats, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
