NPT Tapered Female x JIC 37° Swivel Female 90° Compact Elbow

NPT female one end, JIC swivel female the other, bent 90°. Takes a JIC hose end and lands it on an NPT male nipple with a hard turn in between.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread. It seals on the thread and needs tape or sealant every time.
• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.

How to Choose

• Whatever screws into the NPT female must be NPT male, not BSPT. The forms differ and BSPT will split the casting.
• The NPT female needs tape or sealant. The JIC swivel stays dry.
• Both ends are female, so this joins two male-ended parts rather than screwing into a port.

Technicians Advice

Sealant belongs in the NPT end only. If the JIC swivel weeps, strip any tape out and inspect the cone - tape on a cone joint causes leaks rather than curing them, and it usually ends up in a valve spool.

Where You’ll Find It

• NPT Tapered Female – Female side of American pipework, adaptor blocks and gauge manifolds.
• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.

Cross-Reference

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread.
• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

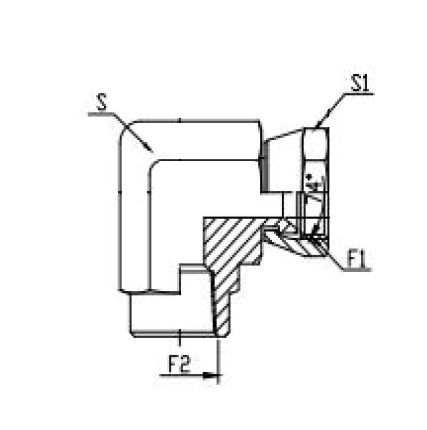

Part code	S	S1	NPT	JIC	Material	Finish
NTF-JIF-90C-0407	19mm	14.3mm	1/4"	7/16"	Mild steel	Plated finish

Key: S hex across flats, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
