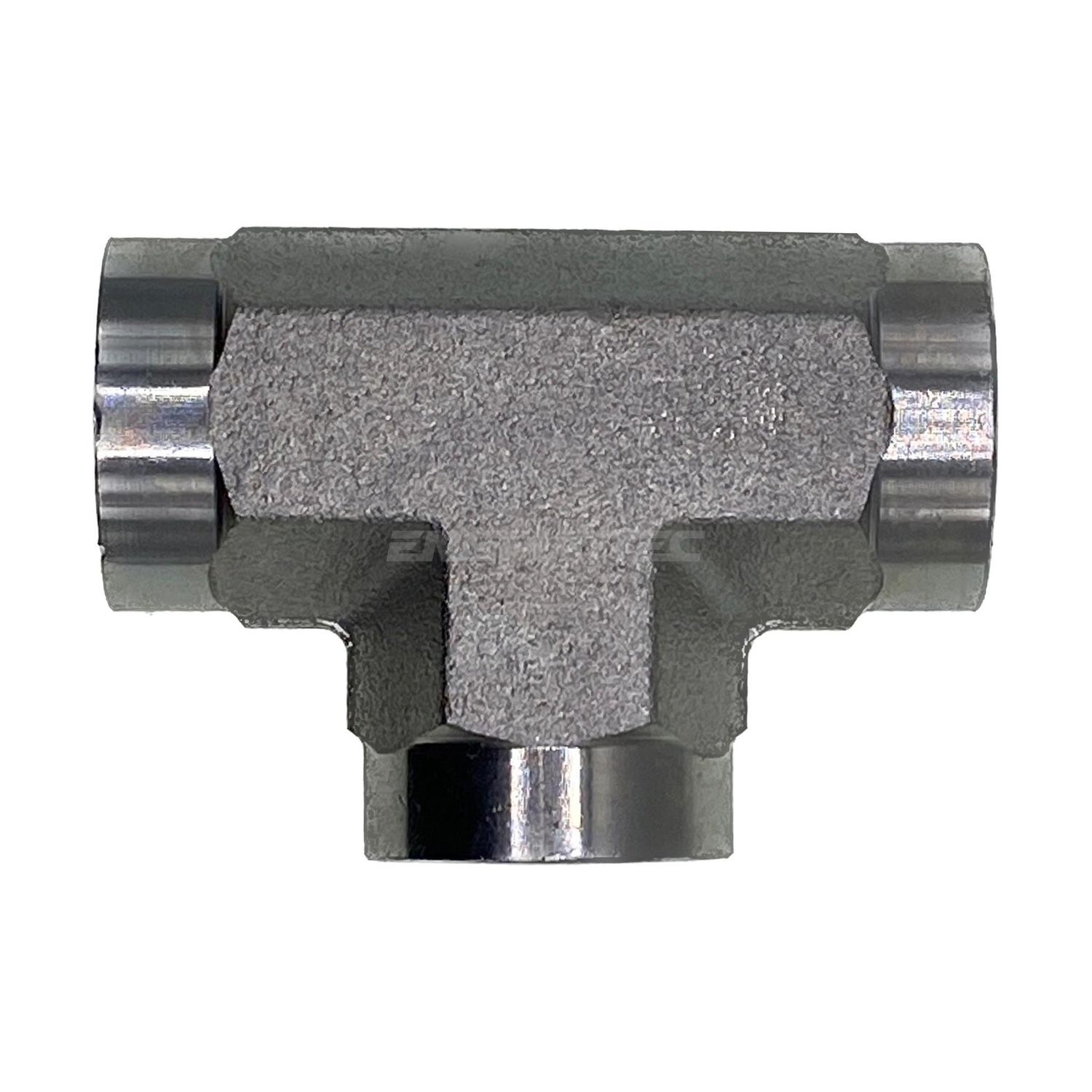

NPT Tapered Female Equal Socket Tee

Three NPT tapered female ports. The American pipe-thread socket tee, for joining three male fittings on a US-built machine.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread. It seals on the thread and needs tape or sealant every time.

How to Choose

• All three ports are the same size and thread, so it does not matter which way the tee goes in.
• All three joints seal on the thread of the male going in and all three need sealant.
• NPT and BSPT start into each other and then chew out, so identify every male before you fit it.

Technicians Advice

Three tapered joints means three chances to over-tighten and split the socket. Hand tight plus two or three turns at each, and keep the tape back off the first two threads on every male.

Where You’ll Find It

• NPT Tapered Female – Female side of American pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	S1	Material	Finish
NTF-NTF-NTF-020202	14.3mm	Mild steel	Plated finish
NTF-NTF-NTF-040404	19.1mm	Mild steel	Plated finish
NTF-NTF-NTF-060606	22.2mm	Mild steel	Plated finish
NTF-NTF-NTF-080808	27.0mm	Mild steel	Plated finish
NTF-NTF-NTF-121212	33.3mm	Mild steel	Plated finish
NTF-NTF-NTF-161616	41.3mm	Mild steel	Plated finish
NTF-NTF-NTF-202020	47.6mm	Mild steel	Plated finish
NTF-NTF-NTF-242424	65.0mm	Mild steel	Plated finish
NTF-NTF-NTF-323232	71.0mm	Mild steel	Plated finish

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
