NPT Tapered Female Socket Cross

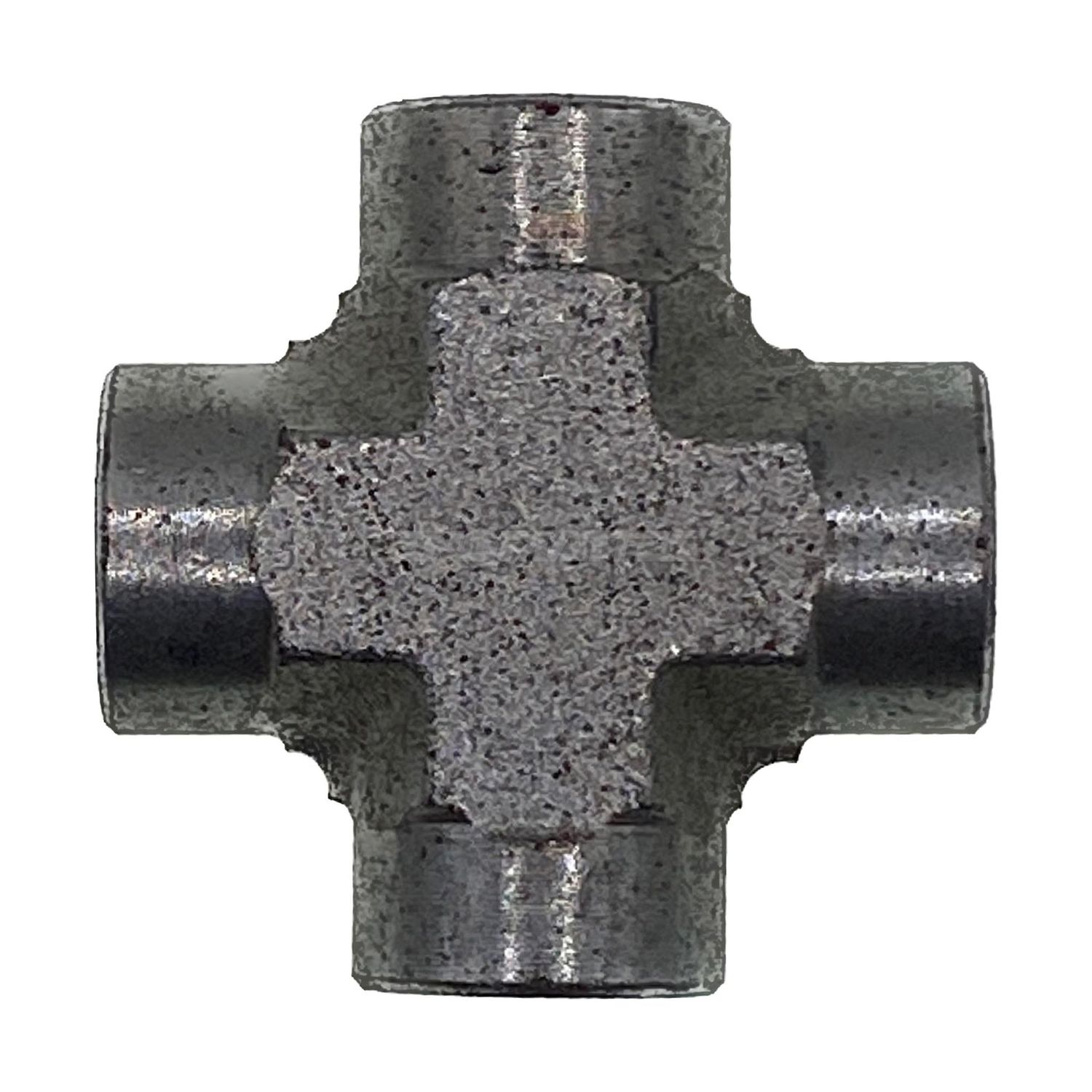

Four NPT tapered female ports at 90°. The American pipe-thread cross, for splitting a line four ways.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread. It seals on the thread and needs tape or sealant every time.

How to Choose

• All four joints seal on the thread and all four need sealant.
• NPT and BSPT start into each other and then chew out, so identify every male.
• Keep tape back off the first two threads on all four.

Technicians Advice

Four tapered joints means four chances to over-tighten and crack the body. Hand tight plus two or three turns at each, and do the lot on the bench where you can hold it properly.

Where You’ll Find It

• NPT Tapered Female – Female side of American pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	S1	Material	Finish
NTF-NTF-NTF-NTF-02020202	1/8" NPT	14.3mm	Mild steel	Plated finish
NTF-NTF-NTF-NTF-04040404	1/4" NPT	19.1mm	Mild steel	Plated finish
NTF-NTF-NTF-NTF-06060606	3/8" NPT	22.2mm	Mild steel	Plated finish
NTF-NTF-NTF-NTF-08080808	1/2" NPT	27.0mm	Mild steel	Plated finish
NTF-NTF-NTF-NTF-12121212	3/4" NPT	33.3mm	Mild steel	Plated finish
NTF-NTF-NTF-NTF-16161616	1" NPT	41.3mm	Mild steel	Plated finish

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
