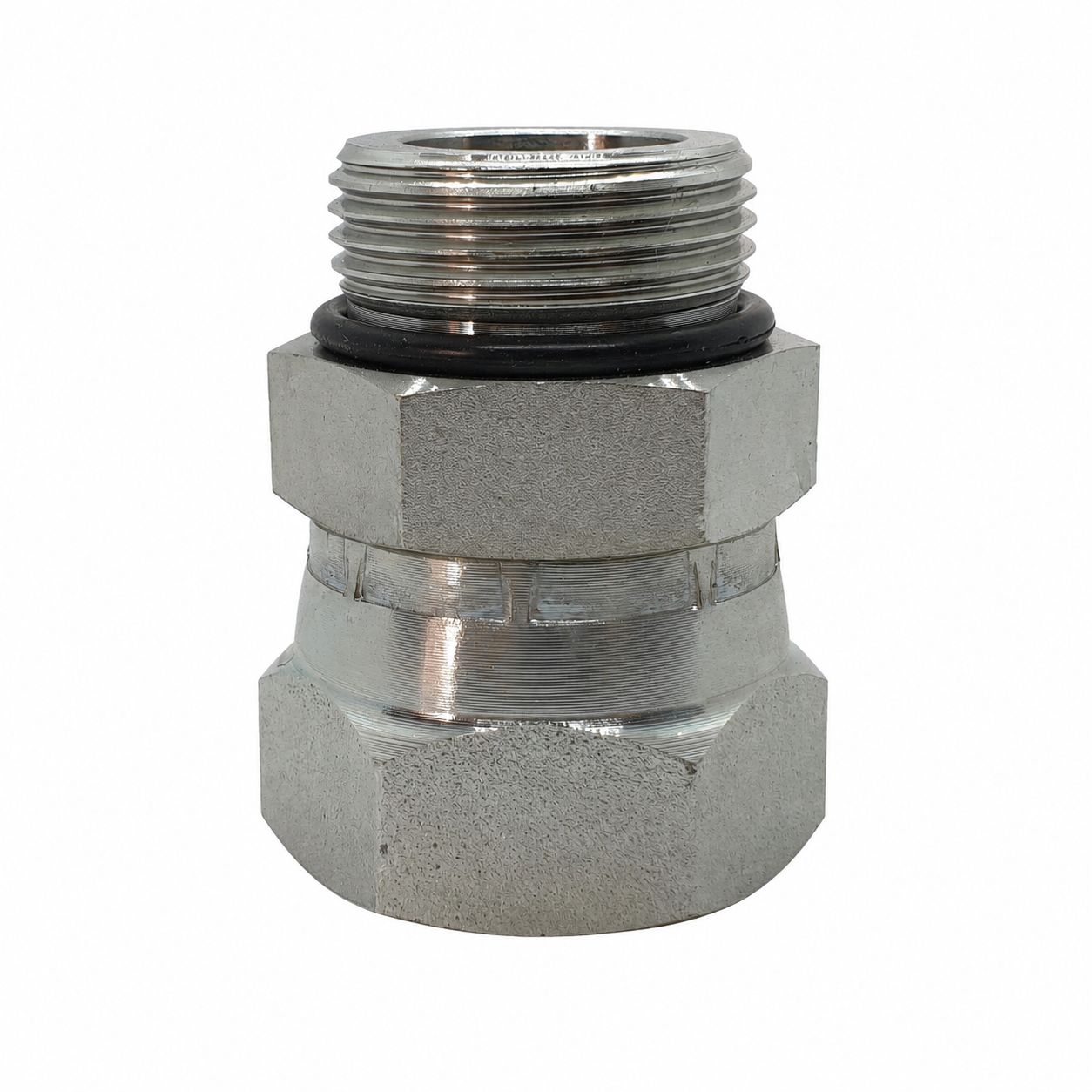

NPSM Swivel Female x UNO O-Ring Boss Male Straight Adaptor

NPSM swivel female one end, SAE O-ring boss male the other. Two straight-thread connections, both sealing on something other than the thread, common on American-built equipment.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: 90 ° Hydraulic Adaptors How They Work and the Importance of O'Rings

Thread Standards

• NPSM Swivel Female – ANSI B1.20.1 straight pipe thread with a 60° internal cone. It seals on the cone seat rather than the thread, so it must not be taped.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. It seals on an O-ring squeezed against the port spotface, not on the thread.

How to Choose

• The NPSM female seals on its internal 30° seat and swivels. The UNO male seals on its O-ring at the port spotface.
• Neither thread does any sealing, so no tape and no sealant on either end.
• Check the UNO port spotface is clean and unmarked before you wind it in.

Technicians Advice

Both ends here look like threads that should take sealant and neither does. If either weeps, the answer is in the seat or the O-ring, not in the tape tin. Pull it apart and look before you reach for anything.

Where You’ll Find It

• NPSM Swivel Female – Gauges, filter heads, sensors and return lines where the joint has to come apart regularly.
• SAE O-Ring Boss Male (UNO/UNF) – Cylinder end caps, pump and valve bosses on US-built plant. Common on Australian-assembled cylinders too, where it is usually called UNO.

Cross-Reference

• NPSM Swivel Female – ANSI B1.20.1 straight pipe thread with a 60° internal seat. Written NPSM, sometimes called an NPT swivel.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. Also written ORB, SAE ORB or UNO. Thread form is UN/UNF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
NSF-UNM-0207	1/8" UNO	7/16" NPT	–	–	–	Mild steel	Plated finish
NSF-UNM-0609	9/16" UNO	3/8" NPT	32mm	22.2mm	17.5mm	Mild steel	Plated finish
NSF-UNM-0809	9/16" UNO	1/2" NPT	33mm	25.4mm	20.6mm	Mild steel	Plated finish
NSF-UNM-0812	3/4" UNO	1/2" NPT	32mm	25.4mm	22.2mm	Mild steel	Plated finish
NSF-UNM-0814	7/8" UNO	1/2" NPT	34mm	25.4mm	25.4mm	Mild steel	Plated finish
NSF-UNM-0817	1.1/16" UNO	1/2" NPT	36mm	31.8mm	25.4mm	Mild steel	Plated finish
NSF-UNM-1214	7/8" UNO	3/4" NPT	35mm	25.4mm	25.4mm	Mild steel	Plated finish
NSF-UNM-1217	1.1/16" UNO	3/4" NPT	41mm	31.8mm	31.8mm	Mild steel	Plated finish

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
