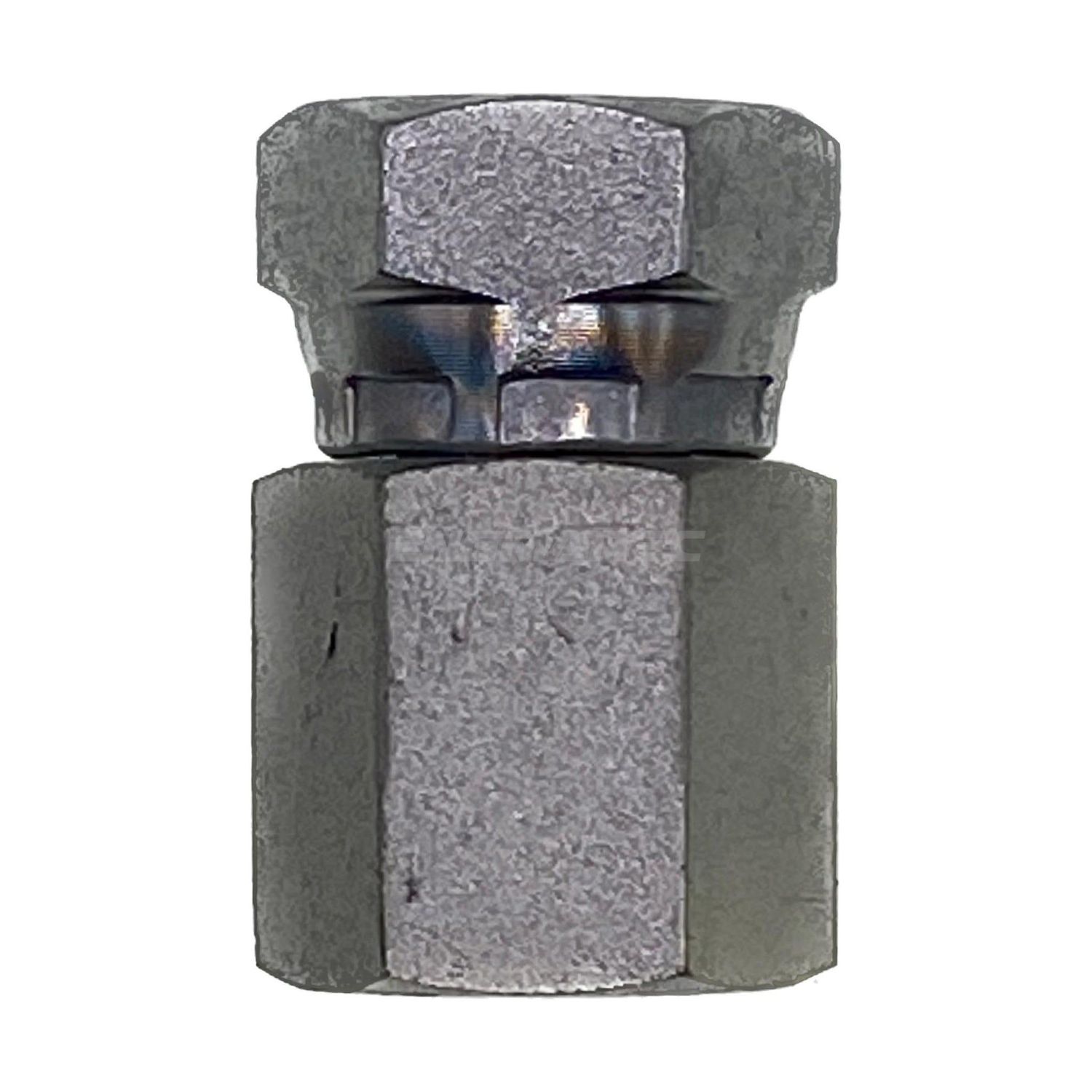

NPSM Swivel Female x NPT Tapered Female Straight Adaptor

NPSM swivel female one end, NPT tapered female the other. Two females on one part, used to join two male-ended American pipe-thread fittings back to back.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• NPSM Swivel Female – ANSI B1.20.1 straight pipe thread with a 60° internal cone. It seals on the cone seat rather than the thread, so it must not be taped.
• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread. It seals on the thread and needs tape or sealant every time.

How to Choose

• NPSM is a straight thread with a 30° internal seat and swivels. NPT is tapered and seals on the thread.
• The two look similar and share thread sizes. An NPT male into an NPSM female will bottom on the seat, not seal on the thread.
• Sealant on the NPT side only. The NPSM seat seals dry.

Technicians Advice

This is the pair most often mixed up in an American-built machine, because NPSM and NPT will start into each other. If the male winds in freely and then stops dead against a shoulder, you are on an NPSM seat and it needs no sealant.

Where You’ll Find It

• NPSM Swivel Female – Gauges, filter heads, sensors and return lines where the joint has to come apart regularly.
• NPT Tapered Female – Female side of American pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• NPSM Swivel Female – ANSI B1.20.1 straight pipe thread with a 60° internal seat. Written NPSM, sometimes called an NPT swivel.
• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
NSF-NTF-0404	1/4" NPT	1/4" NPT	31mm	17.5mm	17.5mm	Mild steel	Plated finish
NSF-NTF-0406	3/8" NPT	1/4" NPT	33mm	17.5mm	22.2mm	Mild steel	Plated finish
NSF-NTF-0606	3/8" NPT	3/8" NPT	33mm	22.2mm	22.2mm	Mild steel	Plated finish
NSF-NTF-0808	1/2" NPT	1/2" NPT	40mm	25.4mm	25.4mm	Mild steel	Plated finish
NSF-NTF-1212	3/4" NPT	3/4" NPT	41mm	31.8mm	31.8mm	Mild steel	Plated finish
NSF-NTF-1616	1" NPT	1" NPT	51mm	38.1mm	38.1mm	Mild steel	Plated finish

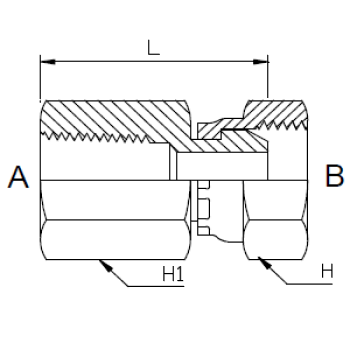

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
