NPT Tapered Male Blanking Plug

An NPT tapered male plug for blanking off an American pipe-thread port. Found on pumps, filter heads, gauge blocks and cylinder bodies.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• The tapered thread seals on itself and needs sealant.
• NPT is 60° and BSPT is 55°. They start into each other and chew out, so identify the port first.

Technicians Advice

Most cracked ports come from over-tightening a plug rather than a fitting, because a plug feels like it needs to be really tight to be safe. It does not. Hand tight plus two or three turns.

Where You’ll Find It

• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.

Cross-Reference

• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

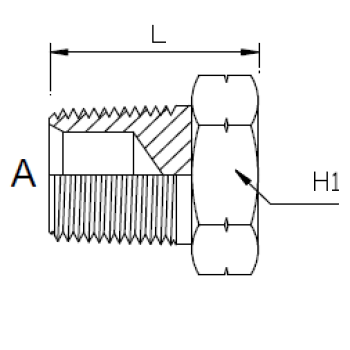

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	L	H1	Material	Finish
NTM-02	1/8" NPT	15mm	11.1mm	Mild steel	Plated finish
NTM-04	1/4" NPT	19mm	14.3mm	Mild steel	Plated finish
NTM-06	3/8" NPT	20mm	17.5mm	Mild steel	Plated finish
NTM-08	1/2" NPT	28mm	22.2mm	Mild steel	Plated finish
NTM-12	3/4" NPT	30mm	28.6mm	Mild steel	Plated finish
NTM-16	1" NPT	35mm	34.9mm	Mild steel	Plated finish
NTM-20	1.1/4" NPT	38mm	44.5mm	Mild steel	Plated finish
NTM-32	2" NPT	44mm	63.5mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
