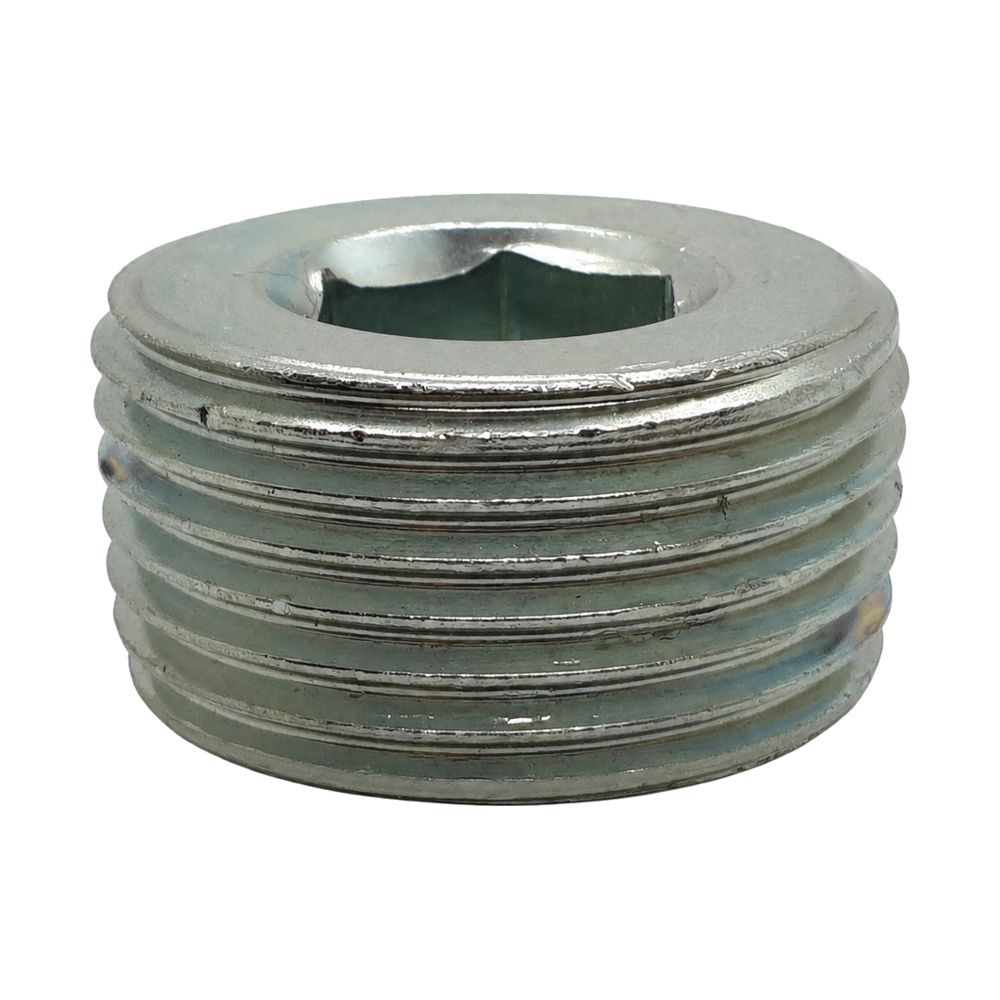

NPT Tapered Male Countersunk Blanking Plug

An NPT plug with an internal hex head that sits flush in the port. For blanking an NPT port where a hex head would be in the way.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• Countersunk means the head takes an internal hex key and sits flush or below the port face. Handy where there is no room for a spanner, but you need the right allen key on the truck.
• Tapered thread, so it still needs sealant on the thread.

Technicians Advice

Seat the allen key fully before you put any weight on it. A countersunk plug that rounds out in a live port is a drilling job, and it is always in the worst possible spot.

Where You’ll Find It

• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.

Cross-Reference

• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	L	Material	Finish
NTM-CS-02	1/8" NPT	8mm	Mild steel	Plated finish
NTM-CS-04	1/4" NPT	12mm	Mild steel	Plated finish
NTM-CS-06	3/8" NPT	12mm	Mild steel	Plated finish
NTM-CS-08	1/2" NPT	15mm	Mild steel	Plated finish
NTM-CS-12	3/4" NPT	16mm	Mild steel	Plated finish
NTM-CS-16	1" NPT	16mm	Mild steel	Plated finish

Key: L overall length. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
