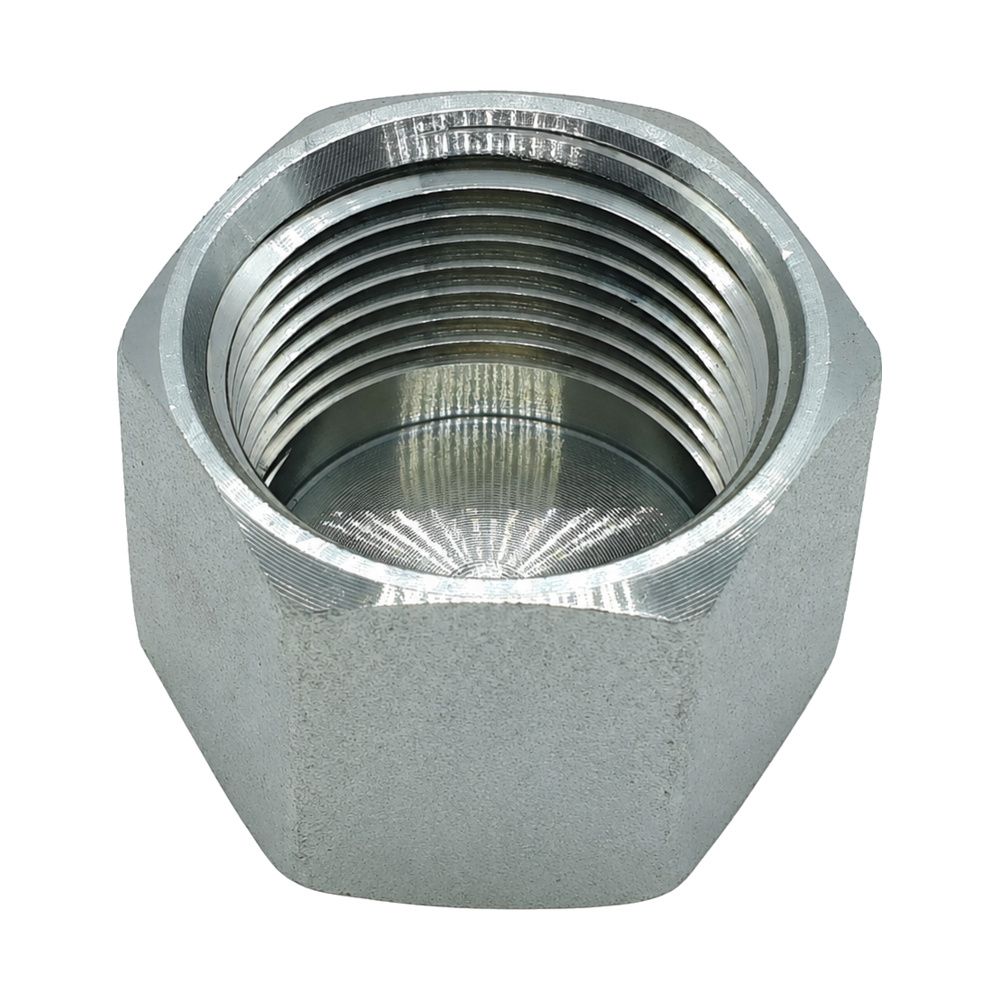

NPT Tapered Female Cap

An NPT tapered female cap for covering an exposed American pipe-thread male end.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread. It seals on the thread and needs tape or sealant every time.

How to Choose

• A cap is female and covers a male end. A plug is male and blocks a female port. Check which the open connection is before you order.
• The tapered thread seals on itself, so this one does need sealant if it is going on to stay.
• NPT is 60° and BSPT is 55°. Identify the male before you wind the cap on.

Technicians Advice

If the cap is only there while the machine is apart, hand tight is plenty and skip the sealant. If it is a permanent blank, seal it properly and treat it like any other tapered joint.

Where You’ll Find It

• NPT Tapered Female – Female side of American pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

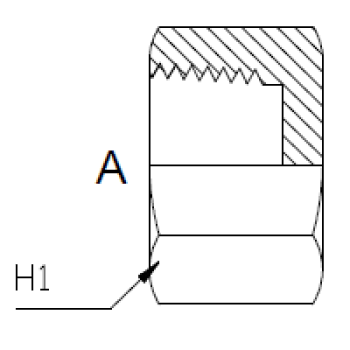

Part code	A	H	Material	Finish
NTF-04	1/4" NPT	14.3mm	Mild steel	Plated finish
NTF-06	3/8" NPT	17.5mm	Mild steel	Plated finish
NTF-08	1/2" NPT	22.2mm	Mild steel	Plated finish
NTF-12	3/4" NPT	31.8mm	Mild steel	Plated finish
NTF-16	1" NPT	38.1mm	Mild steel	Plated finish

Key: H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
