Motor and Engine Side Coupling Halves for Hydraulic Drives
SKU SGEA01M02028FG
AU$13.02
Bulk pricing available for quantities of 5 units or more
Frame / Shaft / Series
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 5 items | AU$12.37 | 5% off |
| 10 items | AU$11.72 | 10% off |
| 25 items | AU$11.39 | 13% off |
| 50 items | AU$11.07 | 15% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

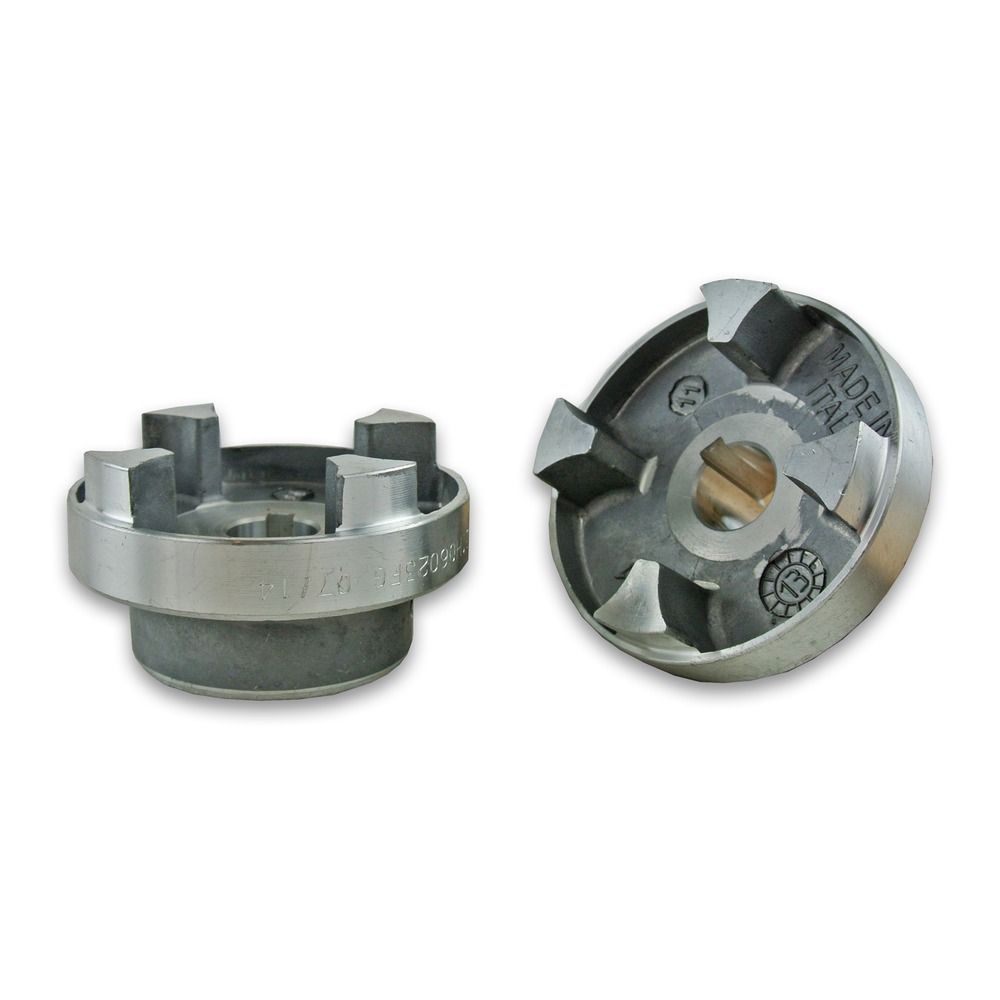

Motor and Engine Side Coupling Halves for Hydraulic Drives
Product Details
Weight: 0.40 kg
Motor & Engine Side Coupling Halves
The half that fits your electric motor or engine shaft. Series 0 to 6 jaw couplings in aluminium and cast iron, plus machinable pilot-bore blanks.
Remember - a complete drive needs four parts: bellhousing + motor-side half + pump-side half + rubber element. This listing covers one of them; the others are linked below.
Use the dropdown to choose. All prices include GST.
Suits: IEC motor shafts 14-65mm (D71-D250 frame) and petrol/diesel engine crankshafts 3/4in to 1-1/8in & 25mm.
Sizes & Part Numbers
| Fits | SKU |
|---|---|
| D71 Frame - 14mm Shaft - Series 0 | SGEA01M02028FG |
| 16mm Shaft - Series 0 | SGEA01C020282HFG |
| D80 Frame - 19mm Shaft - Series 0 | SGEA01M03048FG |
| D90 Frame - 24mm Shaft - Series 0 | SGEA01M04048FG |
| D80 Frame - 19mm Shaft - Series 2 | SGEA21M03048FG |
| D90 Frame - 24mm Shaft - Series 2 | SGEA21M04048FG |
| D100/112 Frame - 28mm Shaft - Series 2 | SGEA21M05055FG |
| D132 Frame - 38mm Shaft - Series 3 | SGEA31M06077FG |
| D100/112 Frame - 28mm Shaft - Series 4 Cast | SGEG40M05060 |
| D132 Frame - 38mm Shaft - Series 4 Cast | SGEG40M06080 |
| D160 Frame - 42mm Shaft - Series 4 Cast | SGEG40M07110 |
| D180 Frame - 48mm Shaft - Series 4 Cast | SGEG40M08110 |
| D160 Frame - 42mm Shaft - Series 5 | SGEA51M07109FG |
| D180 Frame - 48mm Shaft - Series 5 | SGEA51M08109FG |
| D200 Frame - 55mm Shaft - Series 5 | SGEA51M09109FG |
| D200 Frame - 55mm Shaft - Series 6 Cast | SGEG60M09110 |
| D225 Frame - 60mm Shaft - Series 6 Cast | SGEG60M10140 |
| D250 Frame - 65mm Shaft - Series 6 Cast | SGEG60M11140 |
| Engine 3-7HP - 3/4in Shaft - Series 0 | SGEA01G01050FG |
| Engine 9.5-20HP Petrol 7-18HP Diesel - 1in Shaft - Series 2 | SGEA21G040502FFG |
| Engine 20-38HP Petrol 23HP Diesel - 1-1/8in Shaft - Series 2 | SGEA21L02050FG |
| Engine 7-13HP - 25mm Shaft - Series 2 | SGEA21D02050FG |
| Pilot Bore (machine to size 19-23mm) - Series 0 | SGEA0100B050 |
| Pilot Bore (machine to size 14-18mm) - Series 2 | SGEA2100B050 |
| Pilot Bore (machine to size 18-27mm) - Series 3 | SGEA3100A060 |
| Pilot Bore (machine to size, max 55mm) - Series 4 Cast | SGEG408C |
| Pilot Bore (machine to size 19-23mm) - Series 5 | SGEA5100A070 |
| Pilot Bore (machine to size, max 75mm) - Series 6 Cast | SGEG60BC |
| Engine 3/4in Shaft - 48 Series | ND48CC22 |
| Engine 1in Shaft - 65 Series | ND65MC35 |
How to Choose
- Match the SERIES to your element and pump-side half - all three parts must be the same series (0/2/3/4/5/6).
- Motor halves: pick by motor frame and shaft diameter (frame D71=14mm shaft, D80=19, D90=24, D100/112=28, D132=38, D160=42, D180=48, D200=55, D225=60, D250=65).
- Engine halves: pick by engine HP and crank shaft size.
- Pilot bore = undrilled blank, machine to any shaft.
Technicians Advice
Fit the half flush with the shaft end unless engagement dictates otherwise, and always use the grub screw on the key - Loctite 243 on the thread. Series is sized by torque: as a rule Series 2 to 5.5kW, 3 to 11kW, 4/5 to 30kW, 6 above. When in doubt go up a series - the element is the fuse.
Official Datasheets
📄 Motor Side Halves Spec Sheet
Complete Your Drive
⭐ Complete Drive Kits - One Pick⚙ Bellhousings DIN⚙ Bellhousings SAE⚙ Engine Bellhousings⚙ Motor Side Halves⚙ Pump Side DIN⚙ Pump Side SAE⚙ Elements⚙ Flywheel Couplings⚙ Accessories
Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.
Not sure which combination you need? Call us on 1300 146 737 or email sales@mhfgc.com.au with your motor and pump details - we will spec the full drive for you.
