MiniPress DN2 Test Hose End Fittings - M16x2 DKOL DKOS BSPP JIC ORFS - Straight 45 and 90 Degree
Product Details
Brand: MiniPress
Weight: 0.02 kg
MiniPress DN2 Microbore Hose End Fittings – Build Any Test Hose
For workshops that crimp their own microbore test hoses: the full MiniPress DN2 fitting range, the same components Hydraulic.Online uses in our made-up assemblies. M16x2 test coupling nuts, metric DKOL/DKOS 24° cone, BSPP 60° cone swivels, BSPP/BSPT gauge fittings, JIC 74° and ORFS females — straight, 45° and 90° where the factory makes them, plus stainless versions of the common sizes. All crimp onto DN2 (2mm bore) micro hose with the standard ferrule.
Ways to buy:
- Off the shelf below — 56 fittings, dispatched fast.
- Hose and ferrules are on our DN2 hose listing (button below) — hose by the metre, ferrules each.
- Rather buy the finished article? Our made-up test hose assemblies are pressure-ready — button below.
Pick your item
| Item | SKU |
|---|---|

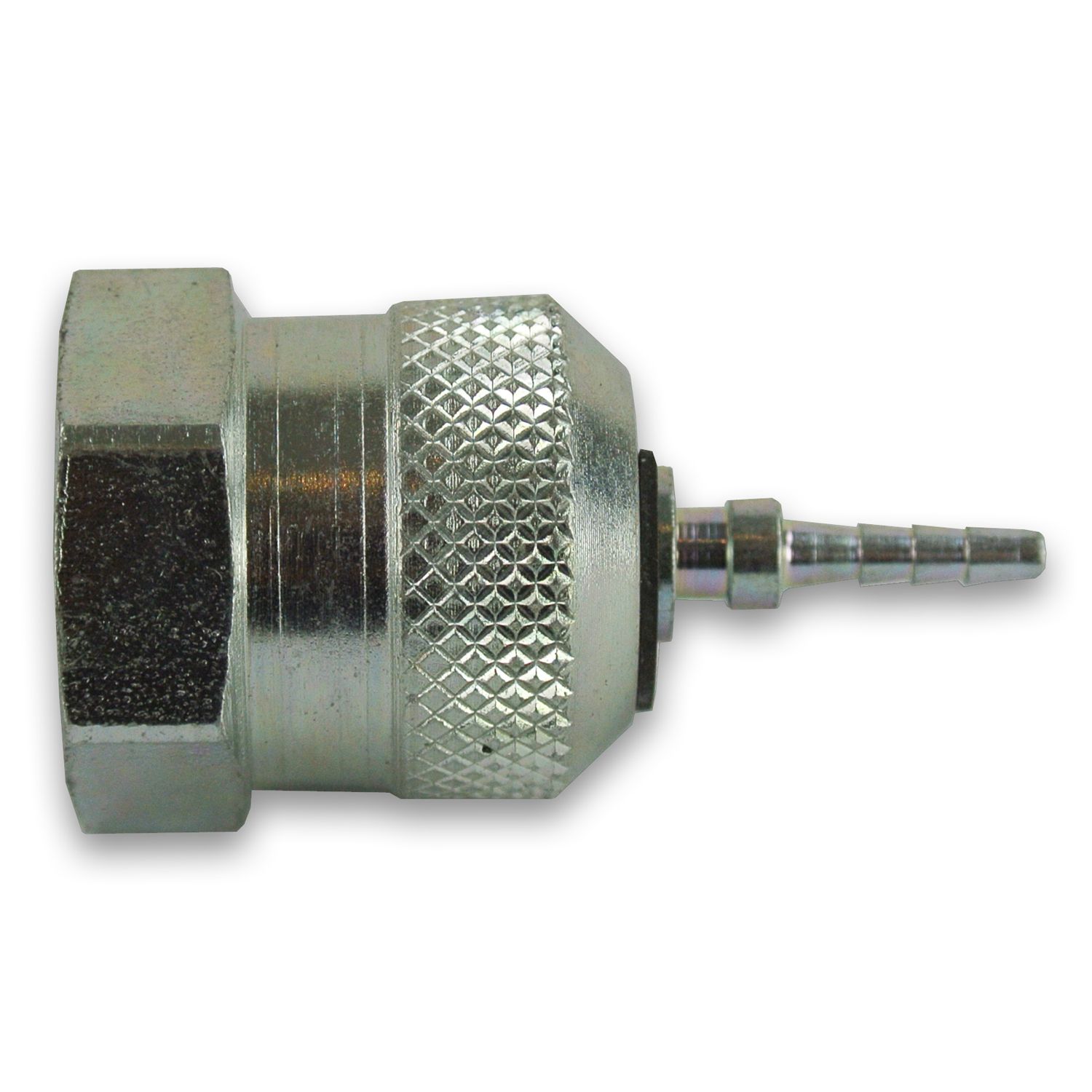

| FEMALE FITTING M16X2 HEXAGON NUT SS | 31TN6AI0 |
| FEMALE FITTING M16X2 W/HEXAGON.NUT | 31TTN600 |
| 45° FEMALE FITTING M16X2 W/HEXAGON.NUT | 31TTN640 |
| 90° FEMALE FITTING M16X2 W/HEXAGON.NUT | 31TTN690 |
| DKOL 24° 6L M12X1 5 FITTING | 35R00000 |
| 45° DKOL 24° 6L M12X1 5 FITTING | 35R00040 |
| 90° DKOL 24° 6L M12X1 5 FITTING | 35R00090 |
| DKOS 24° 6S M14X1 5 FITTING | 35R10000 |
| 45° DKOS 24° 6S M14X1 5 FITTING | 35R10040 |
| 90° DKOS 24° 6S M14X1 5 FITTING | 35R10090 |
| DKOL 24° 8L M14X1 5 FITTING | 35R20000 |
| 45° DKOL 24° 8L M14X1 5 FITTING | 35R20040 |
| 90° DKOL 24° 8L M14X1 5 FITTING | 35R20090 |
| DKOS 24° 8S M16X1 5 FITTING | 35R30000 |
| 45° DKOS 24° 8S M16X1 5 FITTING | 35R30040 |
| 90° DKOS 24° 8S M16X1 5 FITTING | 35R30090 |
| DKOS 24° 10S M18X1 5 FITTING | 35R40000 |
| 45° DKOS 24° 10S M18X1 5 FITTING | 35R40040 |
| 90° DKOS 24° 10S M18X1 5 FITTING | 35R40090 |
| DKOL 24° 10L M16X1 5 FITTING | 35R50000 |
| 45° DKOL 24° 10L M16X1 5 FITTING | 35R50040 |
| 90° DKOL 24° 10L M16X1 5 FITTING | 35R50090 |
| DKOL 24° 12L M18X1 5 FITTING | 35R60000 |
| DKOS 24° 12S M20X1 5 FITTING | 35R70000 |
| GAUGE FITTING 1/2"G | 36120000 |
| 45° GAUGE FITTING 1/2"G | 36120040 |
| 90° GAUGE FITTING 1/2"G | 36120090 |
| GAUGE FITTING 1/4"G | 36140000 |
| 45° GAUGE FITTING 1/4"G | 36140040 |
| 90° GAUGE FITTING 1/4"G | 36140090 |
| GAUGE FITTING 1/4"G SS | 3614AI00 |
| SWIVEL FEMALE FITTING 60°CONE G 1/4" | 38140000 |
| 45° SWIVEL FEMALE FITTING 60°CONE G1/4" | 38140040 |
| 90° SWIVEL FEMALE FITTING 60°CONE G1/4" | 38140090 |
| SWIVEL FEMALE FITTING 60°CONE G 1/8" | 38180000 |
| 45° SWIVEL FEMALE FITTING 60°CONE G1/8" | 38180040 |
| 90° SWIVEL FEMALE FITTING 60°CONE G1/8" | 38180090 |
| SWIVEL FEMALE FITTING G 3/8" | 38380000 |
| DKJ JIC74° 7/16"-20UNF FITTING | 39160000 |
| 45° DKJ JIC74° 7/16"-20UNF FITTING | 39160040 |
| 90° DKJ JIC74° 7/16"-20UNF FITTING | 39160090 |
| DKJ JIC74° 7/16"-20UNF FITTING SS | 3916AI00 |
| DKJ JIC74° 9/16"-18UNF FITTING | 3991J000 |
| C FORM R1/4" MALE FITTING | 44MFC140 |
| FORM C R1/8" MALE FITTING | 44MFC180 |
| FLAT FORM B G1/4 MALE FITTING | 44MFD140 |
| FLAT FORM B G1/8 MALE FITTING | 44MFD180 |
| FORM B 60° 1/4" MALE FITTING | 44MFM140 |
| FORM B 60° 1/8" MALE FITTING | 44MFM180 |
| DKOLL 24° 4LL M8X1 FITTING | 46R00000 |
| DKOLL 24° 6LL M10X1 FITTING | 46R10000 |
| 45° DKOLL 24° 6LL M10X1 FITTING | 46R10040 |
| 90° DKOLL 24° 6LL M10X1 FITTING | 46R10090 |
| ORFS Female Fitting 9/16 UNF | 5991F000 |
| ORFS Female Fitting 9/16 UNF 45 Deg | 5991F040 |
| ORFS Female Fitting 9/16 UNF 90 Deg | 5991F090 |
What is in the box
1 x MiniPress DN2 hose end fitting as selected.
Specifications
| Brand | MiniPress (Italy) |
| Hose | DN2 (2mm bore) microbore test hose, crimp attachment with ferrule |
| Connection families | M16x2 test coupling nut, DKOL/DKOS 24° metric, BSPP 60° cone, BSPP/BSPT gauge, JIC 74°, ORFS |
| Angles | Straight, 45°, 90° (per range) |
| Material | Zinc-plated carbon steel; stainless AISI 316 on marked SKUs |
How to choose
- The M16x2 female nut (31TTN series) is the standard test-hose end — it is what screws onto a test point.
- DKOL = metric light series 24° cone, DKOS = metric heavy; match the tube fitting on your machine.
- Gauge fittings (36 series) put a BSPP gauge thread straight on the hose end; 60° cone swivels (38 series) suit BSP adaptors.
- Every hose end needs a ferrule — order them with the hose on the DN2 hose listing.
Technicians Advice
Microbore crimping is its own trade: the DN2 ferrule wants a proper microhose crimp die, not the 2-wire die on the corner of your bench — an under-crimped test hose lets go at 400 bar right beside someone's face, and an over-crimp necks the 2mm bore shut so the gauge reads slow or not at all. Cut the hose square with a fine blade (never side cutters — they oval the bore), push the fitting home to the stop before crimping, and test every assembly to working pressure before it goes on a machine. If you are making fewer than a handful a year, our made-up assemblies are cheaper than the die set.
Official Datasheets
📄 MiniPress DN2 Fittings and Ferrules Factory Specification (PDF)
