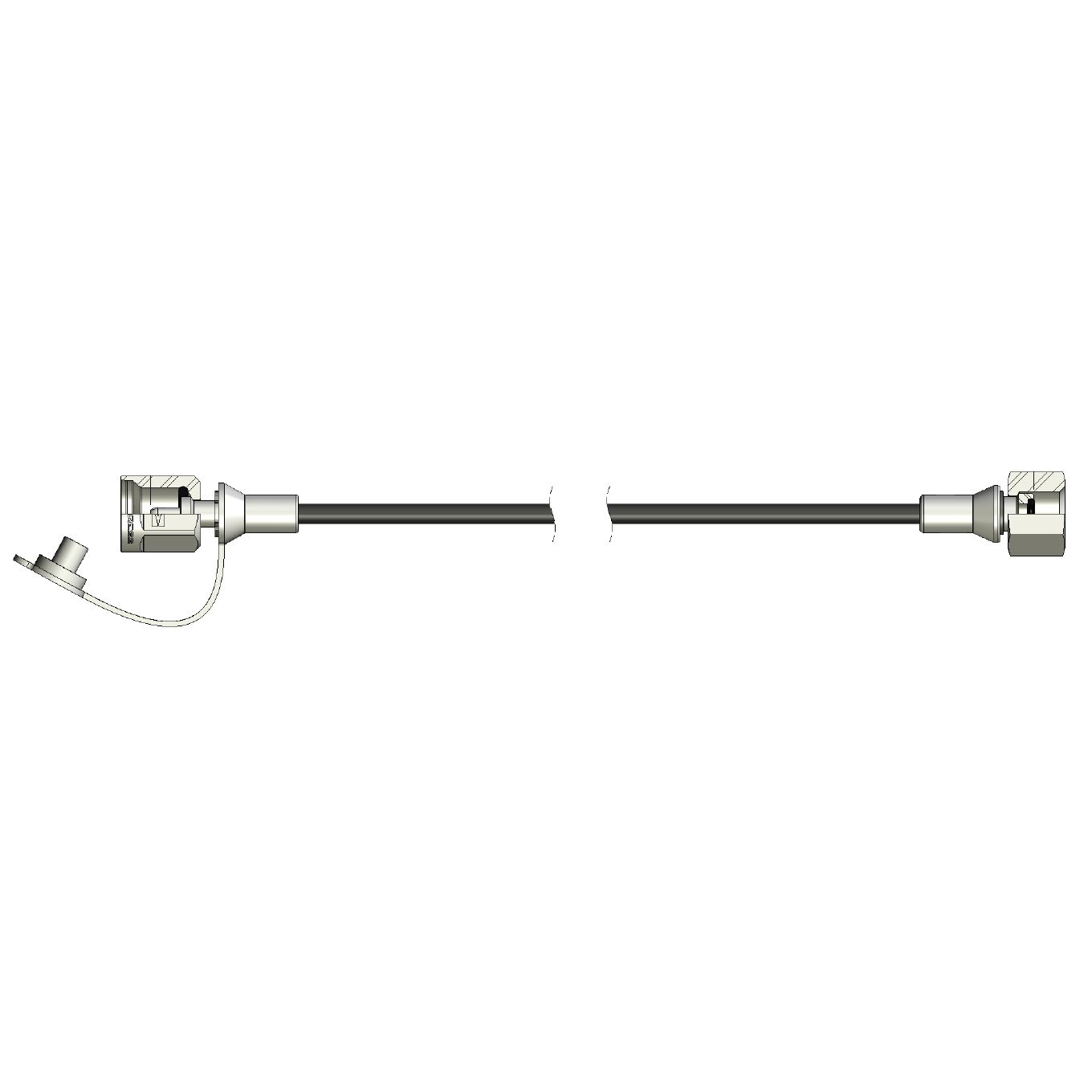

MiniPress DN2 Microbore Test Hose – By the Metre – Plus Crimp Ferrules

Bulk DN2 microbore hose for workshops building their own test hoses: 2mm bore, 5mm OD, Kevlar aramid braid, rated to 630 bar (9,135 psi) working pressure — the same Italian MiniPress hose in our made-up assemblies. Sold by the metre (enter the metres you need as the quantity), with the matching crimp ferrules each.

Ways to buy:

• Hose by the metre and ferrules below — end fittings are on the DN2 fittings listing.
• Want it done for you? Our made-up assemblies are crimped, pressure-ready and cheaper than tooling up for a handful.

Pick your item

What is in the box

Hose: cut length, capped ends. Ferrules: loose, each.

Specifications

How to choose

• Order hose in whole metres (quantity = metres); allow 30mm of hose inside each fitting when measuring.
• Two ferrules per assembly — one each end.

Technicians Advice

Kevlar braid does not like a tight bend radius at the fitting: leave a straight run of at least 50mm behind each crimp or the hose works itself loose right at the ferrule. Cut square with a fine blade, never side cutters, and blow the bore through before crimping — a 2mm bore blocks on a whisker of braid fluff. Pressure-test every home-made assembly before it meets a machine.

Official Datasheets

📄 MiniPress DN2 Fittings and Ferrules Factory Specification (PDF)

Complete your setup

DN2 Hose End FittingsMade-Up Test Hose AssembliesM16x2 Test Points

Ships from our Melbourne, Brisbane and Perth warehouses — fast delivery Australia-wide.

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
