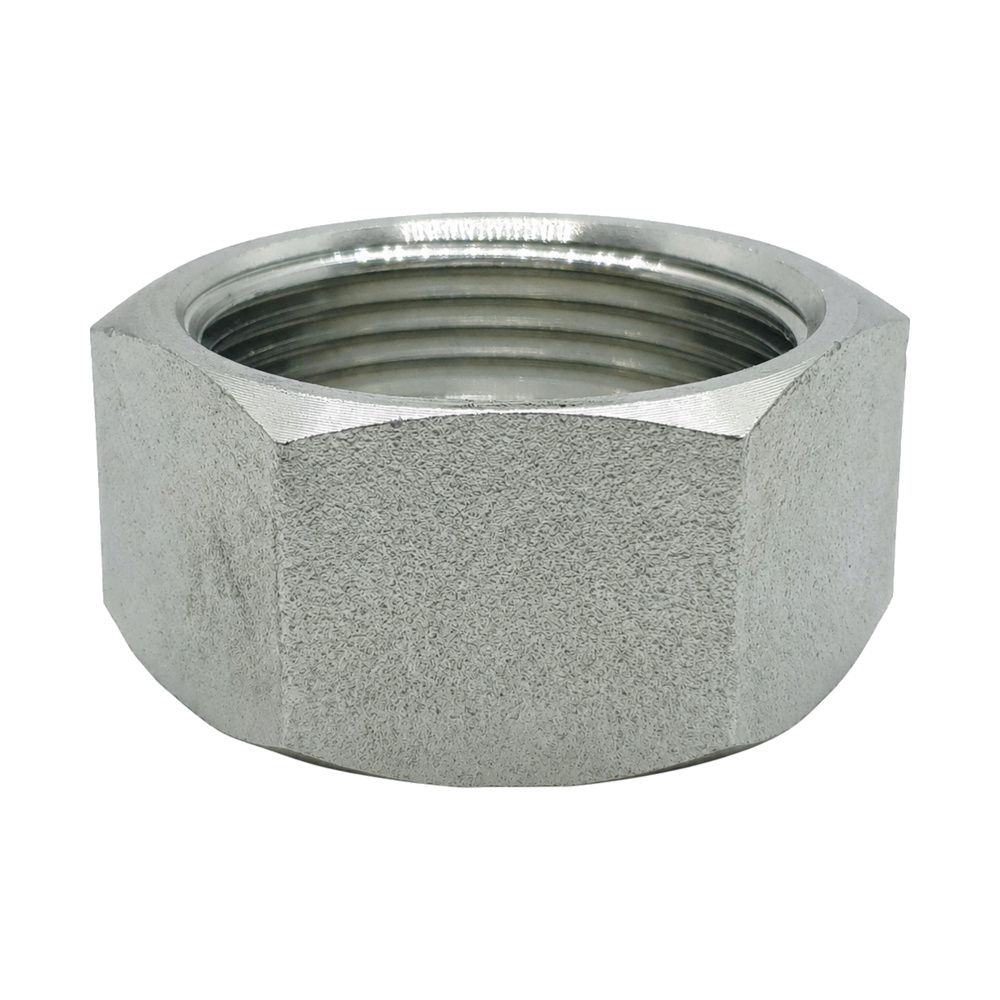

Metric Light (L) Tube Nuts

Replacement tube nuts for light series DIN 2353 metric tube assemblies.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.

How to Choose

• This is a spare part, sold on its own so a damaged one does not mean replacing the whole assembly.
• Light (L) and heavy (S) nuts do not interchange. Go by the series on the existing assembly.
• The nut clamps; the cutting ring and cone seal.

Technicians Advice

Change the ring with the nut. And go easy on the torque, because light series is easy to over-tighten and crushing the ring deforms the tube behind it.

Where You’ll Find It

• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.

Cross-Reference

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	F	L	S	Material	Finish
MLN-12	M12x1.5 (12L)	15.5mm	14mm	Mild steel	Plated finish
MLN-14	M14x1.5 (8L)	14.5mm	17mm	Mild steel	Plated finish
MLN-16	M16x1.5 (10L)	15.5mm	19mm	Mild steel	Plated finish
MLN-18	M18x1.5 (12L)	16.5mm	22mm	Mild steel	Plated finish
MLN-22	M22x1.5 (15L)	17mm	27mm	Mild steel	Plated finish
MLN-26	M26x1.5 (18L)	18mm	32mm	Mild steel	Plated finish
MLN-30	M30x2 (22L)	20mm	36mm	Mild steel	Plated finish
MLN-36	M36x2 (28L)	21mm	41mm	Mild steel	Plated finish
MLN-45	M45x2 (35L)	24mm	50mm	Mild steel	Plated finish
MLN-52	M52x2 (42L)	24mm	60mm	Mild steel	Plated finish

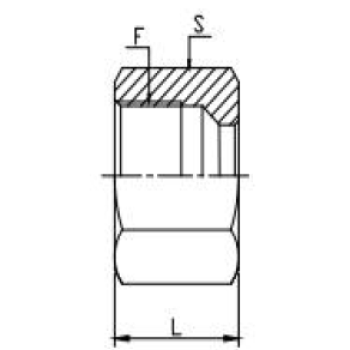

Key: L overall length, S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
