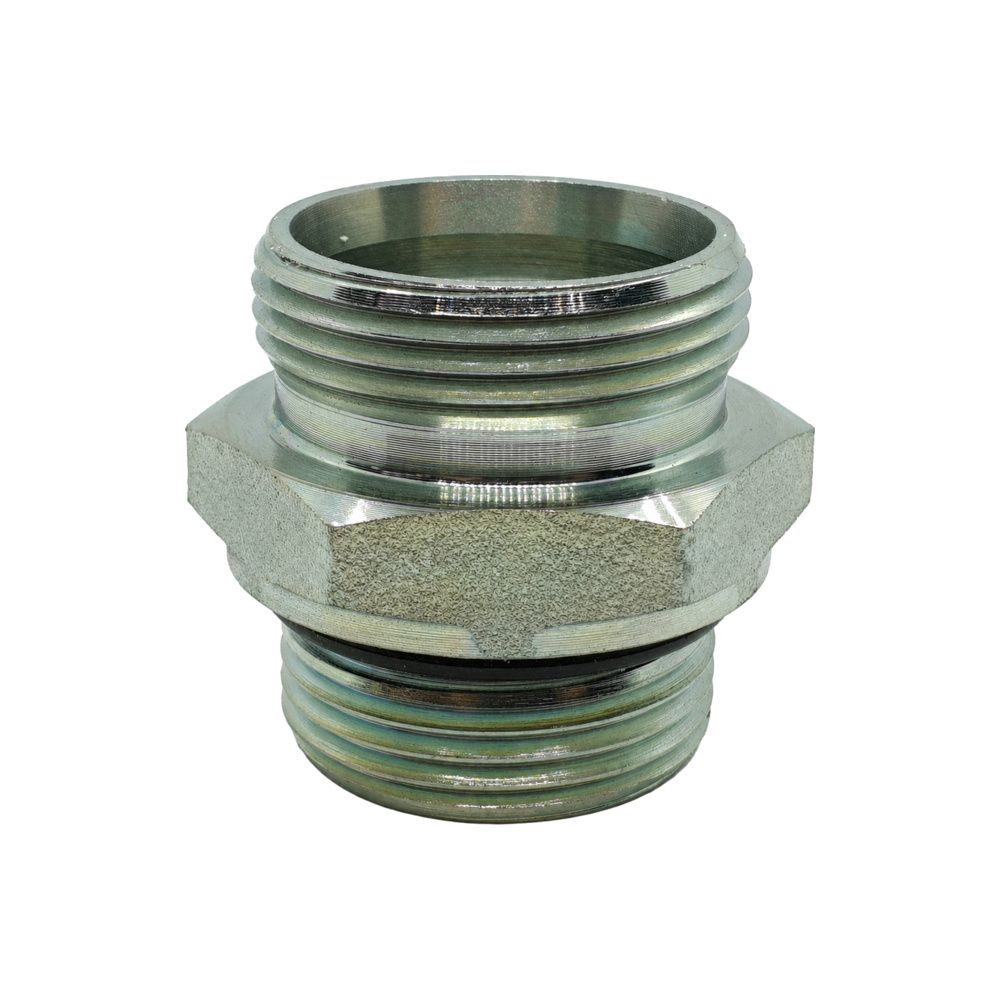

Metric Light (L) Male x UNO O-Ring Boss Male Straight Adaptor

Light series metric one end, SAE O-ring boss the other. The usual way European tube work gets into the UNO ports on American pumps, motors, valves and cylinders.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: 90 ° Hydraulic Adaptors How They Work and the Importance of O'Rings

Thread Standards

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. It seals on an O-ring squeezed against the port spotface, not on the thread.

How to Choose

• The UNO end seals on the O-ring against the port spotface, not on the thread.
• The metric end is a 24° cone. Check whether the mating part is plain or carries an O-ring in the cone.
• Light series suits return, drain and pilot work. Step up to heavy series where the pressure warrants it.

Technicians Advice

Ease the O-ring over the UNO thread with a smear of clean hydraulic oil rather than dragging it on dry. A ring nicked on the thread going in will look fine from the outside and weep from day one.

Where You’ll Find It

• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.
• SAE O-Ring Boss Male (UNO/UNF) – Cylinder end caps, pump and valve bosses on US-built plant. Common on Australian-assembled cylinders too, where it is usually called UNO.

Cross-Reference

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. Also written ORB, SAE ORB or UNO. Thread form is UN/UNF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

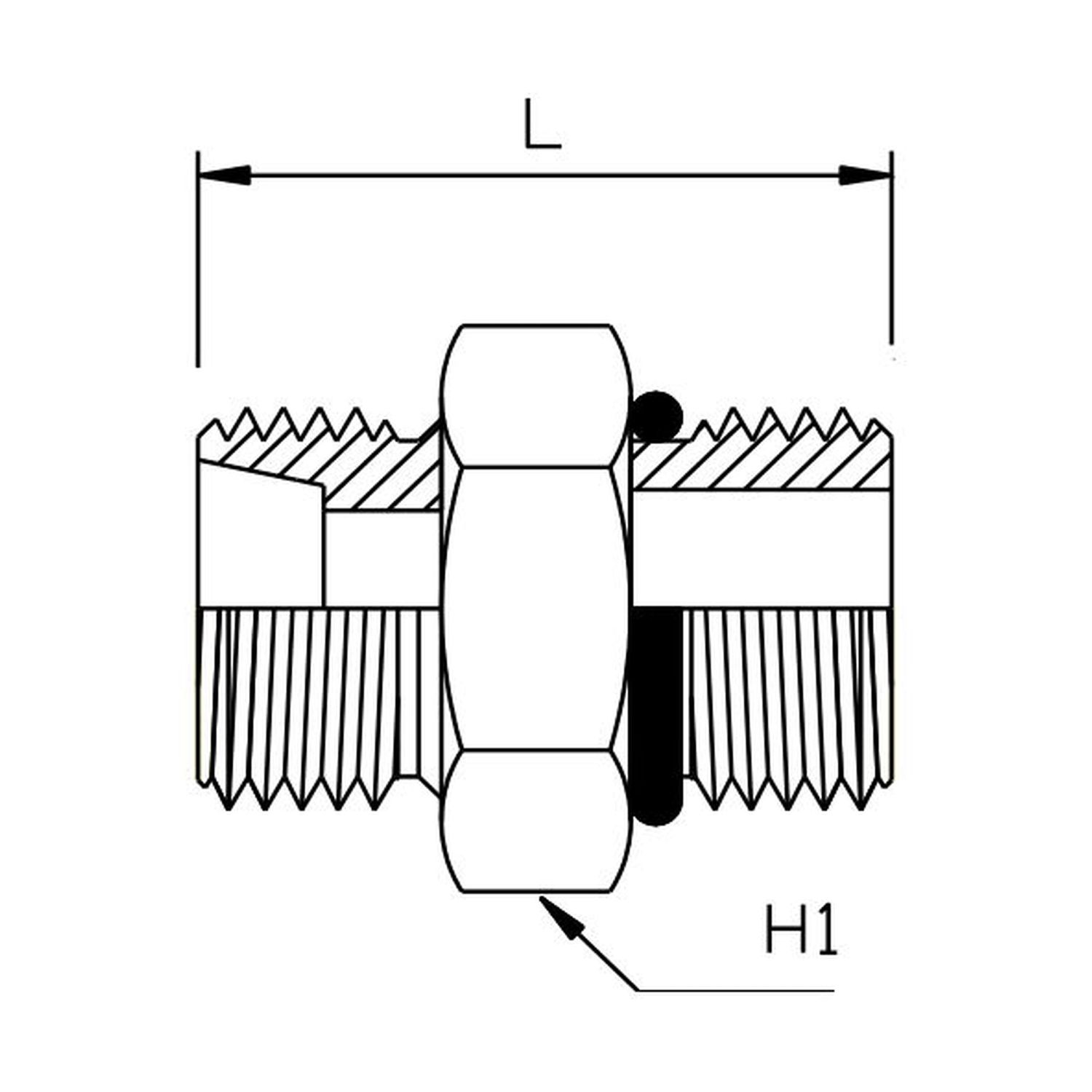

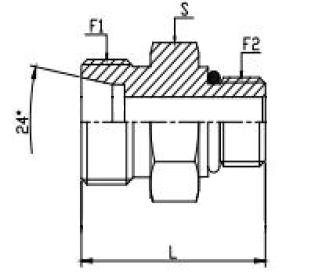

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S	Material	Finish
MLM-UNM-1207	M12x1.5 (6L)	7/16"UNO	M12x1.5 (6L)	7/16"UNO	26mm	14mm	Mild steel	Plated finish
MLM-UNM-1407	M14x1.5 (8L)	7/16"UNO	M14x1.5 (8L)	7/16"UNO	26mm	14mm	Mild steel	Plated finish
MLM-UNM-1409	M14x1.5 (8L)	9/16"UNO	M14x1.5 (8L)	9/16"UNO	27.5mm	17mm	Mild steel	Plated finish
MLM-UNM-1412	M14x1.5 (8L)	3/4"UNO	M14x1.5 (8L)	3/4"UNO	30mm	22mm	Mild steel	Plated finish
MLM-UNM-1607	M16x1.5 (10L)	7/16"UNO	M16x1.5 (10L)	7/16"UNO	27mm	17mm	Mild steel	Plated finish
MLM-UNM-1609	M16x1.5 (10L)	9/16"UNO	M16x1.5 (10L)	9/16"UNO	31mm	19mm	Mild steel	Plated finish
MLM-UNM-1614	M16x1.5 (10L)	7/8"UNO	M16x1.5 (10L)	7/8"UNO	34mm	27mm	Mild steel	Plated finish
MLM-UNM-1809	M18x1.5 (12L)	9/16"UNO	M18x1.5 (12L)	9/16"UNO	28mm	19mm	Mild steel	Plated finish
MLM-UNM-1814	M18x1.5 (12L)	7/8"UNO	M18x1.5 (12L)	7/8"UNO	34mm	27mm	Mild steel	Plated finish
MLM-UNM-2214	M22x1.5 (15L)	7/8"UNO	M22x1.5 (15L)	7/8"UNO	35mm	27mm	Mild steel	Plated finish
MLM-UNM-2217	M22x1.5 (15L)	1-1/16"UNO	M22x1.5 (15L)	1-1/16"UNO	35mm	27mm	Mild steel	Plated finish
MLM-UNM-2612	M26x1.5 (18L)	3/4"UNO	M26x1.5 (18L)	3/4"UNO	33mm	27mm	Mild steel	Plated finish
MLM-UNM-2614	M26x1.5 (18L)	7/8"UNO	M26x1.5 (18L)	7/8"UNO	35mm	27mm	Mild steel	Plated finish
MLM-UNM-3014	M30x2 (22L)	7/8"UNO	M30x2 (22L)	7/8"UNO	37mm	32mm	Mild steel	Plated finish
MLM-UNM-3017	M30x2 (22L)	1.1/16"UNO	M30x2 (22L)	1.1/16"UNO	39mm	32mm	Mild steel	Plated finish
MLM-UNM-3021	M30x2 (22L)	1.5/16"UNO	M30x2 (22L)	1.5/16"UNO	40mm	41mm	Mild steel	Plated finish
MLM-UNM-3617	M36x2 (28L)	1.1/16"UNO	M36x2 (28L)	1.1/16"UNO	40mm	41mm	Mild steel	Plated finish
MLM-UNM-3621	M36x2 (28L)	1.5/16"UNO	M36x2 (28L)	1.5/16"UNO	40mm	41mm	Mild steel	Plated finish
MLM-UNM-4521	M45x2 (35L)	1.5/16"UNO	M45x2 (35L)	1.5/16"UNO	43mm	46mm	Mild steel	Plated finish
MLM-UNM-4526	M45x2 (35L)	1.5/8"UNO	M45x2 (35L)	1.5/8"UNO	43mm	50mm	Mild steel	Plated finish
MLM-UNM-5226	M52x2 (42L)	1.5/8"UNO	M52x2 (42L)	1.5/8"UNO	50mm	55mm	Mild steel	Plated finish
MLM-UNM-5230	M52x2 (42L)	1.7/8"UNO	M52x2 (42L)	1.7/8"UNO	45mm	55mm	Mild steel	Plated finish
MLM-UNM-1612	M16x1.5 (10L)	3/4"UNO	M16x1.5 (10L)	3/4"UNO	30mm	24mm	Mild steel	Plated finish
MLM-UNM-1812	M18x1.5 (12L)	3/4"UNO	M18x1.5 (12L)	3/4"UNO	31mm	24mm	Mild steel	Plated finish
MLM-UNM-2212	M22x1.5 (15L)	3/4"UNO	M22x1.5 (15L)	3/4"UNO	32mm	24mm	Mild steel	Plated finish

Key: L overall length, S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
