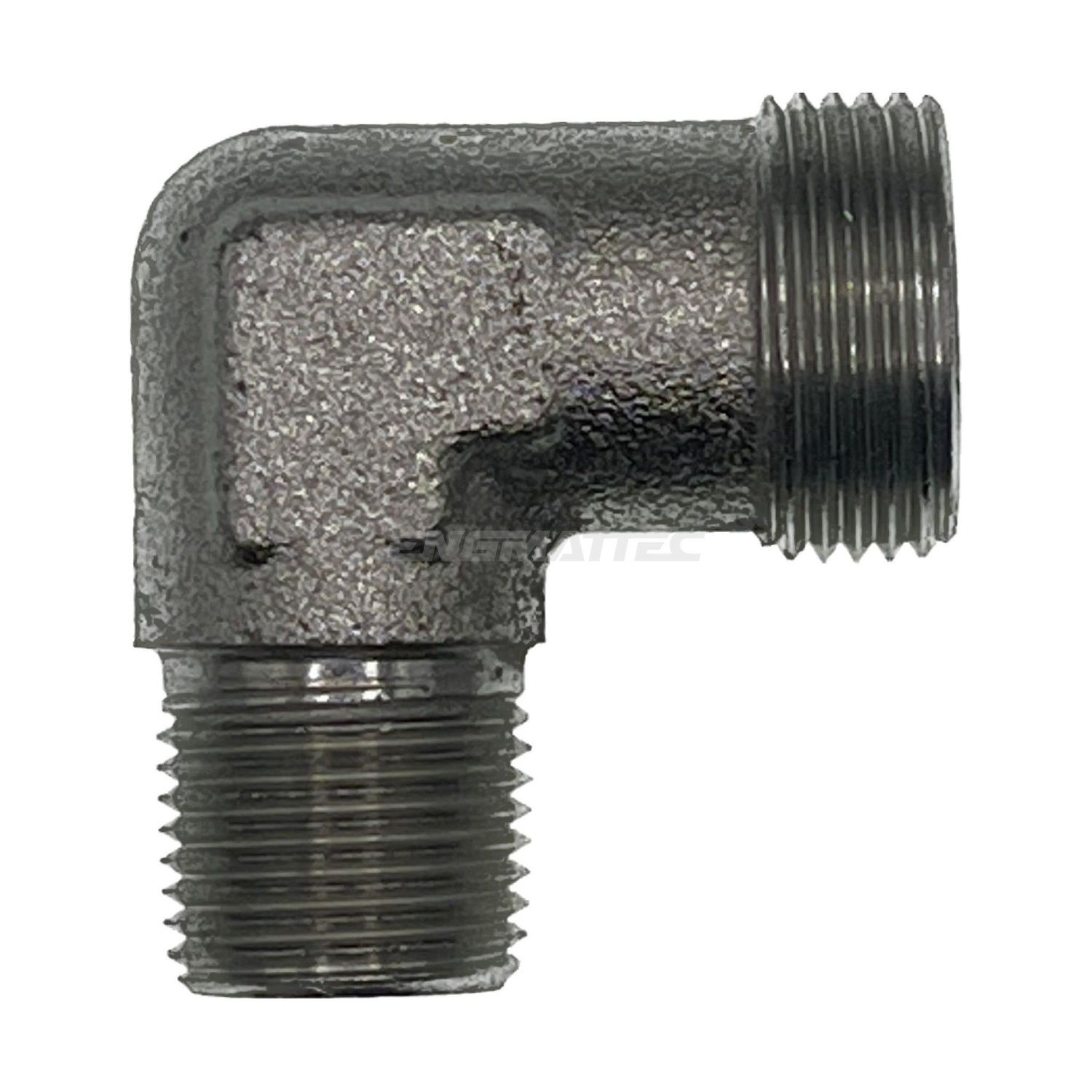

Metric Light (L) Male x NPT Tapered Male 90° Compact Elbow

European metric one end, American NPT the other, turned 90°. Turns up wherever imported plant has been repaired with whatever was on the shelf, which is most machines after a few years.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.

How to Choose

• The NPT end takes tape or sealant. The metric 24° cone stays dry.
• Confirm the metric series before ordering - light here, and heavy is not interchangeable.
• NPT sizes are nominal pipe sizes, so do not size them off a caliper alone.

Technicians Advice

Two different sealing systems on one fitting is where it goes wrong. Tape the NPT end only. If the metric end weeps, pull it apart and look at the cone for a witness mark rather than pulling harder - more torque on a 24° cone just flattens it.

Where You’ll Find It

• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.
• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.

Cross-Reference

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	S	Material	Finish
MLM-NTM-90C-1202	M12x1.5 (6L)	1/8" NPT	12mm	Mild steel	Plated finish
MLM-NTM-90C-1204	M12x1.5 (6L)	1/4" NPT	12mm	Mild steel	Plated finish
MLM-NTM-90C-1402	M14x1.5 (8L)	1/8" NPT	12mm	Mild steel	Plated finish
MLM-NTM-90C-1404	M14x1.5 (8L)	1/4" NPT	12mm	Mild steel	Plated finish
MLM-NTM-90C-1406	M14x1.5 (8L)	3/8" NPT	17mm	Mild steel	Plated finish
MLM-NTM-90C-1408	M14x1.5 (8L)	1/2" NPT	19mm	Mild steel	Plated finish
MLM-NTM-90C-1602	M16x1.5 (10L)	1/8" NPT	14mm	Mild steel	Plated finish
MLM-NTM-90C-1604	M16x1.5 (10L)	1/4" NPT	14mm	Mild steel	Plated finish
MLM-NTM-90C-1606	M16x1.5 (10L)	3/8" NPT	17mm	Mild steel	Plated finish
MLM-NTM-90C-1608	M16x1.5 (10L)	1/2" NPT	19mm	Mild steel	Plated finish
MLM-NTM-90C-1804	M18x1.5 (12L)	1/4" NPT	17mm	Mild steel	Plated finish
MLM-NTM-90C-1806	M18x1.5 (12L)	3/8" NPT	17mm	Mild steel	Plated finish
MLM-NTM-90C-1808	M22x1.5 (15L)	1/2" NPT	22mm	Mild steel	Plated finish
MLM-NTM-90C-2206	M22x1.5 (15L)	3/8" NPT	19mm	Mild steel	Plated finish
MLM-NTM-90C-2208	M22x1.5 (15L)	1/2" NPT	19mm	Mild steel	Plated finish
MLM-NTM-90C-2608	M26x1.5 (18L)	1/2" NPT	24mm	Mild steel	Plated finish
MLM-NTM-90C-2612	M26x1.5 (18L)	3/4" NPT	27mm	Mild steel	Plated finish
MLM-NTM-90C-3012	M30x2 (22L)	3/4" NPT	27mm	Mild steel	Plated finish
MLM-NTM-90C-3616	M36x2 (28L)	1" NPT	36mm	Mild steel	Plated finish
MLM-NTM-90C-4520	M45x2 (35L)	1.1/4" NPT	41mm	Mild steel	Plated finish
MLM-NTM-90C-5224	M52x2 (42L)	1.1/2" NPT	50mm	Mild steel	Plated finish

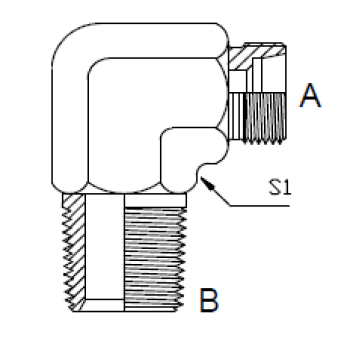

Key: S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 Straight – same threads
