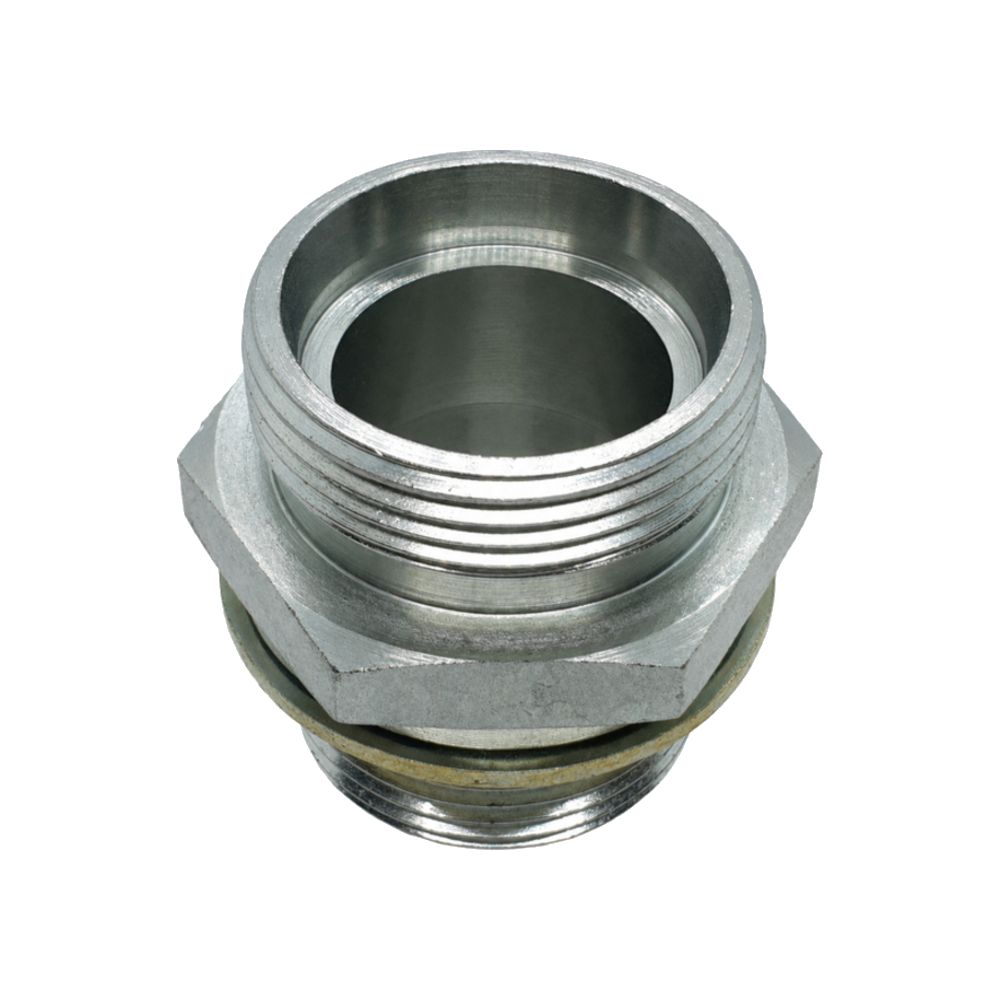

Metric Light (L) Male x Metric Stud Male Straight Adaptor

Light series 24° cone one end, metric stud with a soft seal the other. Runs an L series tube line straight into a metric port on a European valve block, pump or gearbox.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.
• Metric Stud Male – metric straight thread with a captive soft seal. It seals on a bonded washer or O-ring under the stud shoulder, not on the thread.

How to Choose

• The cone end seals on the 24° face, the stud end seals on a washer or O-ring under the shoulder. Different jobs, different checks.
• The stud is a straight thread and takes no sealant. The port face under it does the sealing, so it needs to be flat and clean.
• Light series is the lower pressure metric range. Check the circuit before you use it on the pump side.

Technicians Advice

The soft seal under the stud shoulder is a one-use item. Reusing a flattened washer is far and away the most common reason a metric port comes back weeping, and a new one costs less than the trip out to look at it.

Where You’ll Find It

• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.
• Metric Stud Male – European valve blocks and manifolds using a metric port with a soft seal under the shoulder.

Cross-Reference

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.
• Metric Stud Male – Metric straight thread with a bonded washer or O-ring. Confirm the port series against the block before ordering.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	S	Material	Finish
MLM-MSM-1210	M12x1.5 (6L)	M10x1	23.5mm	14mm	Mild steel	Plated finish
MLM-MSM-1212	M12x1.5 (6L)	M12x1.5	30mm	17mm	Mild steel	Plated finish
MLM-MSM-1410	M14x1.5 (8L)	M10x1	23.5mm	–	Mild steel	Plated finish
MLM-MSM-1412	M14x1.5 (8L)	M12x1.5	29mm	17mm	Mild steel	Plated finish
MLM-MSM-1414	M14x1.5 (8L)	M14x1.5	29mm	19mm	Mild steel	Plated finish
MLM-MSM-1418	M14x1.5 (8L)	M18x1.5	30.5mm	24mm	Mild steel	Plated finish
MLM-MSM-1422	M14x1.5 (8L)	M22x1.5	34mm	27mm	Mild steel	Plated finish
MLM-MSM-1614	M16x1.5 (10L)	M14x1.5	30mm	19mm	Mild steel	Plated finish
MLM-MSM-1616	M16x1.5 (10L)	M16x1.5	31.5mm	22mm	Mild steel	Plated finish
MLM-MSM-1618	M16x1.5 (10L)	M18x1.5	31.5mm	24mm	Mild steel	Plated finish
MLM-MSM-1622	M16x1.5 (10L)	M22x1.5	35mm	27mm	Mild steel	Plated finish
MLM-MSM-1814	M18x1.5 (12L)	M14x1.5	31.5mm	19mm	Mild steel	Plated finish
MLM-MSM-1816	M18x1.5 (12L)	M16x1.5	31.5mm	–	Mild steel	Plated finish
MLM-MSM-1818	M18x1.5 (12L)	M18x1.5	31.5mm	24mm	Mild steel	Plated finish
MLM-MSM-1822	M18x1.5 (12L)	M22x1.5	35mm	27mm	Mild steel	Plated finish
MLM-MSM-2216	M22x1.5 (15L)	M16x1.5	32.5mm	24mm	Mild steel	Plated finish
MLM-MSM-2218	M22x1.5 (15L)	M18x1.5	32.5mm	24mm	Mild steel	Plated finish
MLM-MSM-2222	M22x1.5 (15L)	M22x1.5	36mm	27mm	Mild steel	Plated finish
MLM-MSM-2618	M26x1.5 (18L)	M18x1.5	31.5mm	24mm	Mild steel	Plated finish
MLM-MSM-2622	M26x1.5 (18L)	M22x1.5	36mm	27mm	Mild steel	Plated finish
MLM-MSM-3022	M30x1.5 (22L)	M22x1.5	38mm	32mm	Mild steel	Plated finish
MLM-MSM-3026	M30x1.5 (22L)	M26x1.5	40mm	32mm	Mild steel	Plated finish
MLM-MSM-3633	M36x1.5 (28L)	M33x2	43mm	41mm	Mild steel	Plated finish
MLM-MSM-4542	M45x1.5 (35L)	M42x2	48mm	50mm	Mild steel	Plated finish
MLM-MSM-5248	M52x1.5 (42L)	M48x2	52mm	55mm	Mild steel	Plated finish

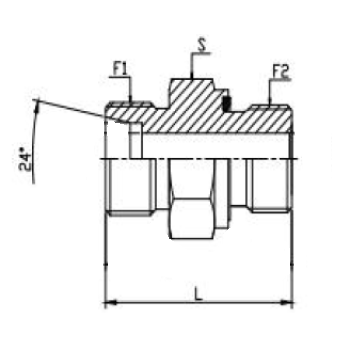

Key: L overall length, S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
