Metric Light Male x Metric Light Male Straight
SKU MLM-MLM-1212
AU$1.80
On Sale
was AU$3.50 Save 49%
Size
Please choose
In stock: 68 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Metric Light Male x Metric Light Male Straight
Product Details
Brand: Engmattec
Weight: 0.10 kg

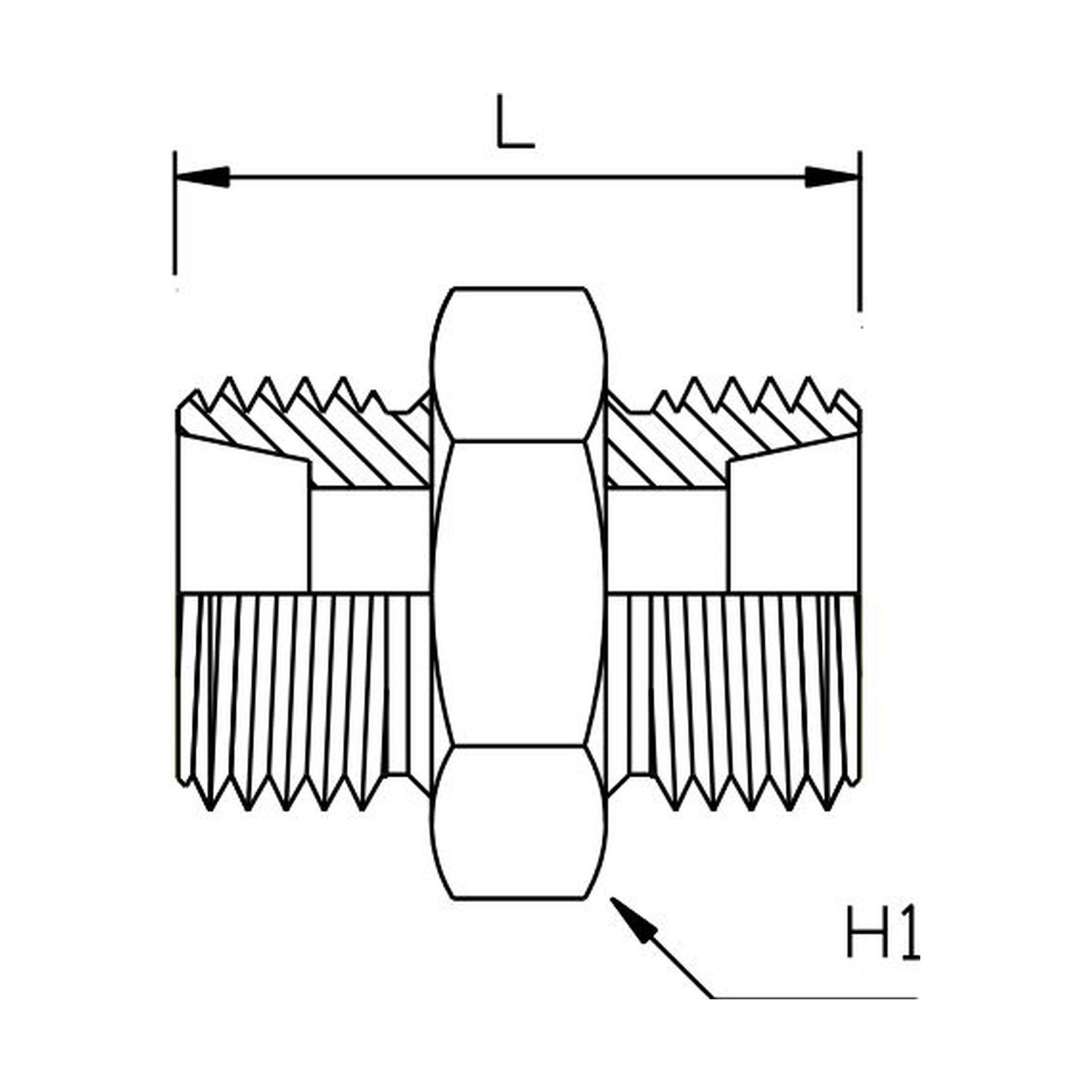

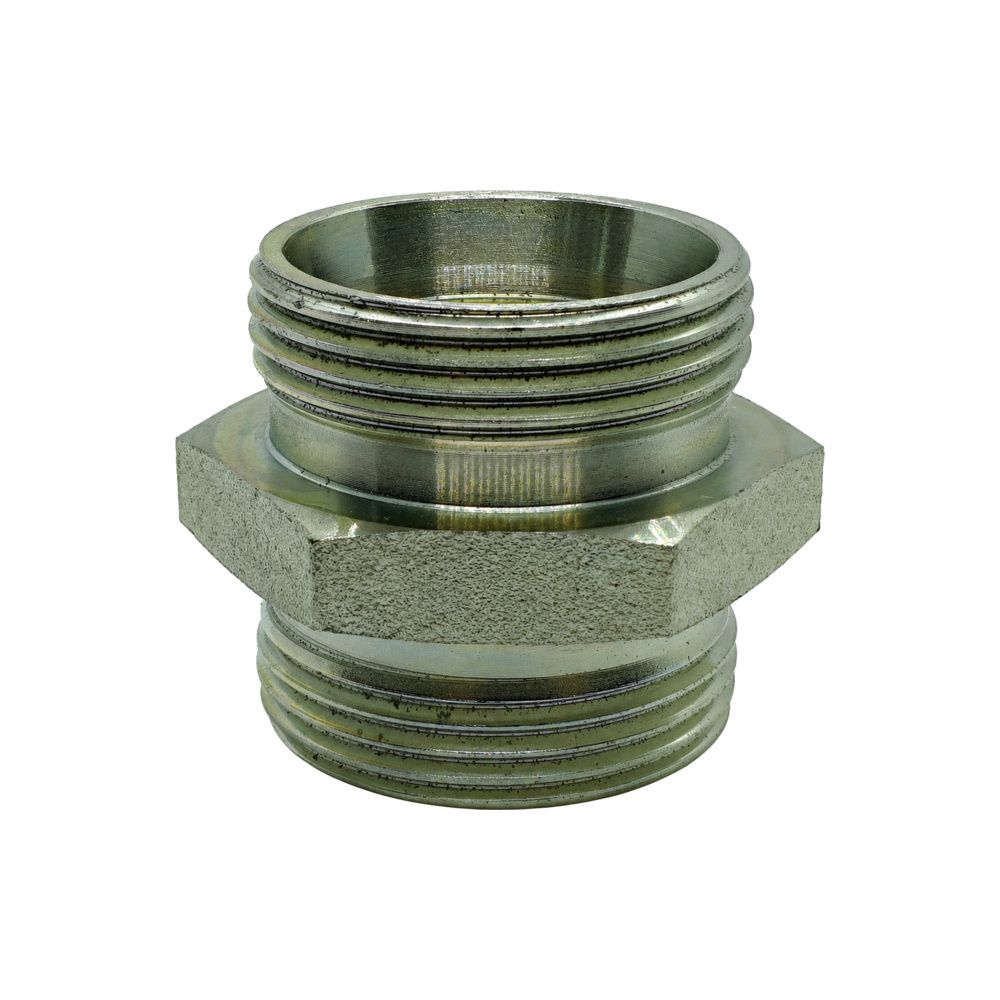

Metric Light (L) Male x Metric Light (L) Male Straight Adaptor
Light series 24° cone both ends. The everyday joiner for L series tube work on European-built machinery, most often on return, drain and pilot lines.
Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.
Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long
Thread Standards
- Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.
How to Choose
- Equal and reducing sizes are stocked, so you can step down through the nipple rather than stacking a bush on it.
- Light (L) and heavy (S) overlap on some thread sizes and the cones differ. An L body in an S port will start and go nowhere good.
- Look into the mating cone. Some are plain 24° and some carry an O-ring, and the two are not interchangeable.
Technicians Advice
If a 24° joint weeps, take it apart and look at the cone face before you reach for a bigger spanner. A bruised or scored cone will not come good under torque, and the extra load just spreads the damage into the port.
Where You’ll Find It
- Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.
Cross-Reference
- Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.
Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.
Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
📐Dimensions & thread sizes – every size in this range
← Swipe the table sideways to see every measurement →
| Part code | A | B | F1 | F2 | L | S | Material | Finish |
|---|---|---|---|---|---|---|---|---|
| MLM-MLM-1212 | – | – | – | – | 24mm | 12mm | Mild steel | Plated finish |
| MLM-MLM-1214 | M12x1.5 (6L) | M14x1.5 (8L) | M12x1.5 (6L) | M14x1.5 (8L) | 25mm | 14mm | Mild steel | Plated finish |
| MLM-MLM-1216 | M12x1.5 (6L) | M16x1.5 (10L) | M12x1.5 (6L) | M16x1.5 (10L) | 26mm | 17mm | Mild steel | Plated finish |
| MLM-MLM-1218 | M12x1.5 (6L) | M18x1.5 (12L) | M12x1.5 (6L) | M18x1.5 (12L) | 27mm | 19mm | Mild steel | Plated finish |
| MLM-MLM-1414 | – | – | – | – | 25mm | 14mm | Mild steel | Plated finish |
| MLM-MLM-1416 | M14x1.5 (8L) | M16x1.5 (10L) | M14x1.5 (8L) | M16x1.5 (10L) | 26mm | 17mm | Mild steel | Plated finish |
| MLM-MLM-1418 | M14x1.5 (8L) | M18x1.5 (12L) | M14x1.5 (8L) | M18x1.5 (12L) | 27mm | 19mm | Mild steel | Plated finish |
| MLM-MLM-1616 | – | – | – | – | 27mm | 17mm | Mild steel | Plated finish |
| MLM-MLM-1618 | M16x1.5 (10L) | M18x1.5 (12L) | M16x1.5 (10L) | M18x1.5 (12L) | 28mm | 19mm | Mild steel | Plated finish |
| MLM-MLM-1622 | M16x1.5 (10L) | M22x1.5 (15L) | M16x1.5 (10L) | M22x1.5 (15L) | 29mm | 24mm | Mild steel | Plated finish |
| MLM-MLM-1626 | M16x1.5 (10L) | M22x1.5 (18L) | M16x1.5 (10L) | M22x1.5 (18L) | 30mm | 27mm | Mild steel | Plated finish |
| MLM-MLM-1818 | – | – | – | – | 28mm | 19mm | Mild steel | Plated finish |
| MLM-MLM-1822 | M22x1.5 (15L) | M18x1.5 (12L) | M22x1.5 (15L) | M18x1.5 (12L) | 29mm | 24mm | Mild steel | Plated finish |
| MLM-MLM-1826 | M26x1.5 (18L) | M18x1.5 (12L) | M26x1.5 (18L) | M18x1.5 (12L) | 30mm | 27mm | Mild steel | Plated finish |
| MLM-MLM-2222 | – | – | – | – | 30mm | 24mm | Mild steel | Plated finish |
| MLM-MLM-2226 | M26x1.5 (18L) | M22x1.5 (15L) | M26x1.5 (18L) | M22x1.5 (15L) | 31mm | 27mm | Mild steel | Plated finish |
| MLM-MLM-2230 | M30x1.5 (22L) | M22x1.5 (15L) | M30x1.5 (22L) | M22x1.5 (15L) | 33mm | 32mm | Mild steel | Plated finish |
| MLM-MLM-2626 | – | – | – | – | 31mm | 27mm | Mild steel | Plated finish |
| MLM-MLM-2630 | M30x2 (22L) | M26x1.5 (8L) | M30x2 (22L) | M26x1.5 (8L) | 33mm | 32mm | Mild steel | Plated finish |
| MLM-MLM-2636 | M36x2 (28L) | M26x1.5 (18L) | M36x2 (28L) | M26x1.5 (18L) | 34mm | 41mm | Mild steel | Plated finish |
| MLM-MLM-3030 | – | – | – | – | 35mm | 32mm | Mild steel | Plated finish |
| MLM-MLM-3036 | M36x2 (28L) | M30x1.5 (22L) | M36x2 (28L) | M30x1.5 (22L) | 36mm | 41mm | Mild steel | Plated finish |
| MLM-MLM-3636 | – | – | – | – | 36mm | 41mm | Mild steel | Plated finish |
| MLM-MLM-3645 | M45x2 (35L) | M36x2 (28L) | M45x2 (35L) | M36x2 (28L) | 39mm | 46mm | Mild steel | Plated finish |
| MLM-MLM-3652 | M52x2 (42L) | M36x2 (28L) | M52x2 (42L) | M36x2 (28L) | 44.5mm | 55mm | Mild steel | Plated finish |
| MLM-MLM-4545 | – | – | – | – | 40mm | 46mm | Mild steel | Plated finish |
| MLM-MLM-5252 | – | – | – | – | 46mm | 55mm | Mild steel | Plated finish |

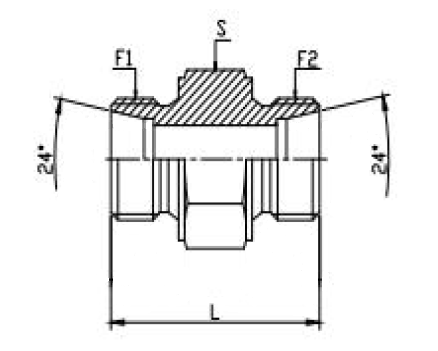

Key: L overall length, S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
