Metric Light (L) Male x Male x Swivel Female Branch Tee

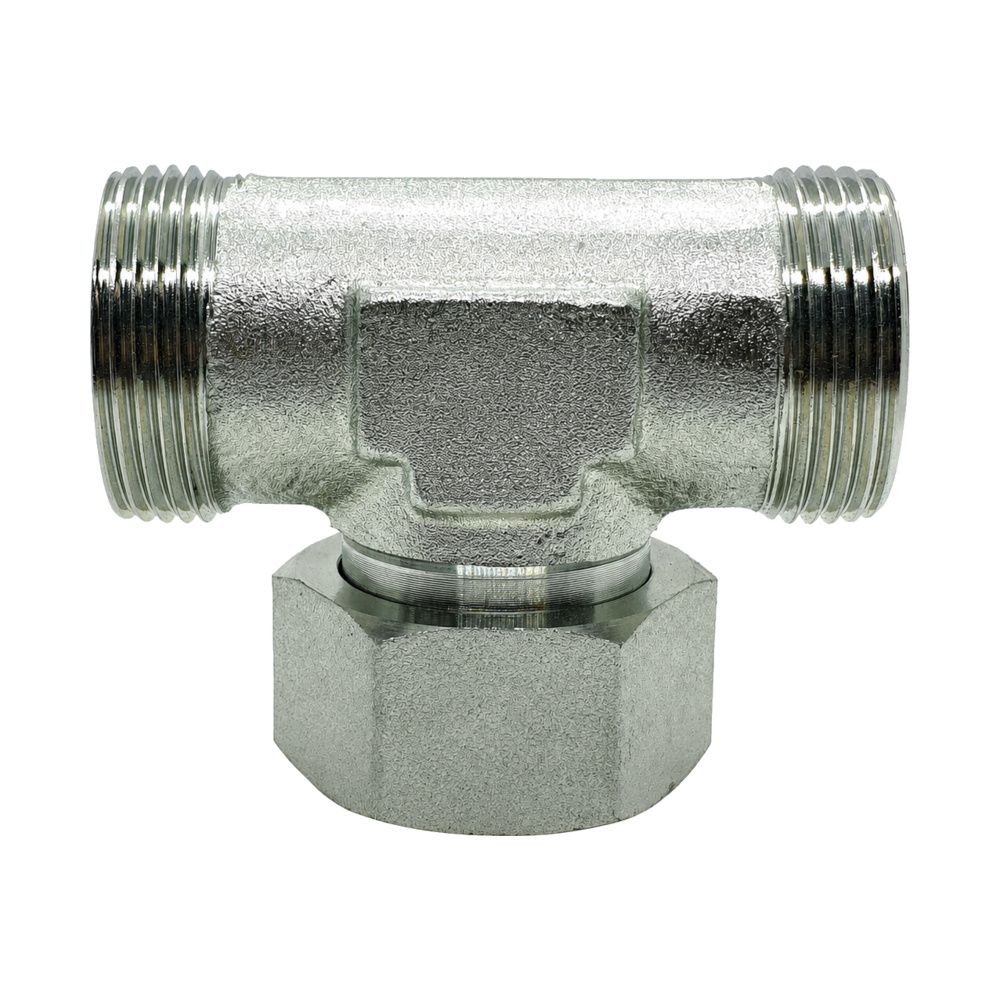

Two light series metric male cones in line with a metric light swivel female on the branch. The everyday metric tee for return, drain and pilot work on European machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.
• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.

How to Choose

• On a branch tee the two in-line ports carry the main flow and the third port comes off the side at 90°. Get that the wrong way round and the tee physically will not fit the run.
• Light (L) is the lower rated metric range. Check the circuit before using it on a pump line.
• All three ports seal on a 24° cone. Plain and O-ring cones do not interchange, so look into each one.

Technicians Advice

Small metric cones seal at low torque and are ruined not far past it. Bring each of the three up until the cone loads and stop. If one still weeps, the fault is that cone face, not the torque.

Where You’ll Find It

• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.
• Metric Light (L) Swivel Female – European tube and hose assemblies on the lower-pressure side.

Cross-Reference

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.
• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L3	S	S1	Material	Finish
MLM-MLM-MLF-121212	25mm	12mm	14mm	Mild steel	Plated finish
MLM-MLM-MLF-141414	25.5mm	12mm	17mm	Mild steel	Plated finish
MLM-MLM-MLF-161616	27mm	14mm	19mm	Mild steel	Plated finish
MLM-MLM-MLF-181818	28.5mm	17mm	22mm	Mild steel	Plated finish
MLM-MLM-MLF-222222	32.5mm	19mm	27mm	Mild steel	Plated finish
MLM-MLM-MLF-262626	33mm	24mm	32mm	Mild steel	Plated finish
MLM-MLM-MLF-303030	38.5mm	27mm	36mm	Mild steel	Plated finish
MLM-MLM-MLF-363636	40mm	36mm	41mm	Mild steel	Plated finish
MLM-MLM-MLF-454545	51mm	48mm	50mm	Mild steel	Plated finish
MLM-MLM-MLF-525252	56.5mm	50mm	60mm	Mild steel	Plated finish

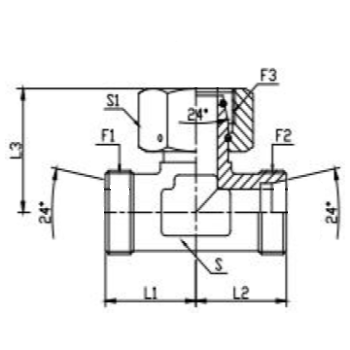

Key: L3 length 3, S hex across flats, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
