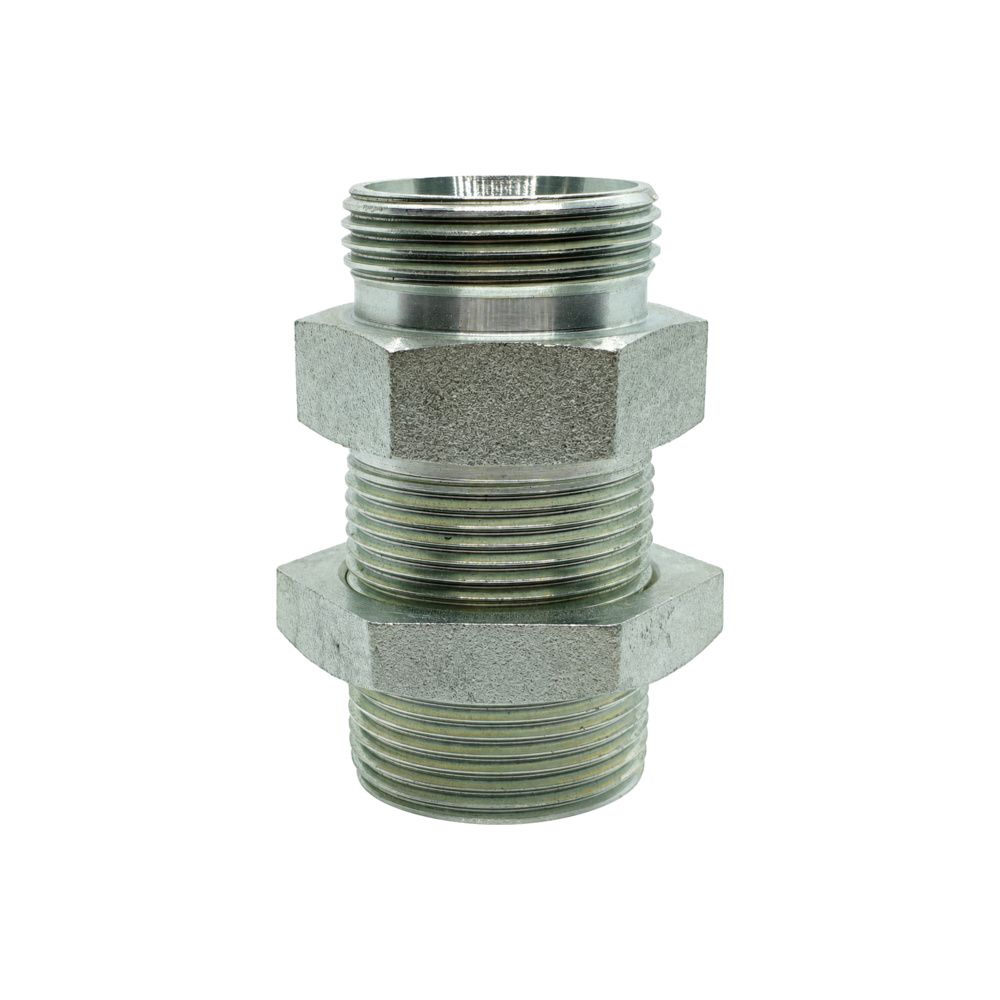

Metric Light (L) Male x Metric Bulkhead Male Straight Bulkhead Adaptor

A light series metric male cone one end and a metric bulkhead body the other. The mirror of the MBM-MLM, with the bulkhead leg on the other side.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: The Advantages of Hydraulic Bulkhead Fittings: Essential Components for Fluid Systems

Thread Standards

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.
• Metric Bulkhead Male – DIN 2353 / ISO 8434-1 24° cone on a bulkhead body with a locknut. It seals on the 24° cone; the bulkhead thread and locknut clamp the body to the panel and do no sealing.

How to Choose

• The bulkhead thread and locknut clamp the fitting to the panel. They do no sealing, so do not try to cure a leak by tightening the locknut.
• Check your panel hole size and thickness before you order. The body has a set thread length under the shoulder and a thick panel eats it.
• Check which face of the panel the locknut needs to land on before ordering.
• Light (L) is the lower rated metric range, so match it to the circuit.

Technicians Advice

Decide the panel side at the bench, not at the machine. Getting it round the wrong way means the shoulder sits proud on the wrong face and the hose then runs at the wrong angle.

Where You’ll Find It

• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.
• Metric Bulkhead Male – panel, chassis and tank-wall pass-throughs on European-built machinery – Liebherr, Wacker Neuson, Atlas, Manitou – and any tidy tube-work build.

Cross-Reference

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.
• Metric Bulkhead Male – DIN 2353 / ISO 8434-1 24° cone, bulkhead style. Parker call this range EO and EO-2. Available in both light (L) and heavy (S) series, which do not interchange.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L	S	S1	Material	Finish
MLM-MBM-1616	52mm	–	–	Mild steel	Plated finish
MLM-MBM-2626	61mm	32mm	36mm	Mild steel	Plated finish
MLM-MBM-1212	48mm	–	–	Mild steel	Plated finish
MLM-MBM-1414	49mm	–	–	Mild steel	Plated finish
MLM-MBM-1818	53mm	–	–	Mild steel	Plated finish
MLM-MBM-2222	57mm	27mm	30mm	Mild steel	Plated finish
MLM-MBM-3030	66mm	36mm	41mm	Mild steel	Plated finish
MLM-MBM-3636	70mm	41mm	46mm	Mild steel	Plated finish
MLM-MBM-4545	76mm	50mm	55mm	Mild steel	Plated finish
MLM-MBM-5252	77mm	60mm	65mm	Mild steel	Plated finish

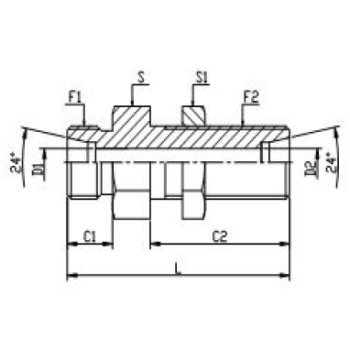

Key: L overall length, S hex across flats, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
