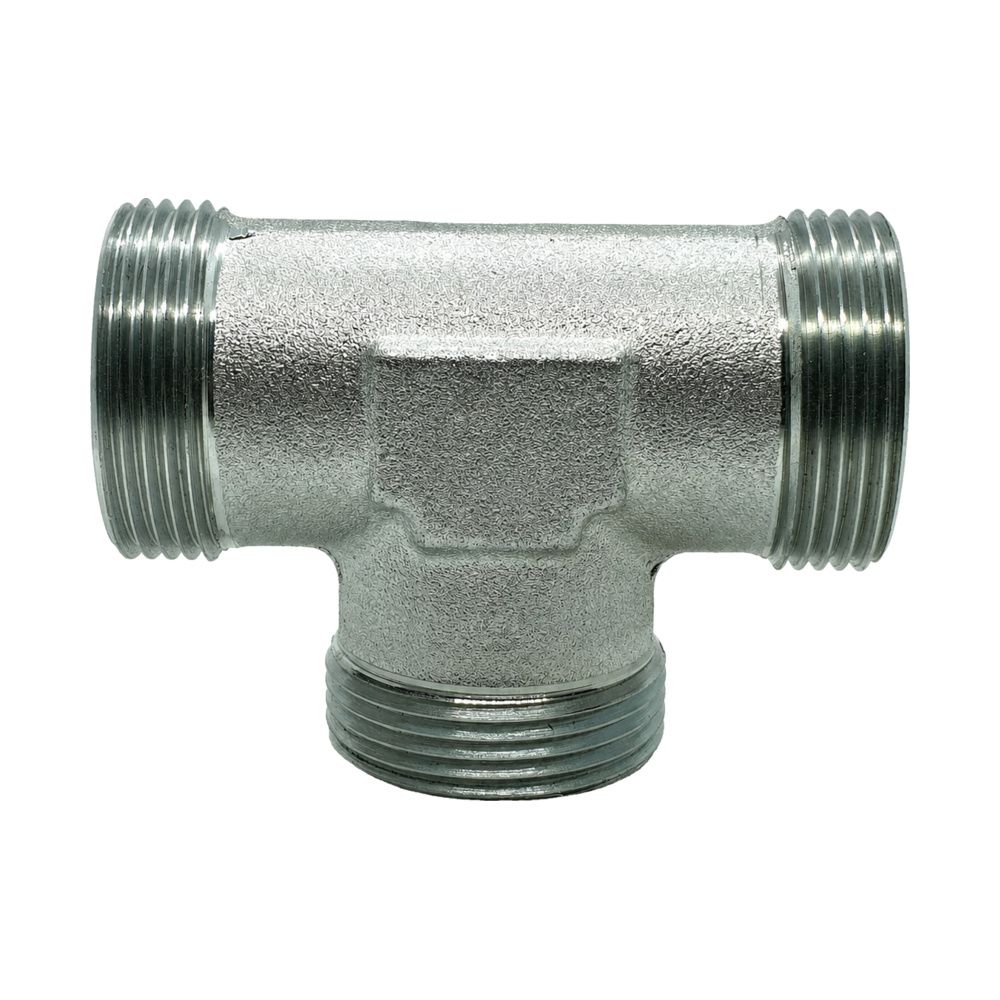

Metric Light (L) Male Equal Tee

Three light series metric 24° cone male ports. The everyday metric tee for return, drain and pilot work on European machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.

How to Choose

• All three ports are the same size and thread, so it does not matter which way the tee goes in.
• Light (L) is the lower rated metric range. Check the circuit before using it on a pump line.
• L and S share some thread sizes and the cones differ, so go by the series on the tube nut.

Technicians Advice

Small metric cones seal at low torque and are ruined not far past it. Bring each of the three up until the cone loads and stop. If one weeps after that, the fault is that cone face, not the torque.

Where You’ll Find It

• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.

Cross-Reference

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	S	Material	Finish
MLM-MLM-MLM-121212	12mm	Mild steel	Plated finish
MLM-MLM-MLM-141414	12mm	Mild steel	Plated finish
MLM-MLM-MLM-161616	14mm	Mild steel	Plated finish
MLM-MLM-MLM-181818	17mm	Mild steel	Plated finish
MLM-MLM-MLM-222222	19mm	Mild steel	Plated finish
MLM-MLM-MLM-262626	24mm	Mild steel	Plated finish
MLM-MLM-MLM-303030	27mm	Mild steel	Plated finish
MLM-MLM-MLM-363636	36mm	Mild steel	Plated finish
MLM-MLM-MLM-454545	41mm	Mild steel	Plated finish
MLM-MLM-MLM-525252	50mm	Mild steel	Plated finish

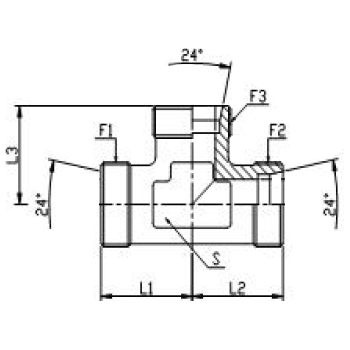

Key: S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
