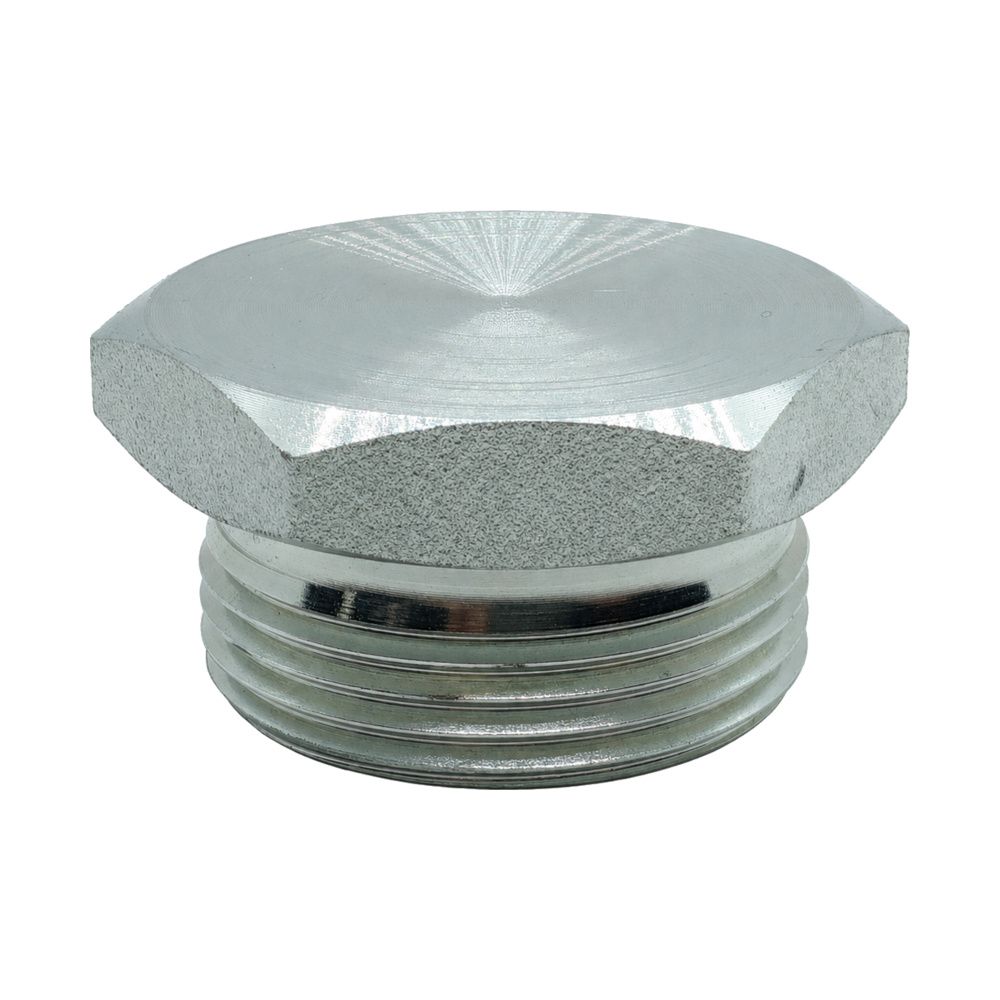

Metric Light (L) Male Blanking Plug

A light series metric plug for blanking a 24° cone connection on return, drain and pilot lines.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• Light (L) is the lower rated metric range. Check the series on the port before you fit.
• Seals on the 24° cone. Nothing on the thread.

Technicians Advice

Small metric cones seal at low torque and are ruined not far past it. Bring it up until the cone loads and stop, and remember a plug gives you plenty of leverage to go too far without feeling it.

Where You’ll Find It

• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.

Cross-Reference

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	L	H1	Material	Finish
MLM-12	M12x1.5 (6L)	14mm	12mm	Mild steel	Plated finish
MLM-14	M14x1.5 (8L)	15mm	14mm	Mild steel	Plated finish
MLM-16	M16x1.5 (10L)	16mm	17mm	Mild steel	Plated finish
MLM-18	M18x1.5 (12L)	17mm	19mm	Mild steel	Plated finish
MLM-22	M22x1.5 (15L)	18mm	24mm	Mild steel	Plated finish
MLM-26	M26x1.5 (18L)	19mm	27mm	Mild steel	Plated finish
MLM-30	M30x2 (22L)	21mm	32mm	Mild steel	Plated finish
MLM-36	M36x2 (28L)	22mm	41mm	Mild steel	Plated finish
MLM-45	M45x2 (35L)	25mm	46mm	Mild steel	Plated finish
MLM-52	M52x2 (42L)	27mm	55mm	Mild steel	Plated finish

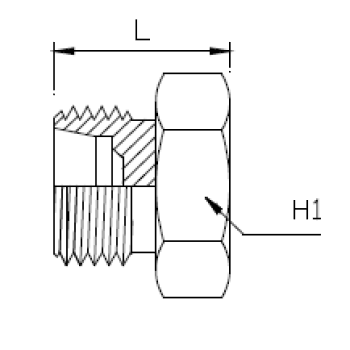

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
