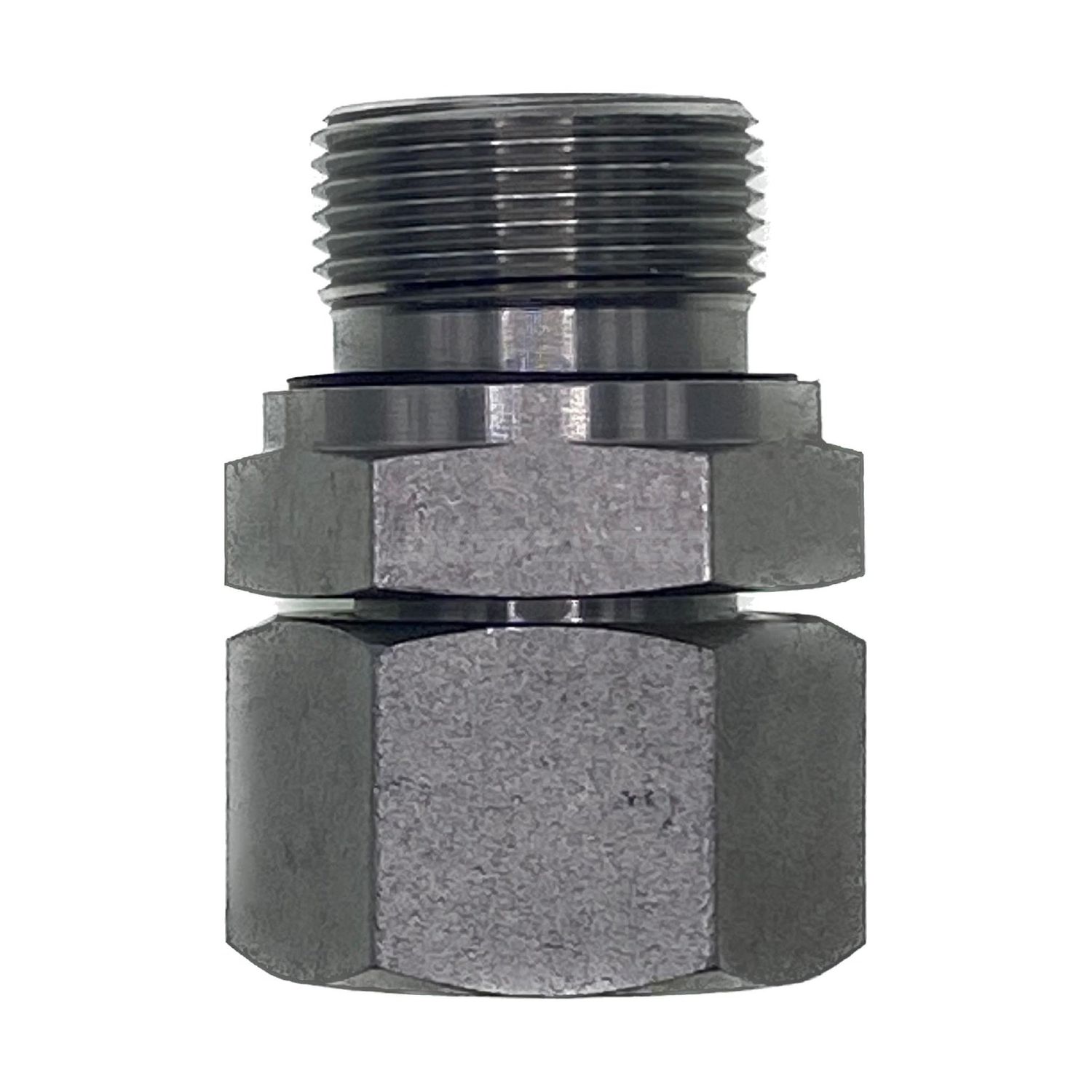

Metric Light (L) Swivel Female x Metric Stud Male Straight Adaptor

Light series metric swivel female one end, metric stud with a soft seal the other. Lands an L series return, drain or pilot line into a metric port.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.
• Metric Stud Male – metric straight thread with a captive soft seal. It seals on a bonded washer or O-ring under the stud shoulder, not on the thread.

How to Choose

• Two sealing methods. The swivel pulls onto a 24° cone, the stud seals on a washer or O-ring under the shoulder.
• The stud thread is straight and takes no sealant. The port face under it does the sealing.
• Light series suits lower pressure work. Step up to heavy (S) where the circuit warrants it.

Technicians Advice

Fit a fresh seal under the stud shoulder every time and pull it to a firm feel rather than leaning on it. A flattened reused washer will hold on the day and weep once the machine has been through a few heat cycles.

Where You’ll Find It

• Metric Light (L) Swivel Female – European tube and hose assemblies on the lower-pressure side.
• Metric Stud Male – European valve blocks and manifolds using a metric port with a soft seal under the shoulder.

Cross-Reference

• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker EO / EO-2.
• Metric Stud Male – Metric straight thread with a bonded washer or O-ring. Confirm the port series against the block before ordering.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	S	S1	Material	Finish
MLF-MSM-1210	M12x1.5 (6L)	M10x1	30.5mm	14mm	14mm	Mild steel	Plated finish
MLF-MSM-1212	M12x1.5 (6L)	M12x1.5	34.5mm	17mm	14mm	Mild steel	Plated finish
MLF-MSM-1412	M14x1.5 (8L)	M12x1.5	38.5mm	17mm	17mm	Mild steel	Plated finish
MLF-MSM-1414	M14x1.5 (8L)	M14x1.5	38.5mm	19mm	17mm	Mild steel	Plated finish
MLF-MSM-1614	M16x1.5 (10L)	M14x1.5	39.5mm	19mm	19mm	Mild steel	Plated finish
MLF-MSM-1616	M16x1.5 (10L)	M16x1.5	39mm	22mm	19mm	Mild steel	Plated finish
MLF-MSM-1814	M18x1.5 (12L)	M14x1.5	39mm	24mm	22mm	Mild steel	Plated finish
MLF-MSM-1816	M18x1.5 (12L)	M16x1.5	39mm	22mm	22mm	Mild steel	Plated finish
MLF-MSM-1818	M18x1.5 (12L)	M18x1.5	39mm	24mm	22mm	Mild steel	Plated finish
MLF-MSM-1822	M18x1.5 (12L)	M22x1.5	41.5mm	27mm	22mm	Mild steel	Plated finish
MLF-MSM-2218	M22x1.5 (15L)	M18x1.5	43.5mm	24mm	27mm	Mild steel	Plated finish
MLF-MSM-2222	M22x1.5 (15L)	M22x1.5	45.5mm	27mm	27mm	Mild steel	Plated finish
MLF-MSM-2622	M26x1.5 (18L)	M22x1.5	45.5mm	27mm	32mm	Mild steel	Plated finish
MLF-MSM-2626	M26x1.5 (18L)	M26x1.5	46.5mm	32mm	32mm	Mild steel	Plated finish
MLF-MSM-3026	M30x2 (22L)	M26x1.5	57mm	32mm	36mm	Mild steel	Plated finish
MLF-MSM-3633	M36x2 (28L)	M33x2	53mm	41mm	41mm	Mild steel	Plated finish
MLF-MSM-4542	M45x2 (35L)	M42x2	60mm	50mm	50mm	Mild steel	Plated finish
MLF-MSM-5248	M52x2 (42L)	M42x2	64mm	55mm	60mm	Mild steel	Plated finish

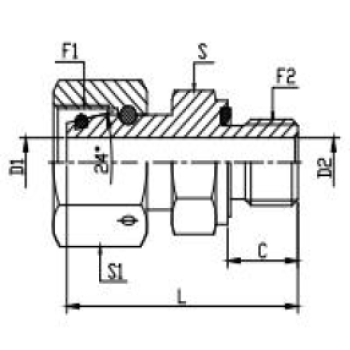

Key: L overall length, S hex across flats, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
