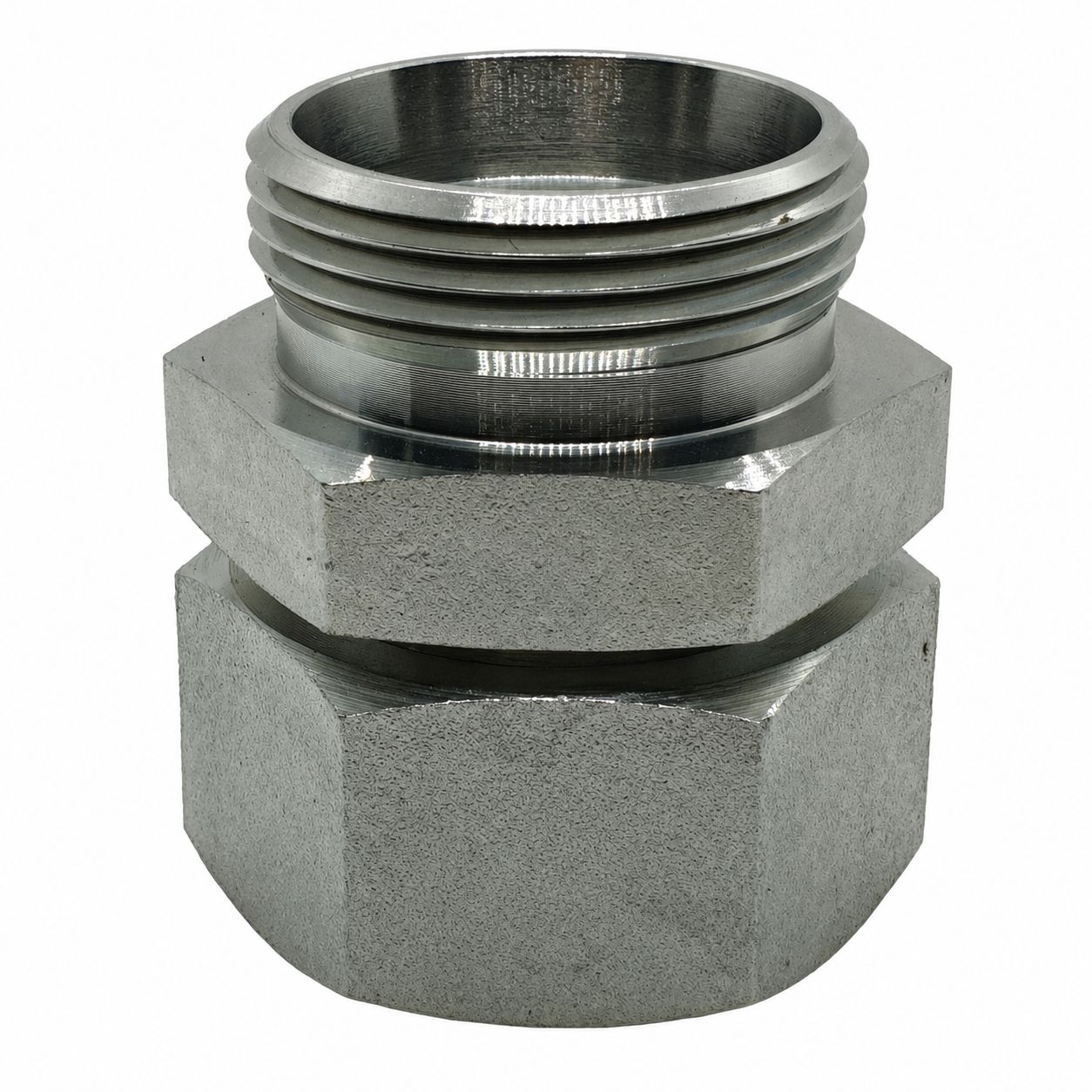

Metric Light (L) Swivel Female x Metric Light (L) Male Straight Adaptor

Light series metric both ends, swivel female one side and male cone the other. The everyday extension and repair piece for L series tube work on European machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.
• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.

How to Choose

• Equal and reducing sizes are stocked, so you can step through the adaptor rather than stacking parts.
• Light (L) is the lower rated metric range. Check the circuit before using it on a pump outlet.
• L and S overlap on some thread sizes and the cones differ. Go by the series on the tube nut.

Technicians Advice

Small metric cones seal at low torque and are ruined not far past it. Bring it up until the cone loads and stop there. If it still weeps after that, the fault is in the cone face or the tube flare, not in how hard it has been pulled up.

Where You’ll Find It

• Metric Light (L) Swivel Female – European tube and hose assemblies on the lower-pressure side.
• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.

Cross-Reference

• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker EO / EO-2.
• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	S	S1	Material	Finish
MLF-MLM-1212	M12x1.5 (6L)	M12x1.5 (6L)	29mm	12mm	14mm	Mild steel	Plated finish
MLF-MLM-1412	M14x1.5 (8L)	M12x1.5 (6L)	29mm	12mm	17mm	Mild steel	Plated finish
MLF-MLM-1414	M14x1.5 (8L)	M14x1.5 (8L)	29mm	17mm	17mm	Mild steel	Plated finish
MLF-MLM-1612	M16x1.5 (10L)	M12x1.5 (6L)	30.5mm	14mm	19mm	Mild steel	Plated finish
MLF-MLM-1614	M16x1.5 (10L)	M14x1.5 (8L)	31mm	17mm	19mm	Mild steel	Plated finish
MLF-MLM-1616	M16x1.5 (10L)	M16x1.5 (10L)	33mm	17mm	19mm	Mild steel	Plated finish
MLF-MLM-1622	M22x1.5 (15L)	M16x1.5 (15L)	36mm	19mm	27mm	Mild steel	Plated finish
MLF-MLM-1812	M18x1.5 (12L)	M12x1.5 (6L)	32mm	17mm	22mm	Mild steel	Plated finish
MLF-MLM-1814	M18x1.5 (12L)	M14x1.5 (8L)	31mm	17mm	22mm	Mild steel	Plated finish
MLF-MLM-1816	M18x1.5 (12L)	M16x1.5 (10L)	33mm	17mm	22mm	Mild steel	Plated finish
MLF-MLM-1818	M18x1.5 (12L)	M18x1.5 (12L)	34mm	17mm	22mm	Mild steel	Plated finish
MLF-MLM-2212	M22x1.5 (15L)	M12x1.5 (6L)	34mm	19mm	27mm	Mild steel	Plated finish
MLF-MLM-2214	M22x1.5 (15L)	M14x1.5 (8L)	34mm	19mm	27mm	Mild steel	Plated finish
MLF-MLM-2216	M22x1.5 (15L)	M16x1.5 (10L)	35.5mm	19mm	27mm	Mild steel	Plated finish
MLF-MLM-2218	M22x1.5 (15L)	M18x1.5 (12L)	35.5mm	19mm	27mm	Mild steel	Plated finish
MLF-MLM-2222	M22x1.5 (15L)	M22x1.5 (15L)	36mm	19mm	27mm	Mild steel	Plated finish
MLF-MLM-2612	M26x1.5 (18L)	M12x1.5 (6L)	36mm	24mm	32mm	Mild steel	Plated finish
MLF-MLM-2614	M26x1.5 (18L)	M14x1.5 (8L)	36mm	27mm	32mm	Mild steel	Plated finish
MLF-MLM-2616	M26x1.5 (18L)	M16x1.5 (10L)	37mm	24mm	32mm	Mild steel	Plated finish
MLF-MLM-2618	M26x1.5 (18L)	M18x1.5 (12L)	37.5mm	24mm	32mm	Mild steel	Plated finish
MLF-MLM-2622	M26x1.5 (18L)	M22x1.5 (15L)	36.5mm	24mm	32mm	Mild steel	Plated finish
MLF-MLM-2626	M26x1.5 (18L)	M26x1.5 (18L)	36.5mm	24mm	32mm	Mild steel	Plated finish
MLF-MLM-3012	M30x2 (22L)	M12x1.5 (6L)	37.5mm	27mm	36mm	Mild steel	Plated finish
MLF-MLM-3014	M30x2 (22L)	M14x1.5 (8L)	37.5mm	27mm	36mm	Mild steel	Plated finish
MLF-MLM-3016	M30x2 (22L)	M16x1.5 (10L)	38mm	27mm	36mm	Mild steel	Plated finish
MLF-MLM-3018	M30x2 (22L)	M18x1.5 (12L)	39mm	27mm	36mm	Mild steel	Plated finish
MLF-MLM-3022	M30x2 (22L)	M22x1.5 (15L)	39mm	27mm	36mm	Mild steel	Plated finish
MLF-MLM-3026	M30x2 (22L)	M26x1.5 (18L)	41mm	27mm	36mm	Mild steel	Plated finish
MLF-MLM-3030	M30x2 (22L)	M30x2 (22L)	43mm	27mm	36mm	Mild steel	Plated finish
MLF-MLM-3612	M36x2 (28L)	M12x1.5 (6L)	40.5mm	36mm	41mm	Mild steel	Plated finish
MLF-MLM-3614	M36x2 (28L)	M14x1.5 (8L)	40.5mm	36mm	41mm	Mild steel	Plated finish
MLF-MLM-3616	M36x2 (28L)	M16x1.5 (10L)	41.5mm	36mm	41mm	Mild steel	Plated finish
MLF-MLM-3618	M36x2 (28L)	M18x1.5 (12L)	41.5mm	36mm	41mm	Mild steel	Plated finish
MLF-MLM-3622	M36x2 (28L)	M22x1.5 (15L)	42.5mm	36mm	41mm	Mild steel	Plated finish
MLF-MLM-3626	M36x2 (28L)	M26x1.5 (18L)	42.5mm	36mm	41mm	Mild steel	Plated finish
MLF-MLM-3630	M36x2 (28L)	M30x2 (22L)	44.5mm	36mm	41mm	Mild steel	Plated finish
MLF-MLM-3636	M36x2 (28L)	M36x2 (28L)	44.5mm	36mm	41mm	Mild steel	Plated finish
MLF-MLM-4512	M45x2 (35L)	M12x1.5 (6L)	44.5mm	41mm	50mm	Mild steel	Plated finish
MLF-MLM-4514	M45x2 (35L)	M14x1.5 (8L)	44.5mm	41mm	50mm	Mild steel	Plated finish
MLF-MLM-4516	M45x2 (35L)	M16x1.5 (10L)	45mm	41mm	50mm	Mild steel	Plated finish
MLF-MLM-4518	M45x1.5 (35L)	M18x1.5 (12L)	45mm	41mm	50mm	Mild steel	Plated finish
MLF-MLM-4522	M45x2 (35L)	M22x1.5 (15L)	46mm	41mm	50mm	Mild steel	Plated finish
MLF-MLM-4526	M45x2 (35L)	M26x1.5 (18L)	46mm	41mm	50mm	Mild steel	Plated finish
MLF-MLM-4530	M45x2 (35L)	M30x2 (22L)	47.5mm	46mm	50mm	Mild steel	Plated finish
MLF-MLM-4536	M45x2 (35L)	M36x2 (28L)	46mm	41mm	50mm	Mild steel	Plated finish
MLF-MLM-4545	M45x2 (35L)	M45x2 (35L)	48mm	41mm	50mm	Mild steel	Plated finish
MLF-MLM-4552	M52x2 (42L)	M45x2 (35L)	52mm	50mm	60mm	Mild steel	Plated finish
MLF-MLM-5212	M52x2 (42L)	M12x1.5 (6L)	47mm	50mm	60mm	Mild steel	Plated finish
MLF-MLM-5214	M52x2 (42L)	M14x1.5 (8L)	47mm	50mm	60mm	Mild steel	Plated finish
MLF-MLM-5216	M52x2 (42L)	M16x1.5 (10L)	47.5mm	50mm	60mm	Mild steel	Plated finish
MLF-MLM-5218	M52x1.5 (42L)	M18x1.5 (12L)	47.5mm	50mm	60mm	Mild steel	Plated finish
MLF-MLM-5222	M52x2 (42L)	M22x1.5 (15L)	48.5mm	50mm	60mm	Mild steel	Plated finish
MLF-MLM-5226	M52x2 (42L)	M26x1.5 (18L)	48.5mm	50mm	60mm	Mild steel	Plated finish
MLF-MLM-5230	M52x2 (42L)	M30x2 (22L)	50mm	50mm	60mm	Mild steel	Plated finish
MLF-MLM-5236	M52x2 (42L)	M36x2 (28L)	50mm	50mm	60mm	Mild steel	Plated finish
MLF-MLM-5245	M52x2 (42L)	M42x2 (35L)	52mm	50mm	60mm	Mild steel	Plated finish
MLF-MLM-5252	M52x2 (42L)	M52x2 (42L)	52mm	50mm	60mm	Mild steel	Plated finish

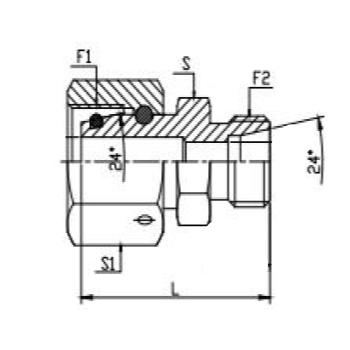

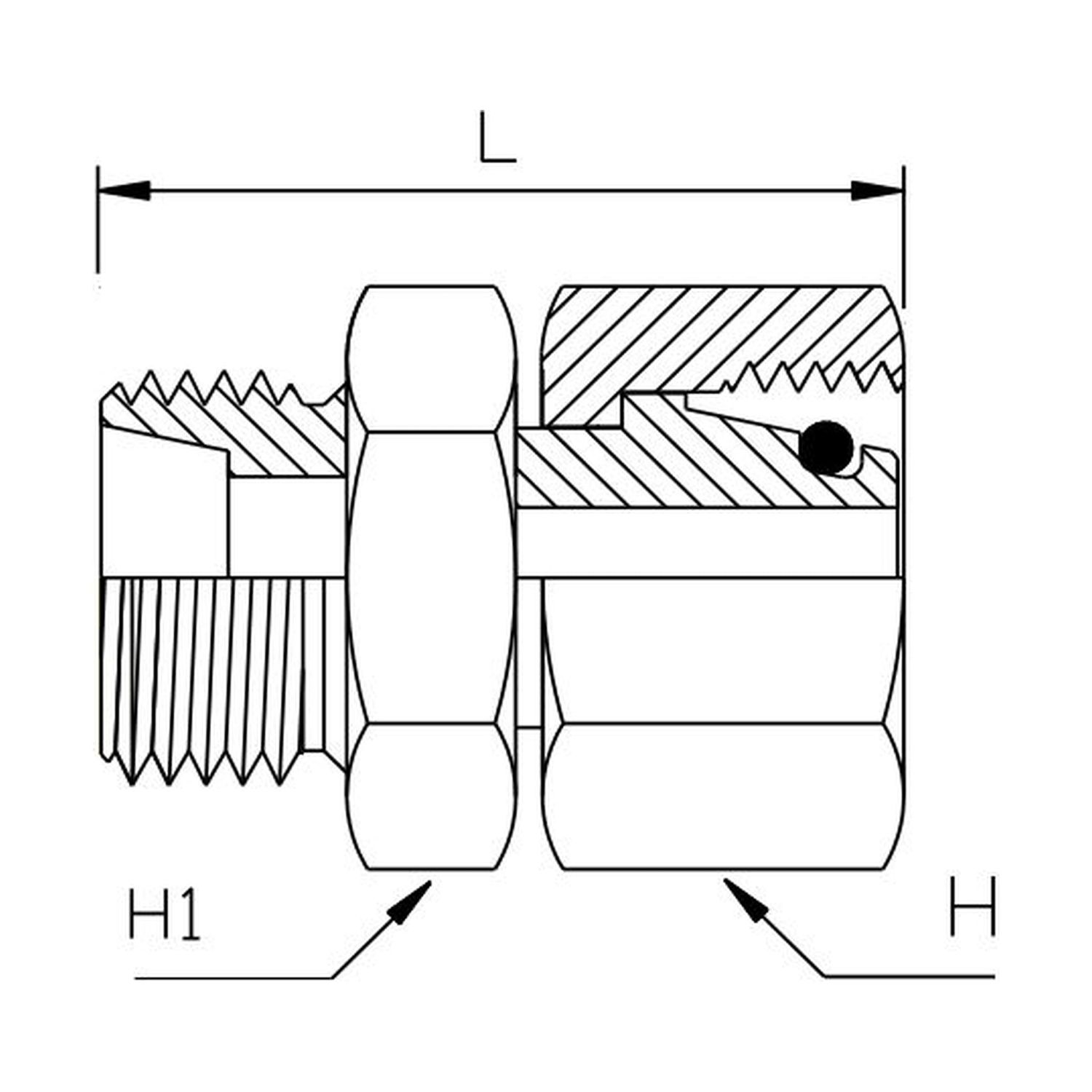

Key: L overall length, S hex across flats, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
