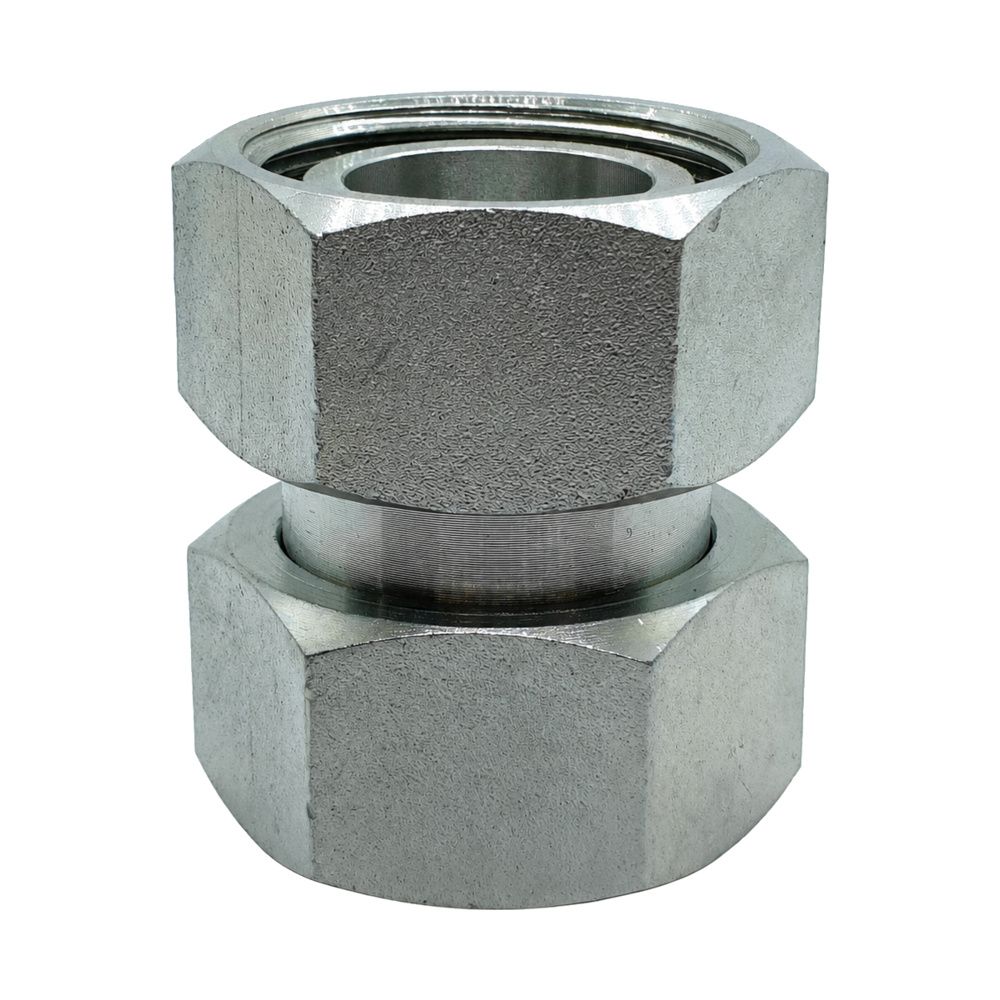

Metric Light (L) Swivel Female x Metric Light (L) Swivel Female Straight Socket

Light series metric swivel female both ends. The everyday socket for joining two L series male cones on European return, drain and pilot lines.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.

How to Choose

• Both ends swivel and seal on a mating 24° cone. Nothing goes on either thread.
• Light (L) is the lower rated metric range. Check the circuit before using it on a pump outlet.
• L and S overlap on some thread sizes and the cones differ, so go by the series on the tube nut.

Technicians Advice

Small metric cones seal at low torque and are ruined not much past it. Bring each end up until the cone loads and stop. If it still weeps, the fault is the cone face or the tube flare, not how hard it has been pulled up.

Where You’ll Find It

• Metric Light (L) Swivel Female – European tube and hose assemblies on the lower-pressure side.

Cross-Reference

• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S1	S2	Material	Finish
MLF-MLF-1212	M12x1.5 (6L)	M12x1.5 (6L)	M12x1.5 (6L)	M12x1.5 (6L)	30mm	14mm	14mm	Mild steel	Plated finish
MLF-MLF-1214	M12x1.5 (6L)	M14x1.5 (8L)	M12x1.5 (6L)	M14x1.5 (8L)	32mm	14mm	17mm	Mild steel	Plated finish
MLF-MLF-1216	M12x1.5 (6L)	M16x1.5 (10L)	M12x1.5 (6L)	M16x1.5 (10L)	32mm	14mm	19mm	Mild steel	Plated finish
MLF-MLF-1218	M12x1.5 (6L)	M18x1.5 (12L)	M12x1.5 (6L)	M18x1.5 (12L)	32mm	14mm	22mm	Mild steel	Plated finish
MLF-MLF-1414	M14x1.5 (8L)	M14x1.5 (8L)	M14x1.5 (8L)	M14x1.5 (8L)	33mm	17mm	17mm	Mild steel	Plated finish
MLF-MLF-1416	M14x1.5 (8L)	M16x1.5 (10L)	M14x1.5 (8L)	M16x1.5 (10L)	33mm	17mm	19mm	Mild steel	Plated finish
MLF-MLF-1418	M14x1.5 (8L)	M18x1.5 (12L)	M14x1.5 (8L)	M18x1.5 (12L)	33mm	17mm	22mm	Mild steel	Plated finish
MLF-MLF-1422	M14x1.5 (8L)	M22x1.5 (15L)	M14x1.5 (8L)	M22x1.5 (15L)	36mm	17mm	27mm	Mild steel	Plated finish
MLF-MLF-1616	M16x1.5 (10L)	M16x1.5 (10L)	M16x1.5 (10L)	M16x1.5 (10L)	33mm	19mm	19mm	Mild steel	Plated finish
MLF-MLF-1618	M16x1.5 (10L)	M18x1.5 (12L)	M16x1.5 (10L)	M18x1.5 (12L)	33mm	19mm	22mm	Mild steel	Plated finish
MLF-MLF-1622	M16x1.5 (10L)	M22x1.5 (15L)	M16x1.5 (10L)	M22x1.5 (15L)	37mm	19mm	27mm	Mild steel	Plated finish
MLF-MLF-1626	M16x1.5 (10L)	M26x1.5 (18L)	M16x1.5 (10L)	M26x1.5 (18L)	36mm	19mm	32mm	Mild steel	Plated finish
MLF-MLF-1818	M18x1.5 (12L)	M18x1.5 (12L)	M18x1.5 (12L)	M18x1.5 (12L)	33mm	22mm	22mm	Mild steel	Plated finish
MLF-MLF-1822	M18x1.5 (12L)	M22x1.5 (15L)	M18x1.5 (12L)	M22x1.5 (15L)	37mm	22mm	27mm	Mild steel	Plated finish
MLF-MLF-1826	M18x1.5 (12L)	M26x1.5 (18L)	M18x1.5 (12L)	M26x1.5 (18L)	36mm	22mm	32mm	Mild steel	Plated finish
MLF-MLF-1830	M18x1.5 (12L)	M30x2 (22L)	M18x1.5 (12L)	M30x2 (22L)	42mm	22mm	36mm	Mild steel	Plated finish
MLF-MLF-2222	M22x1.5 (15L)	M22x1.5 (15L)	M22x1.5 (15L)	M22x1.5 (15L)	37mm	27mm	27mm	Mild steel	Plated finish
MLF-MLF-2226	M22x1.5 (15L)	M26x1.5 (18L)	M22x1.5 (15L)	M26x1.5 (18L)	36mm	27mm	32mm	Mild steel	Plated finish
MLF-MLF-2230	M22x1.5 (15L)	M30x2 (22L)	M22x1.5 (15L)	M30x2 (22L)	42mm	27mm	36mm	Mild steel	Plated finish
MLF-MLF-2236	M22x1.5 (15L)	M36x2 (28L)	M22x1.5 (15L)	M36x2 (28L)	45mm	27mm	41mm	Mild steel	Plated finish
MLF-MLF-2626	M26x1.5 (18L)	M26x1.5 (18L)	M26x1.5 (18L)	M26x1.5 (18L)	36mm	32mm	32mm	Mild steel	Plated finish
MLF-MLF-2645	M26x1.5 (18L)	M45x2 (35L)	M26x1.5 (18L)	M45x2 (35L)	48mm	32mm	50mm	Mild steel	Plated finish
MLF-MLF-3030	M30x2 (22L)	M30x2 (22L)	M30x2 (22L)	M30x2 (22L)	42mm	36mm	36mm	Mild steel	Plated finish
MLF-MLF-3036	M30x2 (22L)	M36x2 (28L)	M30x2 (22L)	M36x2 (28L)	45mm	36mm	41mm	Mild steel	Plated finish
MLF-MLF-3045	M30x2 (22L)	M45x2 (35L)	M30x2 (22L)	M45x2 (35L)	48mm	36mm	50mm	Mild steel	Plated finish
MLF-MLF-3052	M30x2 (22L)	M52x2 (42L)	M30x2 (22L)	M52x2 (42L)	48mm	36mm	60mm	Mild steel	Plated finish
MLF-MLF-3636	M36x2 (28L)	M36x2 (28L)	M36x2 (28L)	M36x2 (28L)	45mm	41mm	41mm	Mild steel	Plated finish
MLF-MLF-3645	M36x2 (28L)	M45x2 (35L)	M36x2 (28L)	M45x2 (35L)	48mm	41mm	50mm	Mild steel	Plated finish
MLF-MLF-3652	M36x2 (28L)	M52x2 (42L)	M36x2 (28L)	M52x2 (42L)	48mm	41mm	60mm	Mild steel	Plated finish
MLF-MLF-4545	M45x2 (35L)	M45x2 (35L)	M45x2 (35L)	M45x2 (35L)	48mm	50mm	50mm	Mild steel	Plated finish
MLF-MLF-4552	M45x2 (35L)	M52x2 (42L)	M45x2 (35L)	M52x2 (42L)	48mm	50mm	60mm	Mild steel	Plated finish
MLF-MLF-5252	M52x2 (42L)	M52x2 (42L)	M52x2 (42L)	M52x2 (42L)	48mm	60mm	60mm	Mild steel	Plated finish

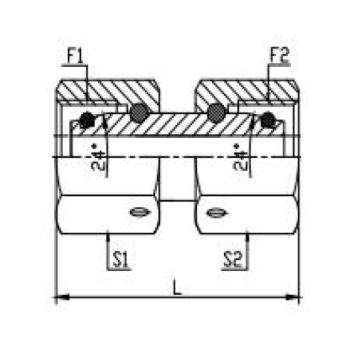

Key: L overall length, S1 hex across flats 2, S2 hex across flats 3. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
