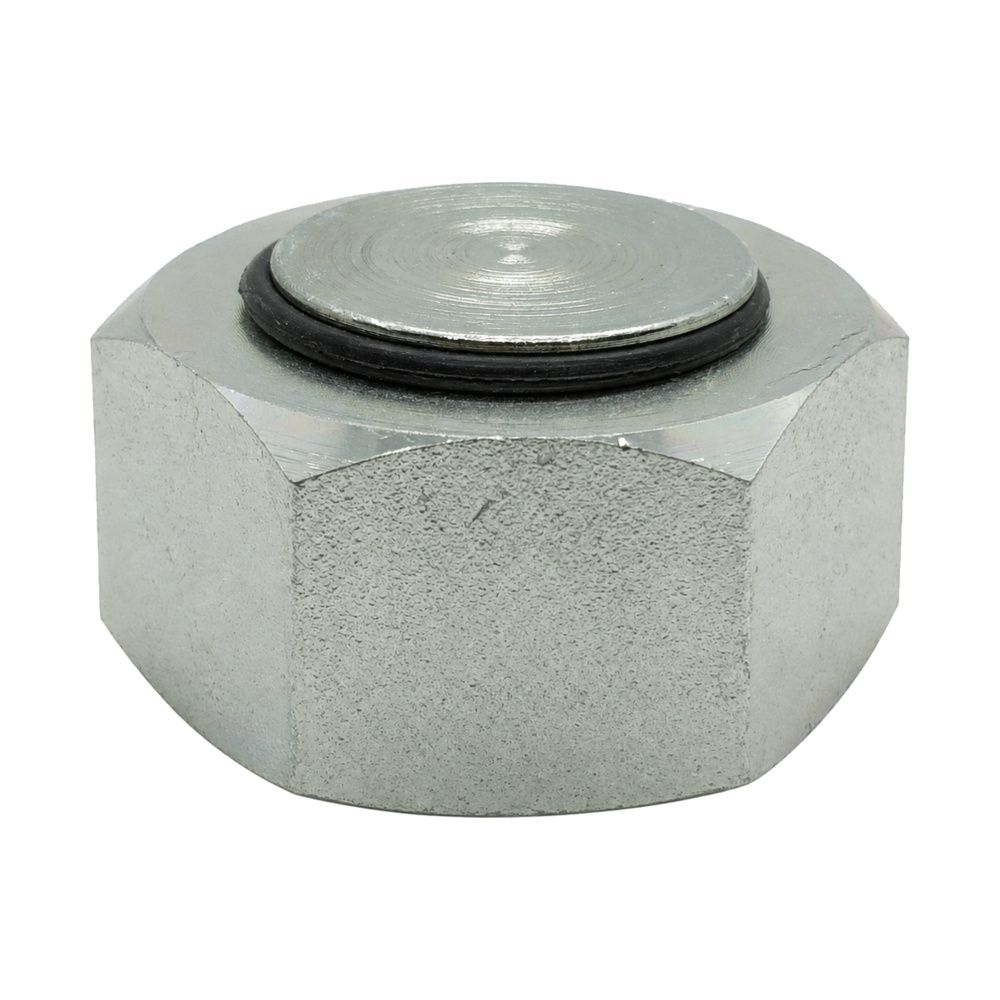

Metric Light (L) Swivel Female Cap

A light series metric cap for covering an exposed L series male cone on return, drain and pilot lines.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.

How to Choose

• A cap is female and covers a male end. A plug is male and blocks a female port. Check which the open connection is before you order.
• Light (L) is the lower rated metric range. Check the series before you order.
• Seals on the 24° cone. Nothing on the thread.

Technicians Advice

Do not over-tighten a cap just because it is only a cap. Small metric cones are easy to crush, and a cap that has bruised the male cone it was protecting has done the opposite of its job.

Where You’ll Find It

• Metric Light (L) Swivel Female – European tube and hose assemblies on the lower-pressure side.

Cross-Reference

• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	H	Material	Finish
MLF-12	M12x1.5 (6L)	14mm	Mild steel	Plated finish
MLF-14	M14x1.5 (8L)	17mm	Mild steel	Plated finish
MLF-16	M16x1.5 (10L)	19mm	Mild steel	Plated finish
MLF-18	M18x1.5 (12L)	22mm	Mild steel	Plated finish
MLF-22	M22x1.5 (15L)	27mm	Mild steel	Plated finish
MLF-26	M26x1.5 (18L)	32mm	Mild steel	Plated finish
MLF-30	M30x2 (22L)	36mm	Mild steel	Plated finish
MLF-36	M36x2 (28L)	41mm	Mild steel	Plated finish
MLF-45	M45x2 (35L)	50mm	Mild steel	Plated finish
MLF-52	M52x2 (42L)	60mm	Mild steel	Plated finish

Key: H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
