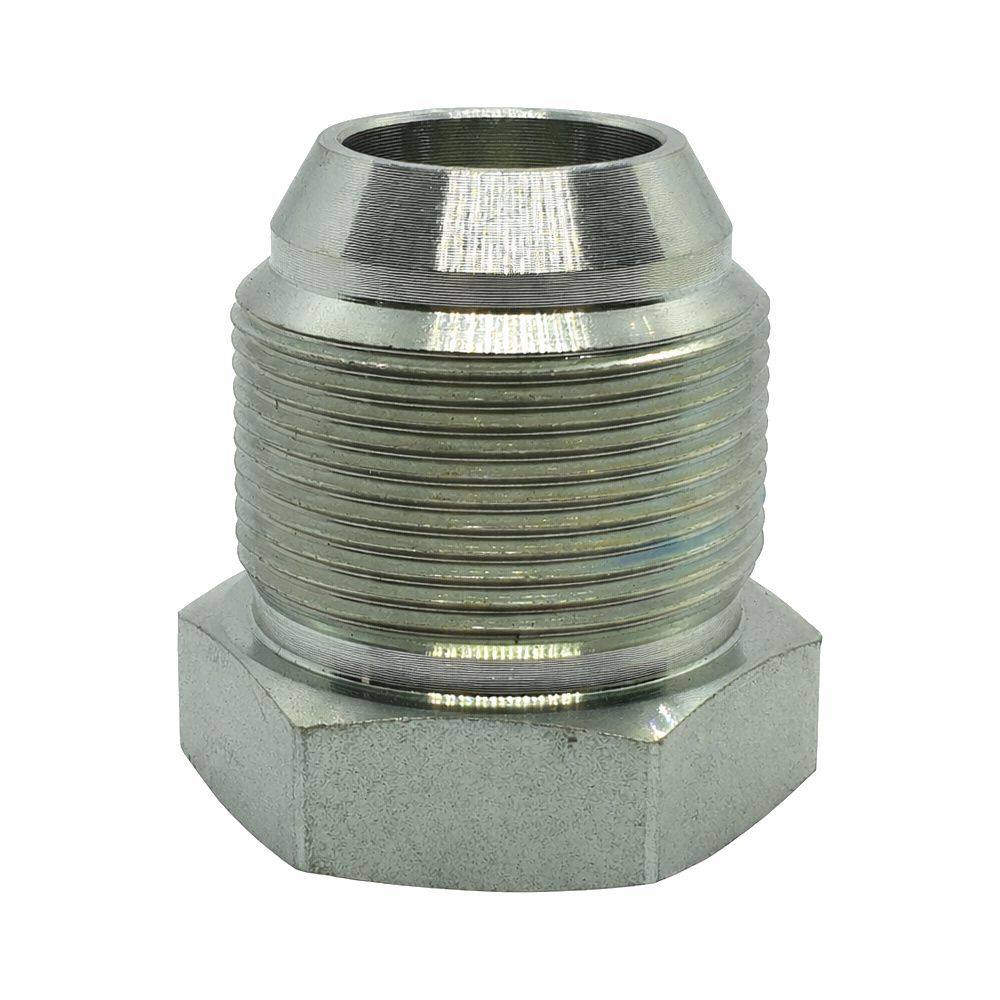

Metric Komatsu Male Blanking Plug

A Komatsu 30° flare plug for blanking a connection on Japanese-built excavators and loaders.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• Metric Komatsu Male (JIS metric) – JIS metric 30° flare pattern used by Komatsu. It seals on the 30° flare seat, which is a different angle again to JIC or metric 24°.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• The 30° Komatsu flare is not a JIC 37° and not a DIN 24°, even though all three overlap in size.
• Hold it against the fitting you are blanking. The angle difference shows when the two cones are nose to nose.

Technicians Advice

This is the plug most likely to be the wrong one in the drawer, because a 30° and a 37° will both start. Identify it at the bench, not by feel in a port you cannot see.

Where You’ll Find It

• Metric Komatsu Male (JIS metric) – Komatsu excavators, dozers and loaders, and other Japanese plant using the JIS metric flare.

Cross-Reference

• Metric Komatsu Male (JIS metric) – JIS metric 30° flare, commonly called Komatsu metric. Not interchangeable with DIN 2353 24° cone or JIC 37°.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	L	H1	Material	Finish
MKM-14	M14x1.5 JIS	23mm	17mm	Mild steel	Plated finish
MKM-16	M16x1.5 JIS	24mm	17mm	Mild steel	Plated finish
MKM-18	M18x1.5 JIS	25mm	19mm	Mild steel	Plated finish
MKM-20	M20x1.5 JIS	28mm	22mm	Mild steel	Plated finish
MKM-22	M22x1.5 JIS	28mm	24mm	Mild steel	Plated finish
MKM-24	M24x1.5 JIS	32mm	27mm	Mild steel	Plated finish
MKM-30	M30x1.5 JIS	37mm	32mm	Mild steel	Plated finish
MKM-33	M33x1.5 JIS	41mm	36mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
