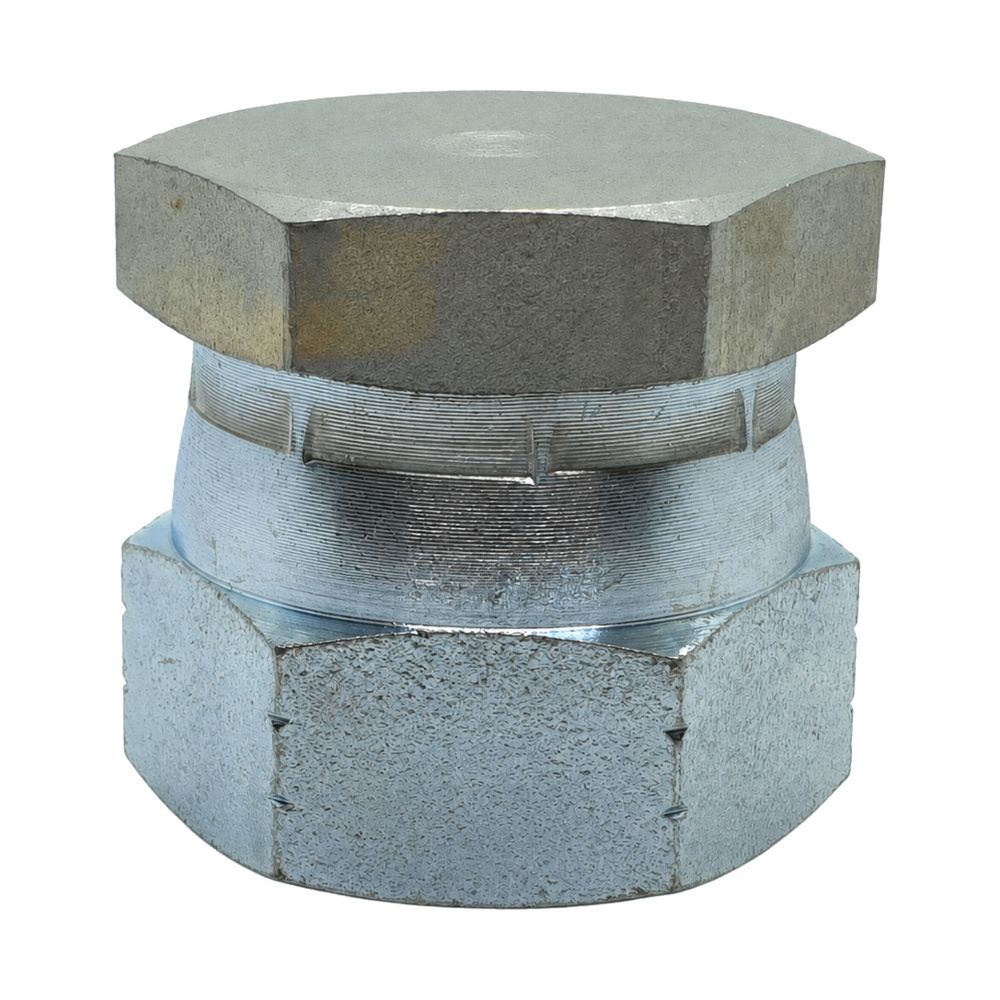

Metric Komatsu Female Cap

A Komatsu 30° flare cap for covering exposed connections on Japanese-built excavators, loaders and dozers.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• Metric Komatsu Female – Komatsu-style metric 30° flare, female. It takes a 30° flare male and seals on that cone, not on the thread.

How to Choose

• A cap is female and covers a male end. A plug is male and blocks a female port. Check which the open connection is before you order.
• The 30° Komatsu flare is not a JIC 37° and not a DIN 24° cone, even though the sizes overlap.
• Hold the cap against the male end. Nose to nose the angle difference is obvious.

Technicians Advice

Keep the Komatsu caps separated from the JIC ones in the truck. They will both start onto the wrong male, and the one that gets found out is the cone you damaged with the wrong cap.

Where You’ll Find It

• Metric Komatsu Female – Japanese-built excavators, loaders and dozers running the Komatsu flare – Komatsu, and Japanese-sourced attachments and replacement lines.

Cross-Reference

• Metric Komatsu Female – Komatsu metric 30° flare. Not a JIC 37° and not a DIN 24° cone, even though all three overlap in size. Sometimes listed as JIS 30° flare.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	H	Material	Finish
MKF-14	M14x1.5 JIS	19mm	Mild steel	Plated finish
MKF-16	M16x1.5 JIS	22mm	Mild steel	Plated finish
MKF-18	M18x1.5 JIS	24mm	Mild steel	Plated finish
MKF-20	M20x1.5 JIS	24mm	Mild steel	Plated finish
MKF-22	M22x1.5 JIS	27mm	Mild steel	Plated finish
MKF-24	M24x1.5 JIS	32mm	Mild steel	Plated finish
MKF-30	M30x1.5 JIS	36mm	Mild steel	Plated finish
MKF-33	M33x1.5 JIS	41mm	Mild steel	Plated finish

Key: H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
