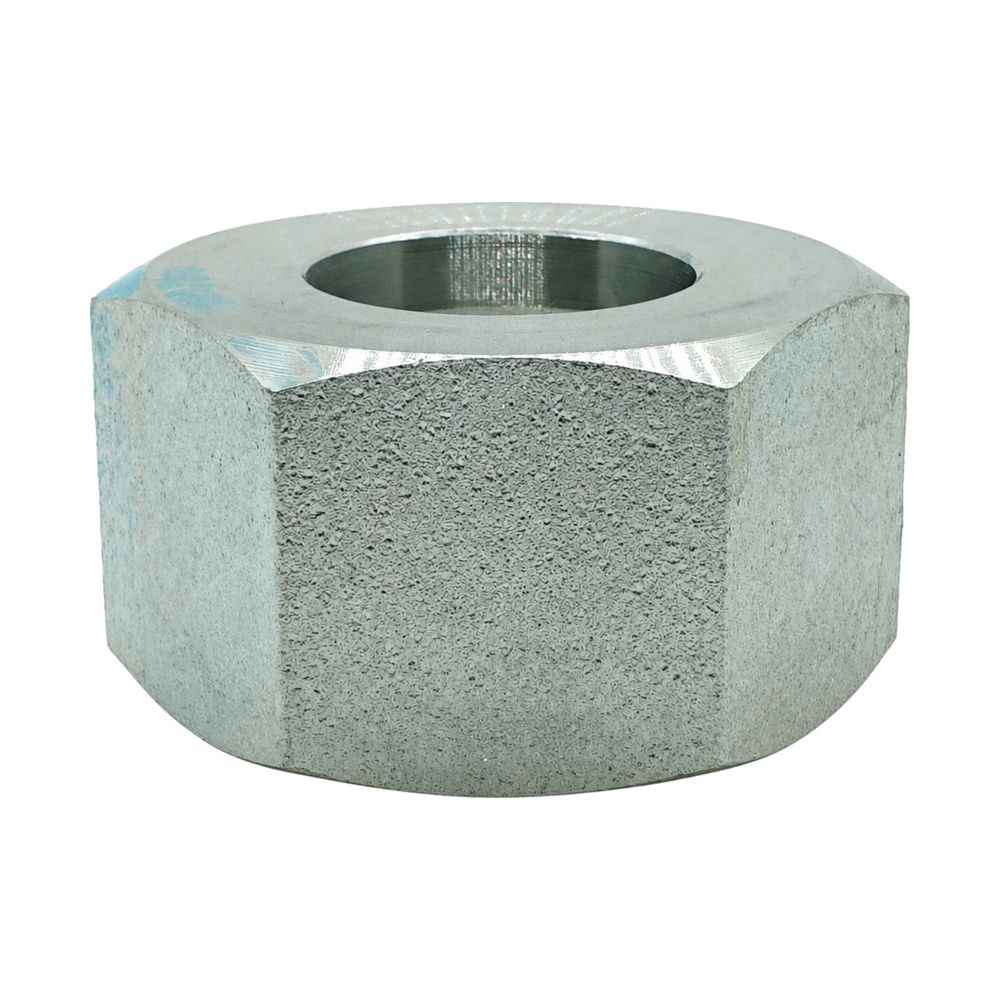

Metric Heavy (S) Tube Nuts

Replacement tube nuts for heavy series DIN 2353 metric tube assemblies. The nut that draws the cutting ring onto the 24° cone.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.

How to Choose

• This is a spare part, sold on its own so a damaged one does not mean replacing the whole assembly.
• Heavy (S) and light (L) nuts are different parts. Check the series on the assembly.
• The nut supplies the load. The ring and the cone do the sealing.

Technicians Advice

Replace the cutting ring at the same time as the nut. Reusing an old ring in a new nut is false economy, because the ring has already bitten and will not bite cleanly a second time.

Where You’ll Find It

• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.

Cross-Reference

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	F	L	S	Material	Finish
MHN-14	M14x1.5 (6S)	16.5mm	17mm	Mild steel	Plated finish
MHN-16	M16x1.5 (8S)	16.5mm	19mm	Mild steel	Plated finish
MHN-18	M18x1.5 (10S)	17.5mm	22mm	Mild steel	Plated finish
MHN-20	M20x1.5 (12S)	17.5mm	24mm	Mild steel	Plated finish
MHN-22	M22x1.5 (14S)	20.5mm	27mm	Mild steel	Plated finish
MHN-24	M24x1.5 (16S)	20.5mm	30mm	Mild steel	Plated finish
MHN-30	M30x2 (20S)	25mm	36mm	Mild steel	Plated finish
MHN-36	M36x2 (25S)	27mm	46mm	Mild steel	Plated finish
MHN-42	M42x2 (30S)	29mm	50mm	Mild steel	Plated finish
MHN-52	M52x2 (38S)	32.5mm	60mm	Mild steel	Plated finish

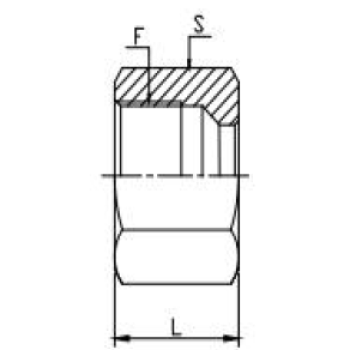

Key: L overall length, S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
