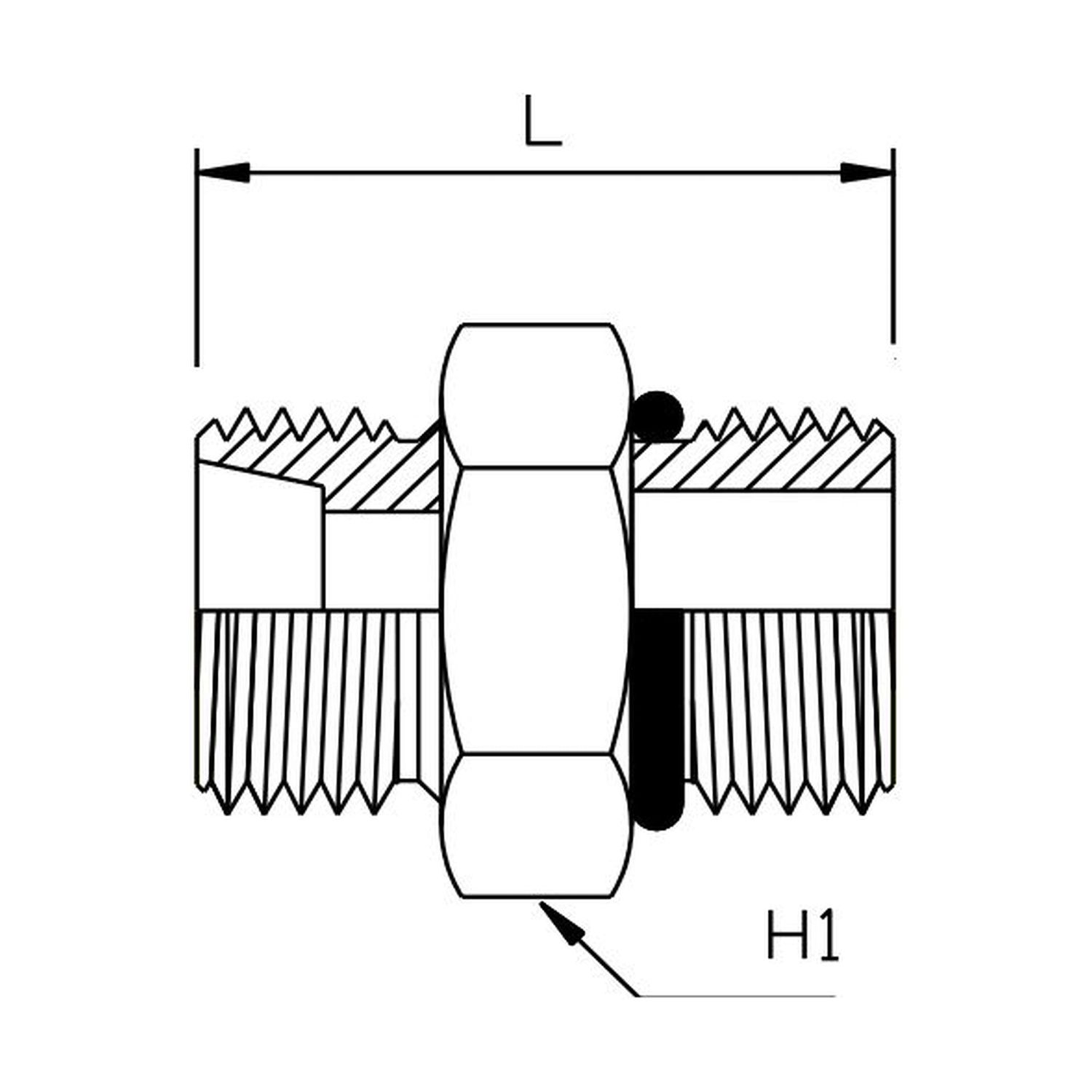

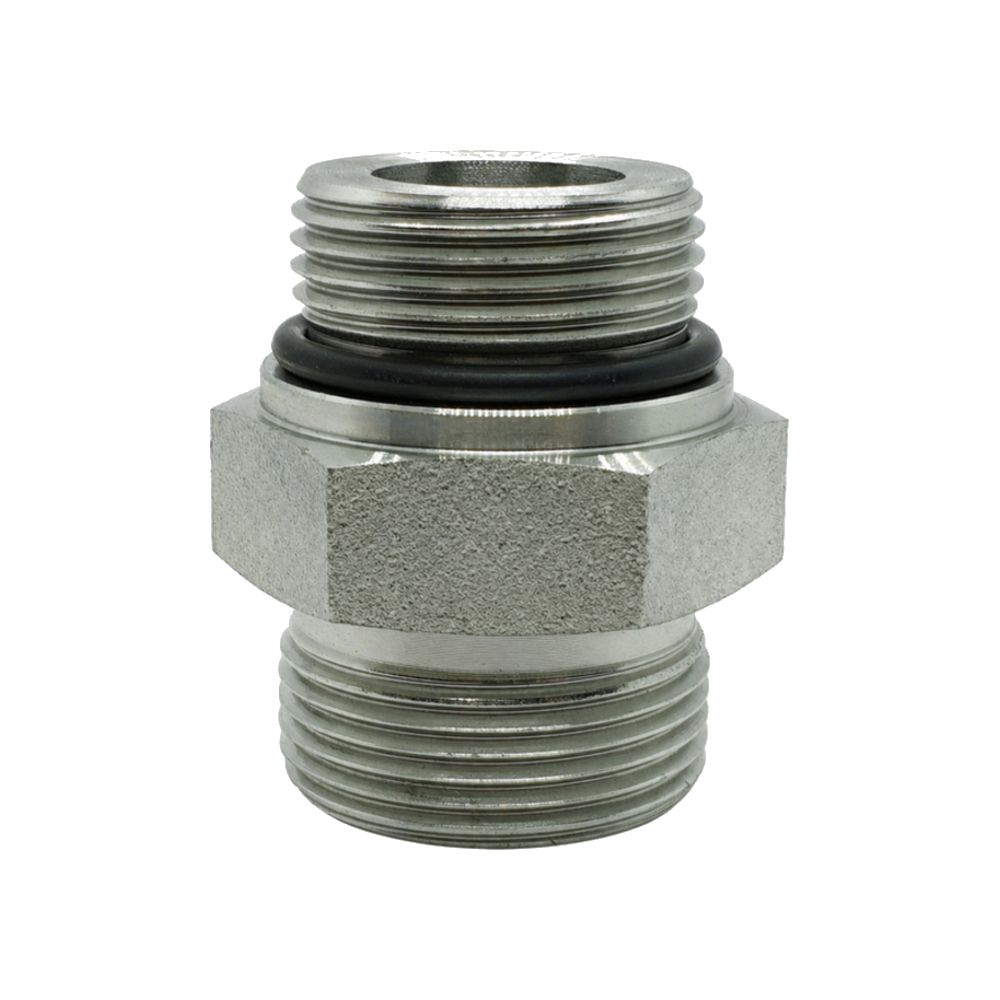

Metric Heavy (S) Male x UNO O-Ring Boss Male Straight Adaptor

Heavy series metric one end, SAE O-ring boss the other. The bridge between European tube work and the UNO ports on American pumps, motors and valve banks.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: 90 ° Hydraulic Adaptors How They Work and the Importance of O'Rings

Thread Standards

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. It seals on an O-ring squeezed against the port spotface, not on the thread.

How to Choose

• The UNO end seals on the O-ring at the port spotface. Check that face is clean and unmarked before you fit.
• The metric end runs a 24° cone and may need an O-ring captured in it. Look into the mating part with a torch.
• Neither end wants thread sealant. Tape on either thread here does nothing useful.

Technicians Advice

Take the UNO end down until the O-ring just touches the spotface, then give it the turn the spec calls for and stop. Going past that squeezes the ring out sideways, and the leak that follows looks like a thread problem when it is not.

Where You’ll Find It

• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.
• SAE O-Ring Boss Male (UNO/UNF) – Cylinder end caps, pump and valve bosses on US-built plant. Common on Australian-assembled cylinders too, where it is usually called UNO.

Cross-Reference

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. Also written ORB, SAE ORB or UNO. Thread form is UN/UNF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S	Material	Finish
MHM-UNM-1407	M14x1.5 (6S)	7/16" UNO	M14x1.5 (6S)	7/16" UNO	26mm	14mm	Mild steel	Plated finish
MHM-UNM-1409	M14x1.5 (6S)	9/16" UNO	M14x1.5 (6S)	9/16" UNO	29mm	19mm	Mild steel	Plated finish
MHM-UNM-1607	M16x1.5 (8S)	7/16" UNO	M16x1.5 (8S)	7/16" UNO	31mm	17mm	Mild steel	Plated finish
MHM-UNM-1609	M16x1.5 (8S)	9/16" UNO	M16x1.5 (8S)	9/16" UNO	31mm	19mm	Mild steel	Plated finish
MHM-UNM-1809	M18x1.5 (10S)	9/16" UNO	M18x1.5 (10S)	9/16" UNO	32mm	19mm	Mild steel	Plated finish
MHM-UNM-1812	M18x1.5 (10S)	3/4" UNO	M18x1.5 (10S)	3/4" UNO	36mm	22mm	Mild steel	Plated finish
MHM-UNM-2007	M20x1.5 (12S)	7/16" UNO	M20x1.5 (12S)	7/16" UNO	31mm	22mm	Mild steel	Plated finish
MHM-UNM-2009	M20x1.5 (12S)	9/16" UNO	M20x1.5 (12S)	9/16" UNO	32mm	22mm	Mild steel	Plated finish
MHM-UNM-2012	M20x1.5 (12S)	3/4" UNO	M20x1.5 (12S)	3/4" UNO	36mm	24mm	Mild steel	Plated finish
MHM-UNM-2014	M20x1.5 (12S)	7/8" UNO	M20x1.5 (12S)	7/8" UNO	38mm	27mm	Mild steel	Plated finish
MHM-UNM-2017	M20x1.5 (12S)	1.1/16" UNO	M20x1.5 (12S)	1.1/16" UNO	40.5mm	32mm	Mild steel	Plated finish
MHM-UNM-2212	M22x1.5 (14S)	3/4" UNO	M22x1.5 (14S)	3/4" UNO	35mm	24mm	Mild steel	Plated finish
MHM-UNM-2412	M24x1.5 (16S)	3/4" UNO	M24x1.5 (16S)	3/4" UNO	35mm	24mm	Mild steel	Plated finish
MHM-UNM-2414	M24x1.5 (16S)	7/8" UNO	M24x1.5 (16S)	7/8" UNO	40mm	27mm	Mild steel	Plated finish
MHM-UNM-2417	M24x1.5 (16S)	1.1/16" UNO	M24x1.5 (16S)	1.1/16" UNO	42mm	32mm	Mild steel	Plated finish
MHM-UNM-3012	M30x2 (20S)	3/4" UNO	M30x2 (20S)	3/4" UNO	42.5mm	32mm	Mild steel	Plated finish
MHM-UNM-3014	M30x2 (20S)	7/8" UNO	M30x2 (20S)	7/8" UNO	44mm	32mm	Mild steel	Plated finish
MHM-UNM-3017	M30x2 (20S)	1.1/16" UNO	M30x2 (20S)	1.1/16" UNO	46mm	32mm	Mild steel	Plated finish
MHM-UNM-3617	M36x2 (25S)	1.1/16" UNO	M36x2 (25S)	1.1/16" UNO	50mm	36mm	Mild steel	Plated finish
MHM-UNM-3621	M36x2 (25S)	1.5/16" UNO	M36x2 (25S)	1.5/16" UNO	51mm	41mm	Mild steel	Plated finish
MHM-UNM-4221	M42x2 (30S)	1.5/16" UNO	M42x2 (30S)	1.5/16" UNO	52mm	46mm	Mild steel	Plated finish
MHM-UNM-4226	M42x2 (30S)	1.5/8" UNO	M42x2 (30S)	1.5/8" UNO	52mm	50mm	Mild steel	Plated finish
MHM-UNM-5226	M52x2 (38S)	1.5/8" UNO	M52x2 (38S)	1.5/8" UNO	56.5mm	55mm	Mild steel	Plated finish
MHM-UNM-5230	M52x2 (38S)	1.7/8" UNO	M52x2 (38S)	1.7/8" UNO	57mm	55mm	Mild steel	Plated finish

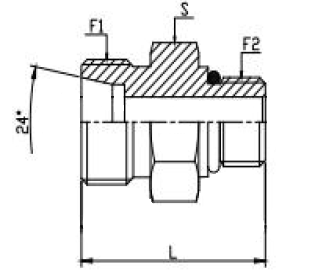

Key: L overall length, S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
